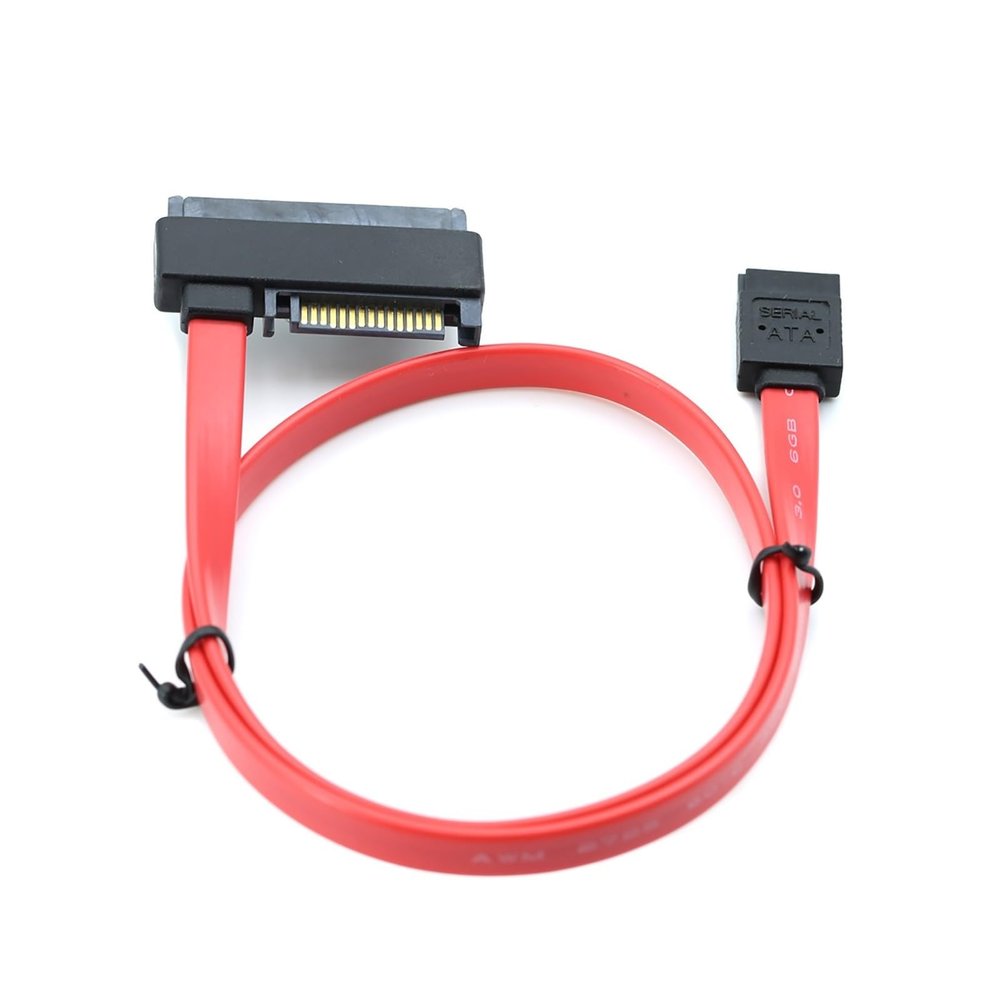

0.5M SFF-8482 to SATA Cable Hard Disk Connected to Motherboard SATA Port Adapter Cable 15PIN Power Port

Description

• Wire Size: 26AWG, Tinned Copper, OD: 0. 9*2.3,MM
• Lock to Mating Part: With Latch
• Plating: Au 15u' min over Ni 100u' min
• Compliance:
• Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

Product Description:SFF-8482 to SATA Cable Hard Disk Connected to Motherboard SATA Port Adapter Cable 15PIN Power Port
Series: SATA
Cable Length: 0.5M
Wire Size: 26AWG, Tinned Copper, OD: 0. 9*2.3,MM
Lock to Mating Part: With Latch
Plating: Au 15u' min over Ni 100u' min
Compliance:
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum
Unmating Force: 49 N maximum
Mating Force: 45 N maximum compatible with the SATA connector.
Unmating Force: 10 N maximum compatible with the SATA connector.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC compatible with the 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 ohm15%
2. Cable Absolute Impedance: 100 ohm10%
3. Cable Pair Matching:5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 6Ghz;
Product Compliance
RoHS2.0:Compliant
ChinaRoHS:Yes
REACH SVHC:Yes
Low-Halogen Status:Not Reviewed
The Product photo
Workshop photo
==========
Package : Yes
Model Number : RED CABLE-027
Type : SATA Cables
Certification : CE
