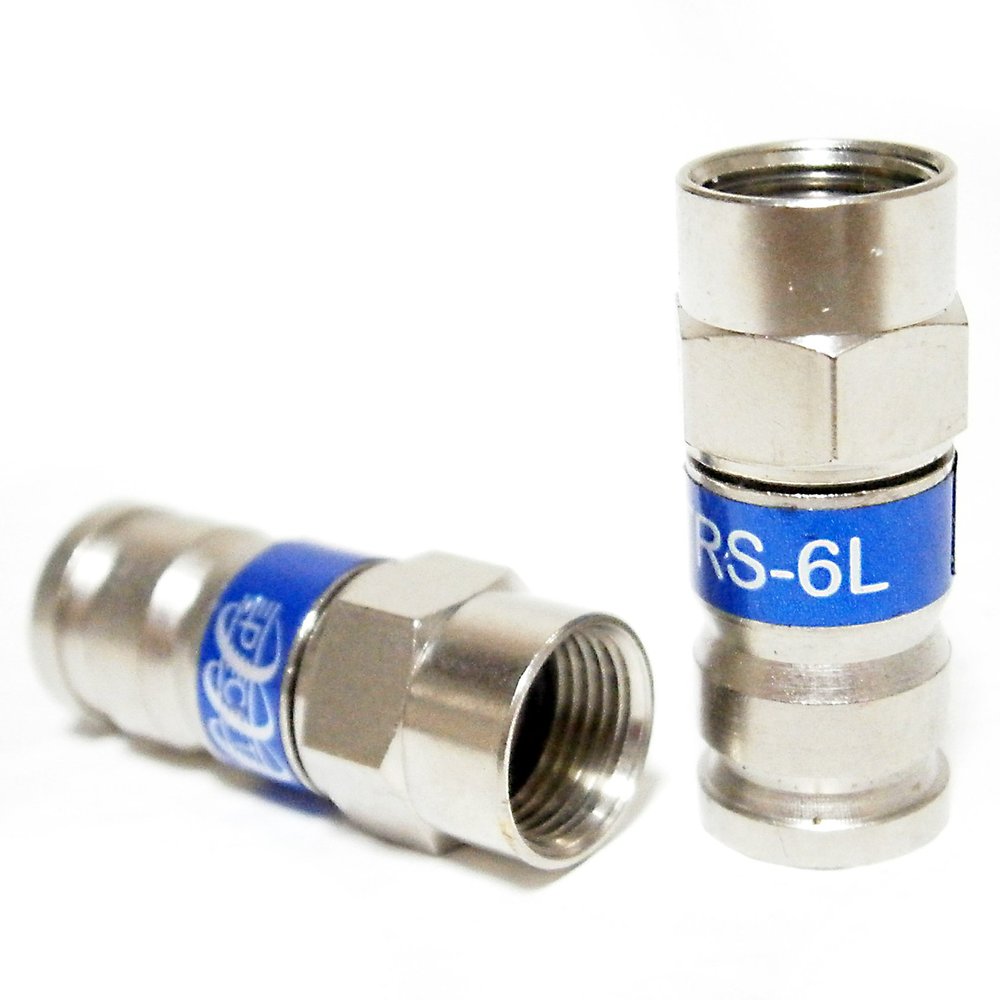

100 Pieces PCT-TRS-6LMG Universal RG-6 Coaxial Locking Compression Connector All Brass Coaxial Fitting 18mm Stroke Length

Description

• Continuous Ground - Improved ground contact both when tight and loose
• All Metal Design - 100% Brass Construction. Dual O-Ring Design - Delivers a superior barrier against moisture intrusion. Metal Compression Rings - Stay compressed and wont break down
• PCT-TRS-6LMG - RG6 Cable 60% through Quad-Shield
• Usage: HD Over the Air Antenna - DirecTV / Dish Network, and Other Satellite Usage Approve - Ham Radio, Short Wave Antenna Usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed Sensor
• Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL

PCT-TRS-6LMG universal compression connectors are technically advanced compression connectors incorporating unique dual compression ring technology which provides superior holding strength and excellent protection against moisture migration. The universal design allows it to be used on cables from 60% braid through quad-shield while maintaining excellent hold strength against the cable. Use with all-in-one universal rg59/rg6/bnc/rca coax compression snap-n-seal tool f compression connector - O-ring in connector face to provide a hermetically sealed interface - works with standard shield through quad-shield series 6 cable - conforms to industry standards. Features Continuous Ground - Improved ground contact both when tight and loose Enhanced Shielding - Improved shielding effectiveness when loose Torque Retaining - Built in lock washer keeps the connection tight Tested to ANSI/SCTE, ASTM and Telcordia (formerly Bellcore) Standards - The only coaxial connector that meets Telcordia's loosening torque specification All Metal Design - 100% Brass Construction Dual O-Ring Design - Delivers a superior barrier against moisture intrusion Metal Compression Rings - Stay compressed and wont break down General Specifications Bandwidth: 5Mhz to 3Ghz Impedance (Nominal): 75 Ohms Return Loss: > -30 dB to 3 GHz Insertion Loss: 0.2 dB at 3 GHz Loosened Condition: Continuous ground feature maintains the ground path even in a loosened state Cable Range: RG6 Cable 60% through Quad-Shield Cable Retention: >60lbs (27.21 kg), Ambient Temperature Physical Characteristics Length Before Compression: 1.12in (28.45mm) Construction Material: Nickel Plated Brass Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
