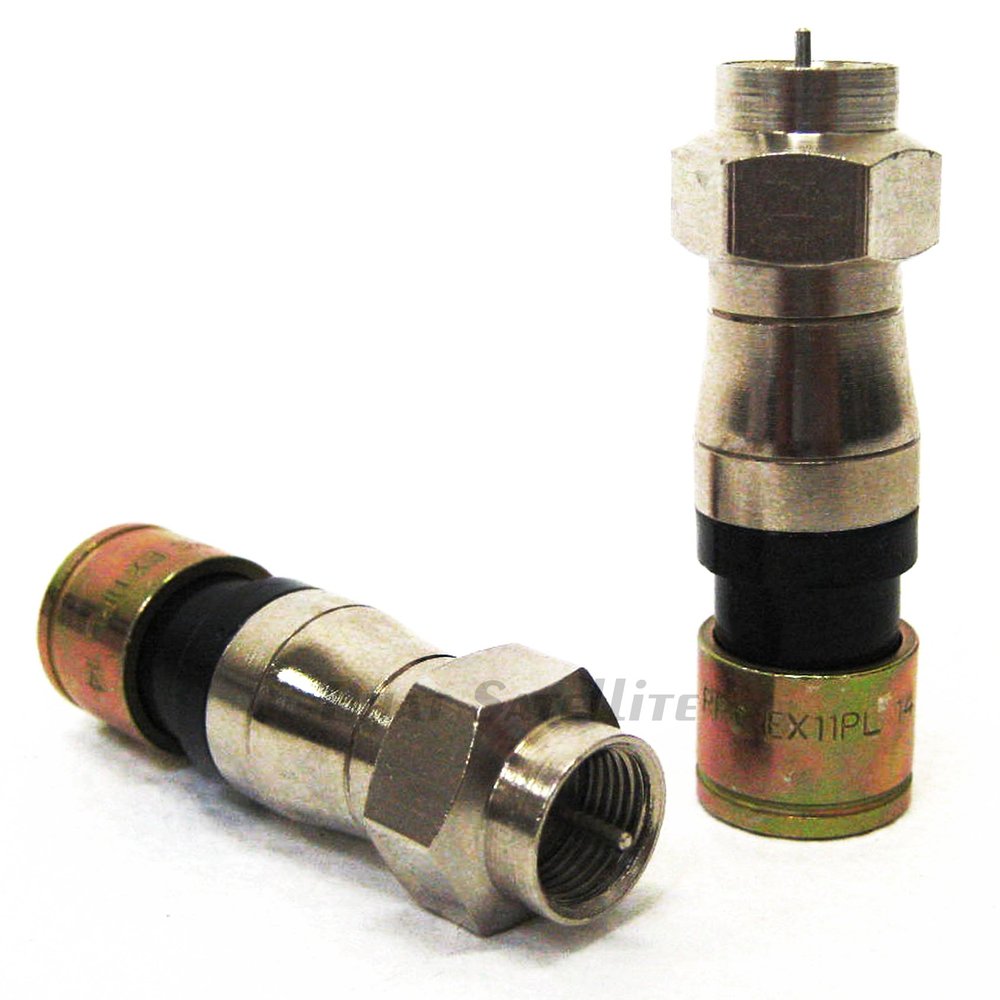

100 Pieces PPC Belden RG11 Plenum EX11PL Universal Compression Connectors

Description

• Plenum Compression Connector for RG11 Plenum Coaxial Cables
• Two Piece Design. Anti- Corrosion Compression Connector
• EX11PL - RG11 60% Quad Shield Plenum
• Usage: HD Over the Air Antenna - DirecTV / Dish Network, and Other Satellite Usage Approve - Ham Radio, Short Wave Antenna Usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed Sensor
• Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL

BELDEN PPC EX11PL Compression Connector for RG11 PLENUM Cable. Features Screw Post design allows for easy installation of cable (RG11 Connectors) Large tapered compression area creates a redundant moisture-tight interface, keeping moisture out EPDM o-ring seal Precision stamped four finger spring contact General Specification Bandwidth: 0 MHz to 3 GHz Impedance (nominal): 75 Ohms Cable Retention: 45 lbs (20.41kg) minimum Return Loss: Minimum -30 dB to 3 GHz Insertion Loss: Less than .10 dB to 3 GHz Operating Voltage: 90 V (at 60 Hz continuous AC Operating Temperature: -40F to +140F Cable Range: RG11 60% through Quad-Shield Plenum Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
