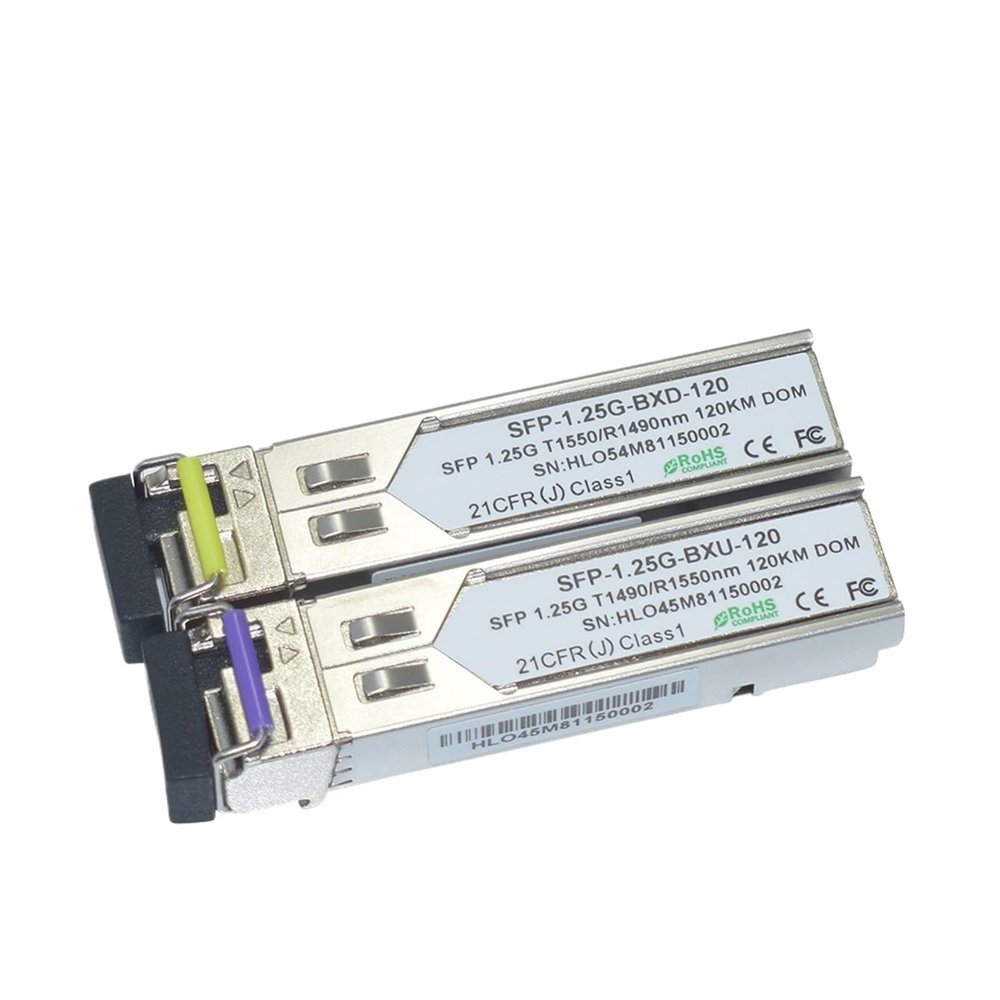

1000BASE-BX WDM Mini GBIC Transceiver 1.25G 1490nm/1550nm 120km SFP LC(1pair)

Description

• Fiber Optic Receivers
• 1000BASE-BX WDM Mini GBIC Transceiver 1.25G 1490nm/1550nm 120km SFP LC

Fiber Optic Receivers
1.25G 1490nm/1550nm 120km SFP LC Transceiver
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are compliant and lead-free.
It primarily enables bandwidth 1.25G optical links over single-mode fiber terminated with LC simplex connectors and can be used in commercial temperature environment for interoperability with TTL Logic Interface.
Features:
1.25Gbps Data transfer rate
Tx1490nm/Rx1550nm and Tx1550nm/Rx1490nm SFP
Distance up to 120km over SMF
Single 3.3V Power Supply and TTL Logic Interface
-Pluggable SFP
Simplex LC Only
Compliant with SFP
Digital Diagnostic Monitoring
Operating Case Temperature: 0-70 Temp
Applications:
Fiber Channel Links
WDM Application
Gigabit Ethernet
Other Optical Links
FTTX Application
Transceiver
155M/622M SFP LC/SC
155M SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
4/2/1G SFP LC/SC
4/2/1G SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
10G SFP
SFP+ 1270 20km
SFP+ 20km Tx1270nm/Rx1330nm LC
SFP+ 1330 20km
SFP+ 20km Tx1330nm/Rx1270nm LC
SFP+ 1270 40km
SFP+ 40km Tx1270nm/Rx1330nm LC
SFP+ 1330 40km
SFP+ 20km Tx1330nm/Rx1270nm LC
SFP+ 1270 60km
SFP+ 60km Tx1270nm/Rx1330nm LC
SFP+ 1330 60km
SFP+ 60km Tx1330nm/Rx1270nm LC
10G XFP
XFP 1270 20km
XFP 20km Tx1270nm/Rx1330nm LC
XFP 1330 20km
XFP 20km Tx1330nm/Rx1270nm LC
XFP 1270 40km
XFP 40km Tx1270nm/Rx1330nm LC
XFP 1330 40km
XFP 40km Tx1330nm/Rx1270nm LC
XFP 1270 60km
XFP 60km Tx1270nm/Rx1330nm LC
XFP 1330 60km
XFP 60km Tx1330nm/Rx1270nm LC
