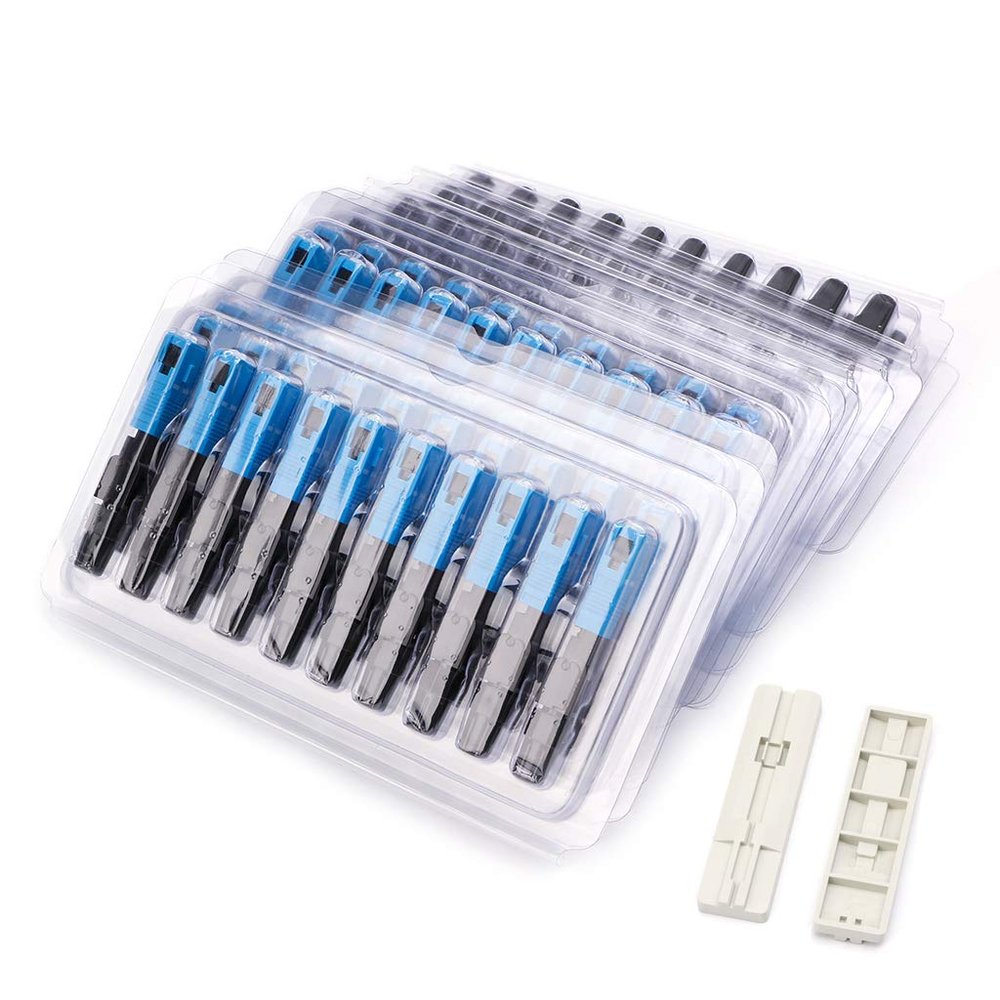

100PCS SC Optic Fiber Quick Cold FTTH SC Single Mode UPC Fast Connector by Keaiduoa

Description

• Model: SC / UPC-P.
• Temperature cycle: -40 ~ + 85 / 168h.
• Variation: 0.2db.

Description:

SC embedded fiber optic connector quick connector cold, using tricyclic class A ferrule insertion loss, operability / reuse / stable performance, low cost, fast installation and so on.

Specifications:
Product Name: embedded fiber optic connector quick connector cold
Model: SC / UPC-P
The average insertion loss: 0.5db
Return loss: 48db
Temperature cycle: -40 ~ + 85 / 168h
Variation: 0.2db
Rally: 35N
Torque: 25N
Repeat assembly: 15 times
Variation: 0.2db
Size:60x9mm/2.36x0.35"
Carrier-class standards: Each ferrule have been detected within the optical loss -0.5db, it has reached the level of telecommunications standards

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package included:
100PCSx SC Fiber Connector
