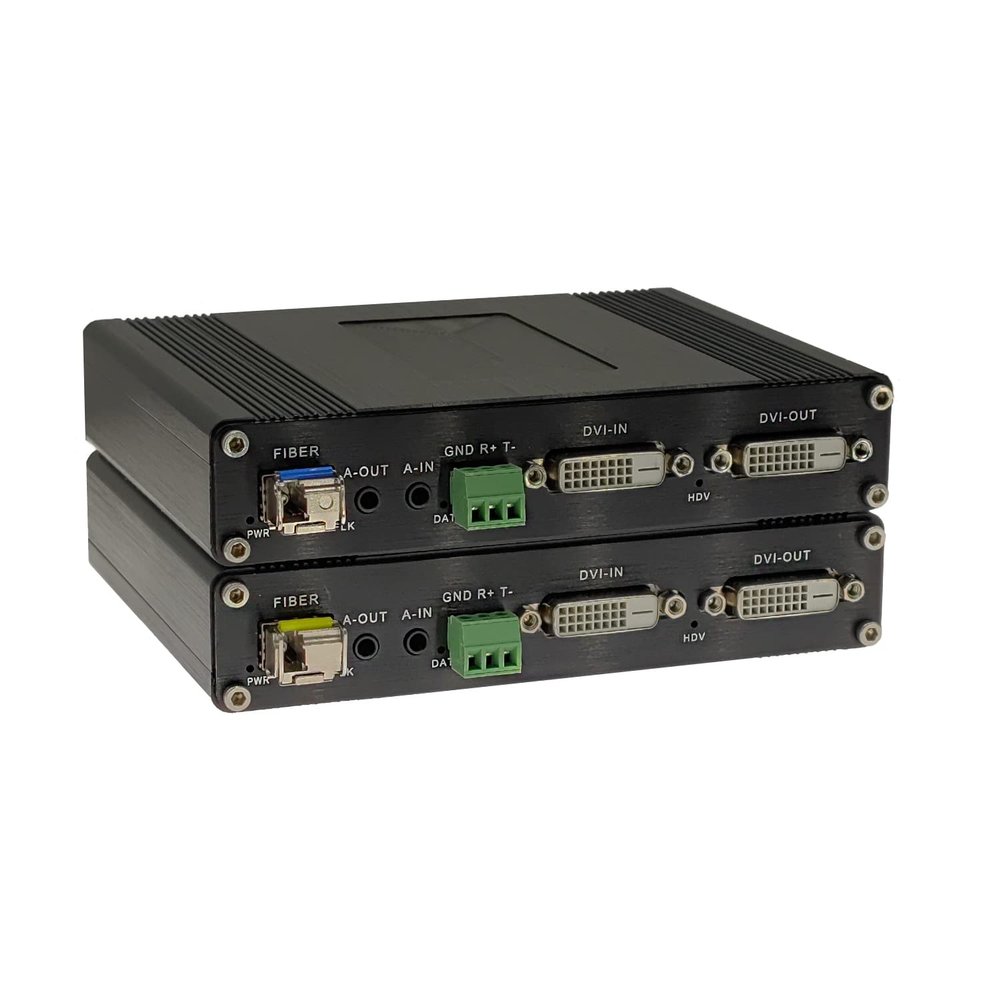

1080P Bidirectional DVI Fiber Extender, Uncompressed DVI Video Optical Transceiver Support RS232 GPIO and Bi-Di Stereo Audio, DVI to Fiber Converter DVI Over Fiber Single Mode 20km

Description

• Bi-Di Audio Video TransmissionBidirectional DVI video & 3.5mm external stereo audio on both transmitter and receiver. You can do real-time intercom with others on the other side far away
• Support Backward RS232 & GPIOBi-Di DVI fiber extender support serial RS232 signal, you can control the RS232 serial devices from remote side and support GPIO signal transmission
• Full HD 1080P Video ResolutionDVI optical transceiver supports resolution up to 1920*1200@60Hz, specially supports 1600*1200@60Hz. Compatible backwards with lower resolution
• Uncompressed Fiber TransmissionDVI fiber optical converter can transmit uncompressed signals up to 12.5 Miles with no latency over single fiber cable. And keep the original image quality
• Industrial Grade DesignThe full HD DVI fiber extender adopts harden aluminum material, can adapt harsh environment. And they are easy to install, plug and play, no need to set up

Features:
-Transmits DVI video signals and audio up to 20km bidirectionally
-Support video resolution up to 1920*1200 1080P@60Hz, specially support 1600*1200 @60Hz
-The DVI Fiber Extender support bidirectional transmission of serial RS232
-Support general-purpose input/output (GPIO) signal
-High compatibility, can auto-match source and display device
-Built-in automatic adjustment system, make the image smooth, clear and stable
-Built-in ESD protection system

Specifications:
Standards: DVI1.0 3D; HDCP1.2
Maximum Pixel Clock: 165MHz
Maximum Data Rate: 6.75Gbps
Connector: Female DVI-D
DTV Resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Audio Interface: 3.5MM external stereo audio
RS232: Baud rate self-adaptive, max 115200bps
Fiber Type: Single-mode 1310nm
Interface: SFP model LC connector
Power input: 5~12V DC
Power Consumption: <6W
Operating Temperature: -5~+70
Dimensions (LxWxH): 154*115*38mm/6.06*4.53*1.50inch
Package:
1 * Transmitter, To Video Source
1 * Receiver, To TV/Display
2 * Power Adapter
2 * SFP Module
1 * Bidirectional DVI Fiber extender Users Manual
