1080P USB Camera with Microphone Manual Zoom 2.8-12mm Webcam Variable Focus PC Camera H.264 Mini UVC USB2.0 USB with Camera for Computer Audio Video Close-up Camera Varifocal Lens Web Camera

Description

• 2MP 1080P H.264 manual focus industrial usb camera.
• 1/2.9 IMX323 sensor for high quality image.
• 0.01 Lux Low illumination - ideal for any lighting condition.
• With HD 2.8-12 mm varifocal CS lens
• With microphone for audio recording.
• With mini size metal black housing, mini size 41*41mm housing for embedded application, application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
• H.264/MJPEG/YUY2 dual video format optional
• High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
• Low power consumption - ideal for portable equipment.
• UVC compliant - support Windows, Linux, Android system with UVC

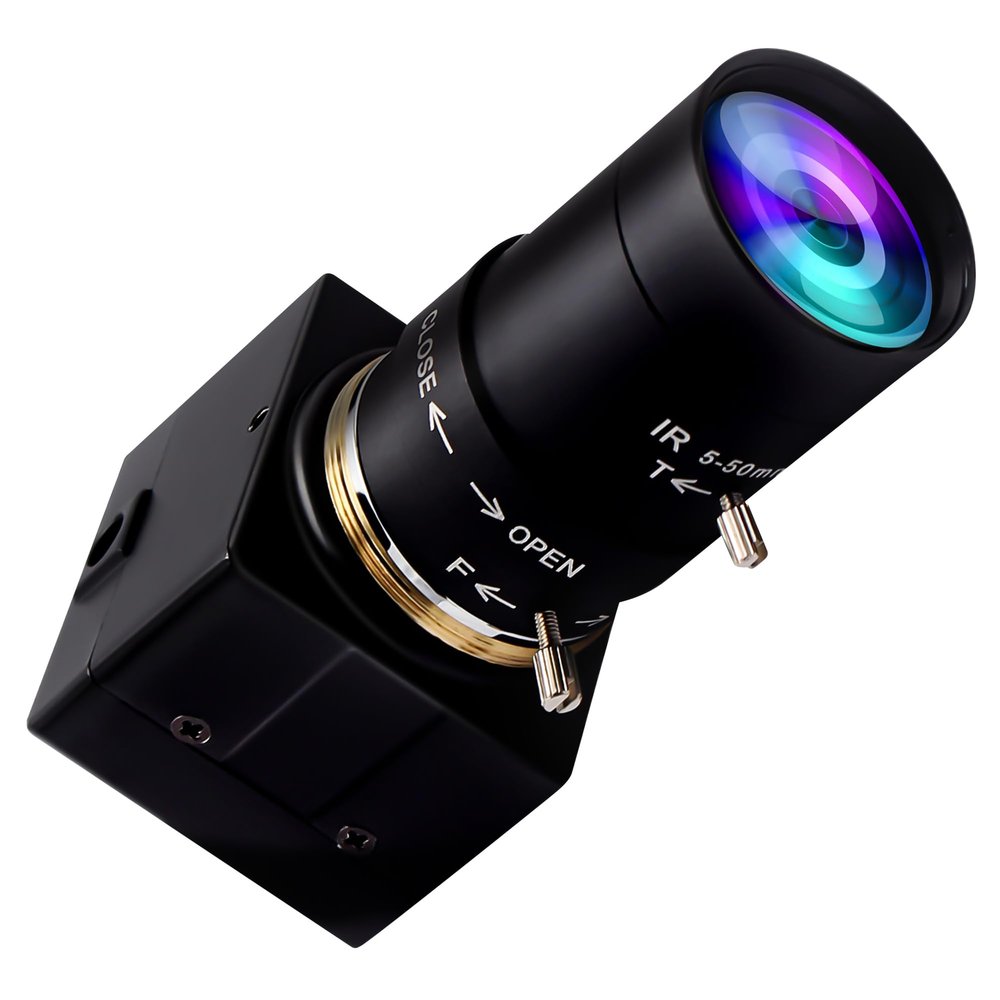

5-50mm Varifocal Lens Industrial USB Camera With Black Housing HD
1080P IMX322 Webcam

Specification
Model:USBFHD06H-SFV (5-50mm varifocal lens)
Sensor: IMX323
Lens Size: 1/2.9 inch
Pixel Size:12.8X11.6 mm
Image area:2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution:1080P
Compression format:H264 /MJPEG / YUV2YUYV
Resolution & frame
H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps
/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps
/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /
640X480@ 30fps /800X600@ 15 fps

S/N Ratio:42dB
Dynamic Range:86dB
Sensitivity: 5.0V/lux-sec@550nm
Mini illumination: 0. 01 lux
Shutter Type: Electronic rolling shutter / Frame exposure
Connecting Port type: USB2.0 High Speed
Free Drive Protocol: USB Video ClassUVC
Support OTG Protocol: USB2.0 OTG
AEC: Support
AEB: Support
AGC:Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue,
Sharpness,Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter: 5-50mm Varifocal lens
Digital audio: Need customize
LED board power connector: Support 2P-2.0mm socket
Power supply: USB BUS POWER 4P-2.0mm socket
Power supply: DC5V
Operating Voltage: 140mA~190mA
Working current: -1070
Working temperature: -2085
Cable: Standard 3M
Operating system request: Win7 Win8,Linux 2.6 or above, Android 4.0
or above
