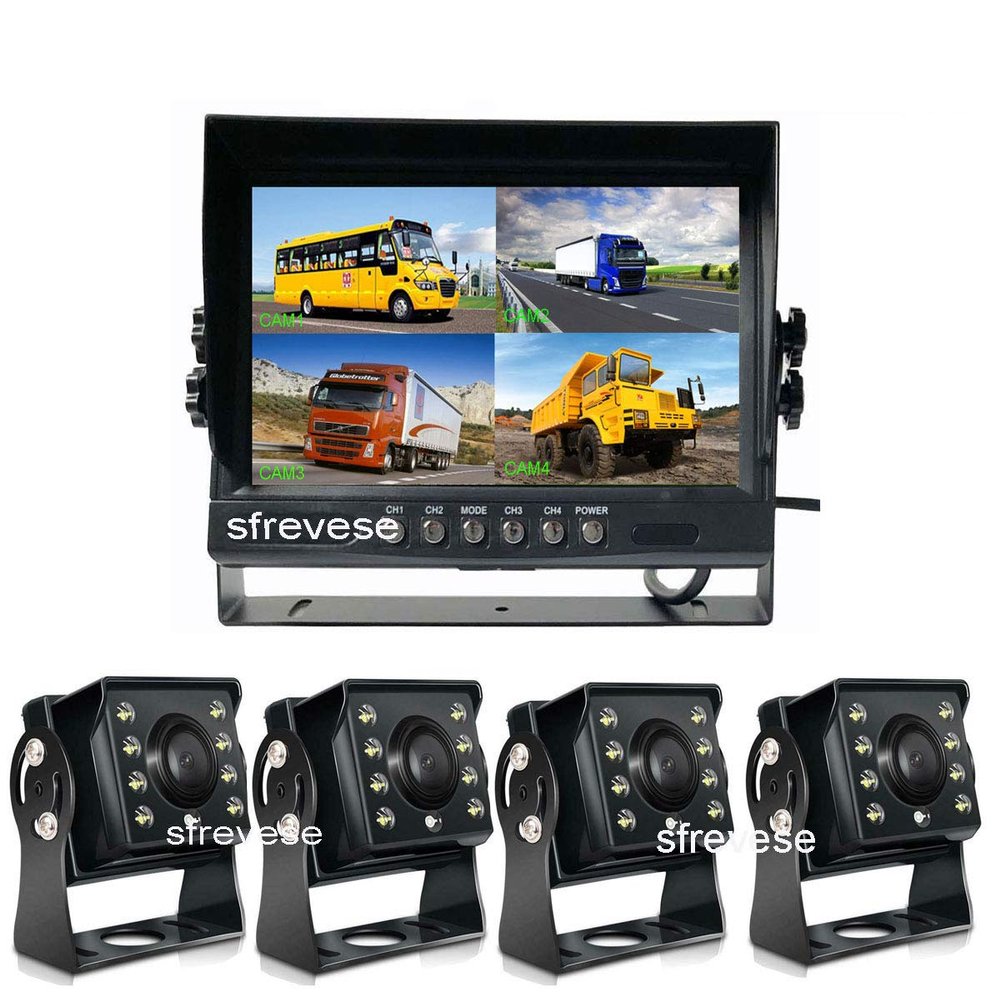

1080P Vehicle Backup Cameras Monitor DVR kit, 4X 4Pin AHD IR Car Reversing Backup Parking Camera+ 9" AHD IPS 1/2/3/4CH Split Monitor Car Rear View Kit for Bus Truck Motorhome Caravan Trailer Camper

Description

• 9 inch IPS monitor Build-in DVR 12V-24V,4 channels video inputs Quad Split Screen, full color display. It can display Full images/3 images/4 images,Grid Line Can be turn on/off,Image can be adjust for mirror or none mirror or flip with Upside Down
• IP69 Waterproof Rear Camera with 4 Pin Connector, 8 LED lights Night Vison view clearly at night, 100% Not Wash Out SHARP CCD Sensor HD Mirror image no Distance Lines Rear View Camera, and 2.1mm lens (170 horizontal wide view angle )
• 2 X 20M video Cable and 2 X 10M video Cable for 4pin Extension cable cable for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry and other heavy Duty
• There is 4x trigger wire to control each video input prioritycan be connect for reversing light,turn left light ,turn right light and forward,Four cameras can be viewed simultaneously from the Front Rear Side views in one display, Protect your driving safety to away from Danger
• Can easily adjust the camera installation angle in multi-level Headrest style installation, support screen rotation, easy to mount & easy to use

Only need to connect the monitor power wire with car electronics system:
Red and yellow wire to car Positive/Live,
Black wire to GND,
Green Blue Grey Brown wire to reversing or other Trigger+ (or No need to connect)
Insert the Memory to the card slot and press Mode button to record (SD card not include)
Simple to installation,Easy to use Easy to mount
Best for All Heavy Vehicle such as Box Truck Trailer Bus RV 5th Wheel Camper Pickup Boat School Bus Tractor Motorhome

9" CAR TFT LCD MONITOR

Resolution: 1024*600 Pixels
System:PAL&NTSC auto-switching
Power: DC 12V-24V
Consumption:7W
Video: 4 way video input
High Resolution with Split functions
can display (single video )or (4 video )at same time,
Build in Great Cyclic Record functions,
Supports Record 4 Channels Camera at the Same Time
Max support upto 128GB SD Memory(SD card not include)
Reversing Grid Lines Can be turn on or off
Image adjustable with Mirorr or None Mirorr
So you can set each camera for Front view or rear view
Image can be Flip With Upside Down also
Net Weight: Approx. 1000g
Lauguage:English,Chinese,

AHD 1080P IR Backup Camera
Image Sensor: 2053 AHD Mirror image
Tv System : PAL /NTCS
Waterproof grade:IP69K
Effective Pixels: 1920*1080 pixels 2.0MP
Sensing Area: 5.55umX5.55um
Scanning Syetem: 2:1interlace
Current Consumption: 80Ma
Power suply: DC12V-24V
Lens:6 Ply glass (175 degree)
F=2.0

Pacakge include:

1 x 9 Inch 4CH AHD Quad Split 4Pin Monitor
1 x Functional Cable
1 x Bracket
1 x Remote Controller
4 x 4Pin AHD Car camera 12V ~24V
2x 10m 4Pin cable
2x 20m 4Pin cable
