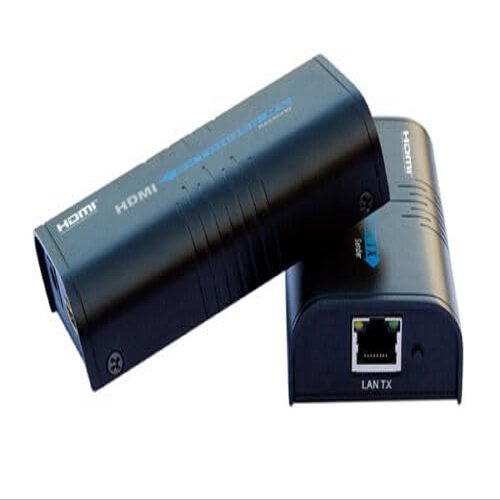

1080P@60Hz HDMI Extender Over IP Ethernet, Up to 394ft (120m), Direct 1 to 1 Extender Over CAT5e/6 or 1 to Many Over Gigabit Switch, Network LAN, HDMI Over IP,for HDTV

Description

• LKV373A 4.0 extender is upgraded extender transfers HDMI over a single Cat5 / Cat5e / Cat6 / Cat7 ethernet cable; It can transmit HDMI signal source from HD STB, DVD, PS3, HDMI display card to HD projector, DLP, LCD, LED and other audio-visual equipment. Extends by Router connection or LAN connection
• This HDMI extender can transfer videos up to 1080p (1920x1080) resolutionit extends the HDMI signal up to 390ft/120m with Cat5 or higher quality of cable following the standard of IEEE-568B
• Supported HDMI Format: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Switch & Router Compatible,The extender is "1 to many" design, which means that you can use it as a splitter by connecting multiple receivers to one transmitter in the local network via switcher or router
• The image is compressed with applying M-JPEG technology. The HDMI extender maintains great stability and reliability of the signal even when dealing with extended distance

This is new V4.0 version of LKV373A, it isn't Compatible with LKV373 V2.0 or LKV373A V3.0 .

Overview:
This is the complete solution to solve the image mosaic, color distortion, transmission failure and other problems when HDMI signal long distance transmitted. It's the professional signal transmission system which combines the function of HDMI signal conversion, reception and reduction and designed for high quality HDMI video signal long-range extension of display system project, such as big screen curtain wall advertising project, Industrial automatic control, Armamentarium, CCTV, Multimedia instruction and so on. With this item in hand,which will make your devices transmit 1080p HD video and perfect audio with long range up to 120 meters!

Features:
Plug and play, no need of setting
Extends HDMI up to 120 meters for 1080p over one CAT6
Follow the standard of I EEE-568B
Supports resolutions up to 1080P Full HD
Supports Ethernet bandwidth: 100M
HDCP compliant
Extends by Router connection or LAN connection, Cable length requirements are as follows:
CAT5 Maximum 80 meters between two Devices
CAT5e Maximum 100 meters between two Devices
CAT6 Maximum 120 meters between two Devices

More Specs :
Apply M-JPEG technology to process image compressing. The loss of image quality is very small; 480i 60Hz, 480p 60Hz, 576i 50Hz, 576p 50Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz Supported HDMI format: 480i 60Hz, 480p 60Hz, 576i 50Hz, 576p 50Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz HDCP compatible.
It can transmit HDMI 1080P signal to above 120M by using Cat6. It can transmit by Lan.
Suppoort Lan bandwidth: 100M Extend 120M longer by adding one more ethernet router
Power Supply: 5V/1A.

Package Included:
1 x V4.0 HDMI Extender Sender(Tx)
1 x V4.0 HDMI Extender Receiver(Rx)
2 x power supplier
1 x User manual
