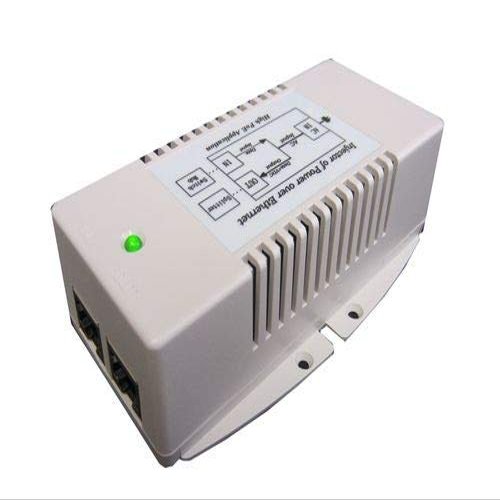

120/240VAC Input, 56V 35W Gigabit 802.3at PoE Inserter, PoE Pinout: 4,5V+; 7,8V-, UL1950, Shielded and Surge Protected, Includes Removeable US Power Cord

Description

• 120/240VAC Autoranging Input with Removeable Power Cord
• 56VDC 35W Regulated Gigabit 802.3at PoE out
• 802.3af, 802.3at PoE Compatible
• Compact size Floor / Desktop / Wall Mount
• Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems

The TP-POE Power over Ethernet Power Sources offered by Tycon Power are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). There are models available that support 802.3af and 802.3at as well as models that support Gigabit Ethernet. The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. It has power output up to 50W and 48-56V DC Output with load regulation within 5%.
