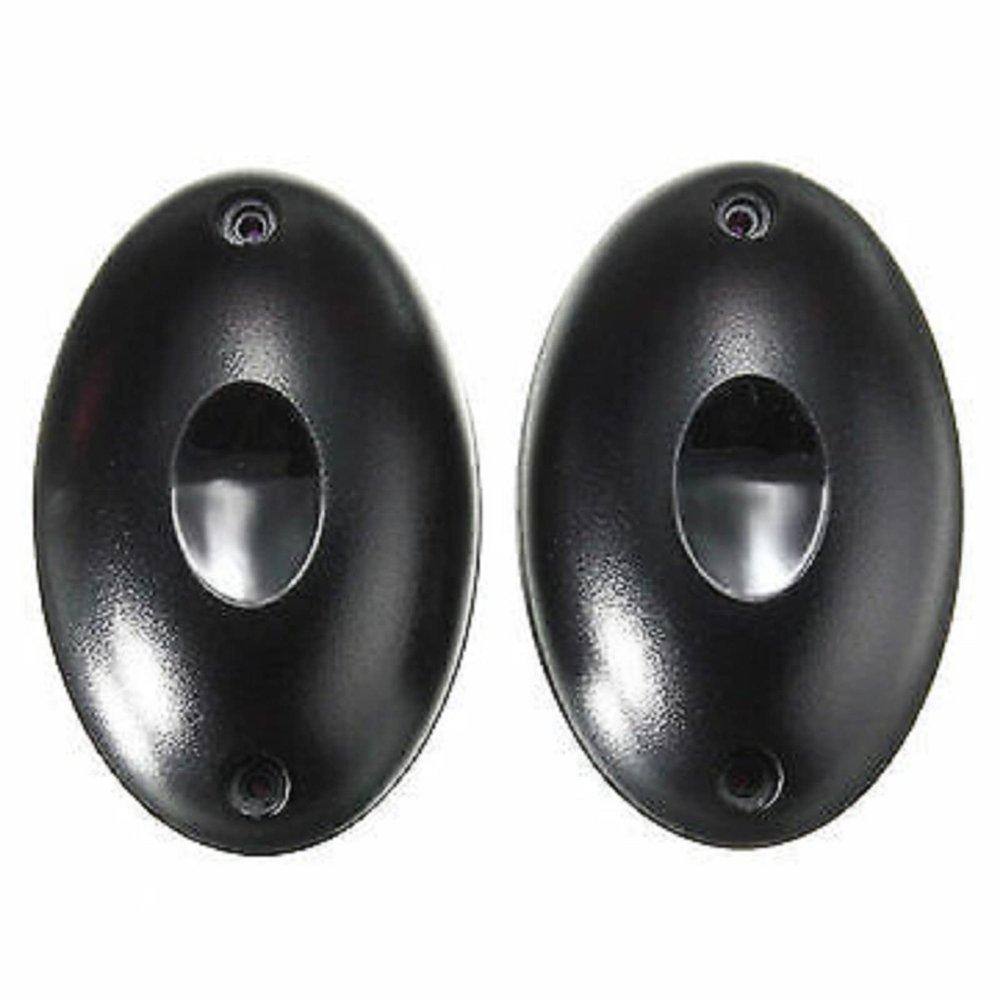

12~24V Home Security Single Beam Alarm Photoelectric Infrared Sensor Detector for Indoor and Outdoor Use

Description

• Single Beam Infrared Sensor with high levels of anti-RFI / EMI capability.
• Sealed design to anti-rain(fog), dust(worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).
• High-powe-r infrared receiver tube, low-powe-r process technology.
• Adjustable of beam interdiction period, to make it more flexible and adaptable.
• When interrupt, the relay output switch signal without voltage.

Specifications:
Power Supply: DC 12~24V
Work Current: 50MA
temperature: +50~ (-30)
Waterproof, UV proof
Size: 78x50x30mm
Detection distance: 20m
Trigger time: 50ms

Features:
Single Beam Infrared Sensor with high levels of anti-RFI / EMI capability.
Sealed design to anti-rain(fog), dust(worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).
High-powe-r infrared receiver tube, low-powe-r process technology.
Adjustable of beam interdiction period, to make it more flexible and adaptable.
When interrupt, the relay output switch signal without voltage.
Professional anti-jamming optical housing.

Package Included:
1 x Single Beam Infrared Sensor Transmitter
1 x Single Beam Infrared Sensor Receiver
1 Bag Install Accessories
