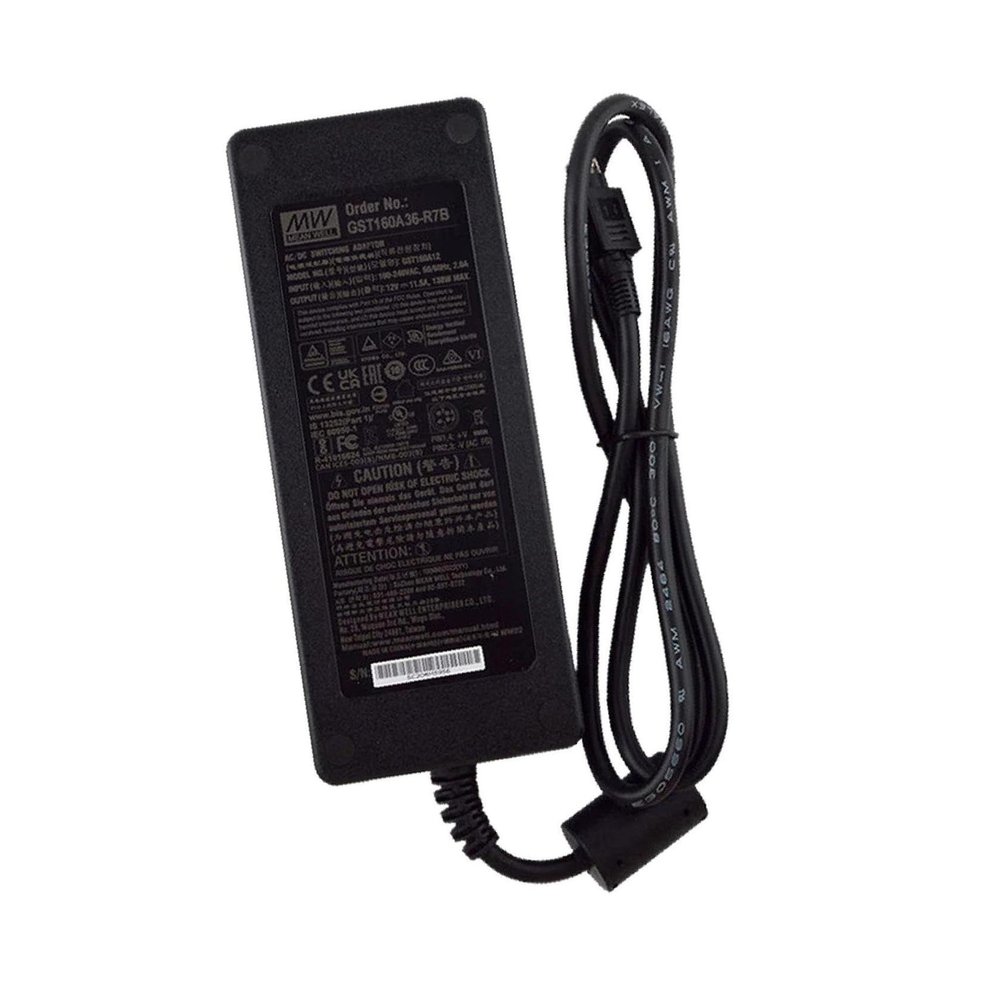

(12PACK) External Power Adaptor GST160A Series 138?160W (GST160A36-R7B)

Description

Features Universal AC input / Full range No load power consumption < 0.15W Energy Efficiency Level VI Meet EISA 2007 (Energy Independence and Security Act) NRCan compliant MEPS compliant 3 pole AC inlet IEC320-C14 Class I power (with earth pin) only Protections: Short circuit /Overload / Over voltage/Over temperature Fully enclosed plastic case LED indicator for power on Built-in active PFC function Fanless design 3 years warranty General Specification AC input voltage range 85~264VAC 120~370VDC AC inrush current (max.) Cold start, 120A at 230VAC Overload protection 105%~150% rated output voltage, hiccup mode, auto-recovery Over voltage protection 105%~135% rated output voltage Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT Working temperature -30~+70C (refer to output derating curve ) Length of output cable 120cm of UL2464, 18AWGx4C Dimension (LxWxH) 175x 72x 35 mm Standard DC plug R7B: Power DIN 4P with lock type
