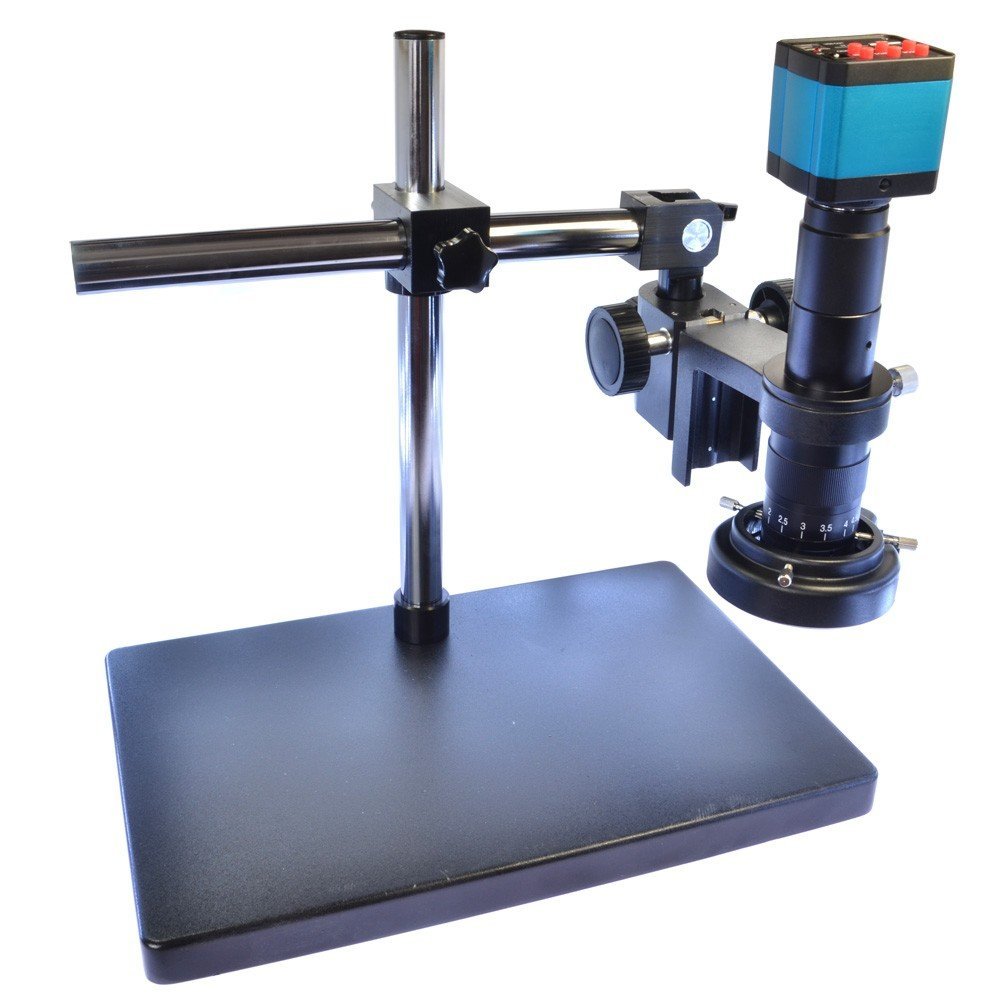

14MP HDMI HD USB Digital Industry Video Microscope Camera Set&Big Boom Stand Universal Bracket &180X C-Mount Lens & 60 LED Light

Description

• Stereo Table Stand Feature:Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed
• ool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.Steel
• ears on Focusing Holder.Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mmItem size: see the 4th pictureWeight: 3.3kgC-MOUNT Lens:Working distance: 100-150mmzoom c-mount Lens0.5X C-mount adapterzoom ratios: 6.5:1Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)Size: 180mm(L) * 50mm(DIA)Weight: 450g60 Bulbs Microscope LED Ring Light:60 bright white LED bulbs100,000 hours of lifeIntense and focused shadow-free illuminationThe
• rightness of 0-100%Adjustable,high brightnessVariable intensity controlPower input: 100-240V, 50-60HZSuit for the dia of the lens: 30mm-60mmNOTED!!!TF card storage is only for HDMI output. USB output will be storaged in PC.

Features:Model: Camera with HDMI USB2.0 two outputImage format: JPGImage resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)Video format: MOV(for TF card)Video recorder: 1280 *720 @ 30FPS (for TF Card)USB Video resolution: 1280 *720 @ 30FPSWhite Balance: AutoMorror: Left/right,Up/DownFreeze: SupportOSD: English/ChineseLine: different color,4 horizontal line , 4 vertical line,any positionsSpecification:Image sensor:14 megapixel Panasonic sensor 1/2.3 inchEffective pixel:14 megapixelPixel size:1.43x1.43umFrame rate:30fpsDefinition:FULL HDHousing:metalLens:CS for test, custom provideWhite balance:Auto/manualVideo format: AVIEncode: H.264 (High Profile)Digital magnification:5 times digital zoomBrightness control:Auto/manualColor:R/G/B adjustableFreeze:SupportOSD:SupportFilm and record:Support Cross cursor:Support multi-color, size adjustableTransverse and vertical line:Support multi-color, 4 pcs of transverse lines/vertical lines, moveabledifferent color,4 horizontal line , 4 vertical line,any positionsSNR:SupportTF card interface:Max 32GHDMI interface:Standard HDMI output (Type A)Lens:COSD: English/Chinese/French/Spanish/PortugueseUSB interface:Standard usb2.0 interface (Type B)
