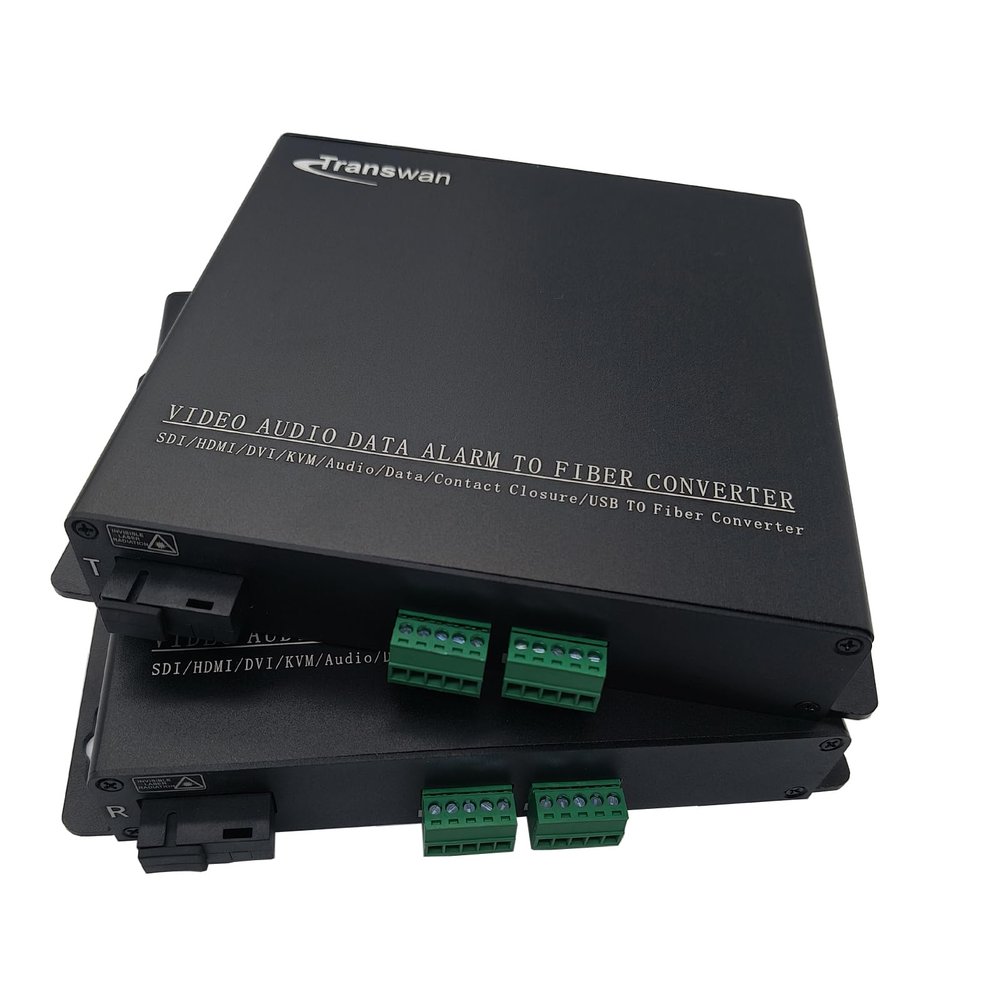

2 Ch 2 Way (Bi-Directional) Line- Level Balanced Audio Over Fiber Extender to 10 Kilometers, Supports 16-Bit Broadcast Quality Audio, with Standard Green Terminal Leads

Description

• 2 Ch 2 Way (Bi-directional) line- level balanced audio over 20Km on SMF or 500 meters on MMF
• Supports 16-bit digitally encoded broadcast quality audio
• Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. Easy stand-alone or rack-mount installation.
• LED indicators are provided to instantly monitor the system operating status.
• Typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc

BY-Audio-344 is 2 Channels 2 Way Line-Level Balanced Audio Fiber Extender to 20 Km SM Fiber or 500 Meters MM Fiber with Phoenix Style Standard terminal leads, it includes transmitter & receiver

Specs
Optical
Wavelength: 1310/1550nm
Output Power: -14~ -8dBm
Supported optic fiber: 50/125u multi-mode62.5/125u multi-mode9/125u single-mode
Rx sensitivity: -30dBm
Optical connector: 1 x SC (default), 1 x FC, 1 x ST, 1 x LC (optional)
Distance: 0~500 Meters (MMF) / 0~10 Kilometres(SMF)
Balanced Audio Number of Channels: 2~4 Ch Up, 2~4 Ch Down
Connector: Standard Phoenix Style Terminal Leads
Input / Output Impedance: 10K Ohm
Input capacitance LINE inputs: 10 pF
Max input/output voltage: +4 dBu (1.228 Volts). if over the limit, the audio distortion will appear.
Frequency Response: 20 Hz24kHz @3dB
Sample Rates From: 48kHz
SNR: > 80dB

Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power: AC 90V~240V
Power Consumption: 100,000 hours

Application:
Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc
Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Supply Adapters with US/EU/UK/AU plug.
4. 1 x Manual
