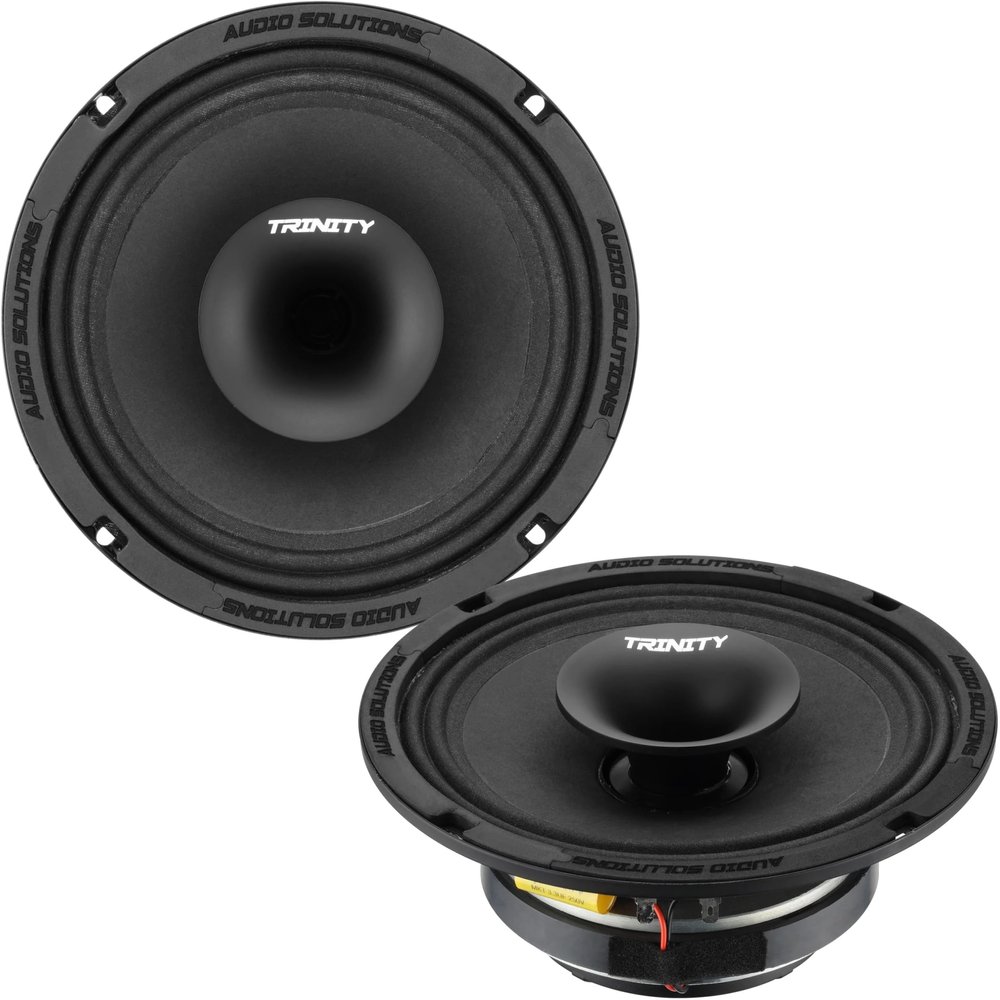

2 Trinity Audio TA-CS84 8" High Output Pro Audio Coaxial Speakers with Compression Driven Horn Tweeters

Description

• The long awaited arrival of the Trinity Pro Audio lineup is fastly approaching! The all new CS Series combines the ultra high sensitivity of a generic pro audio midrange speaker with the clarified acoustic authority of an excessively optimized compression horn tweeter!
• With a workable slim-lined design, the CS84 pro audio coaxial speaker fits in spaces where many other bulky 8" speakers may not. And with a customary 4 ohm impedance, they work with almost any musical application.

General Specifications Nominal Diameter: 8" / 203.2 mm Nominal Impedance: 4 Ohms RMS Power Handling: 200W Maximum Power Handling: 400W Sensitivity (1W/1m): 93 dB Frequency Response: 108 Hz 19 kHz Recommended High Pass Crossover: 108 Hz Number of Ways: 2-way coaxial Pair or Single: Single Grill Included: Yes Woofer Specifications Voice Coil Diameter: 2" / 50.8 mm Voice Coil Former Material: KSV Winding Material: CCAW (Copper-Clad Aluminum Wire) Cone Material: Paper Surround Material: Cloth Basket Material: Steel Basket Finish: Gloss Black Magnet Material: Ferrite Magnet Weight: 29.5 oz Speaker Measurements Overall Diameter (Without Grill): 8.2" / 209 mm Overall Diameter (With Grill): 8.6" / 219 mm Overall Depth (Without Grill): 3.4" / 86 mm Overall Depth (With Grill): 4" / 104 mm Front Mount Baffle Cutout: 7.16" / 182 mm Mounting Depth: 3.15" / 80 mm Motor Diameter: 5.27" / 134 mm Thiele & Small Parameters Vas: 7.42 L / 0.262 ft Xmax: 2 mm Fs (Resonant Frequency): 108 Hz Qms: 6.418 Qes: 0.759 Qts: 0.704 Mms: 18.575 g Cms: 0.111 mm/N BL (Force Factor): 7.206 Le (Inductance): 19.20 mH Sd (Cone Area): 216.424 cm Re (DC Resistance): 3.2 Ohms Mmd: 16.744 g Driver Specifications Voice Coil Diameter: 1" / 25.4 mm Voice Coil Former Material: Kapton Winding Material: CCAW Diaphragm Material: Titanium Magnet Material: Neodymium Horn Diameter: 3.15" / 80 mm
