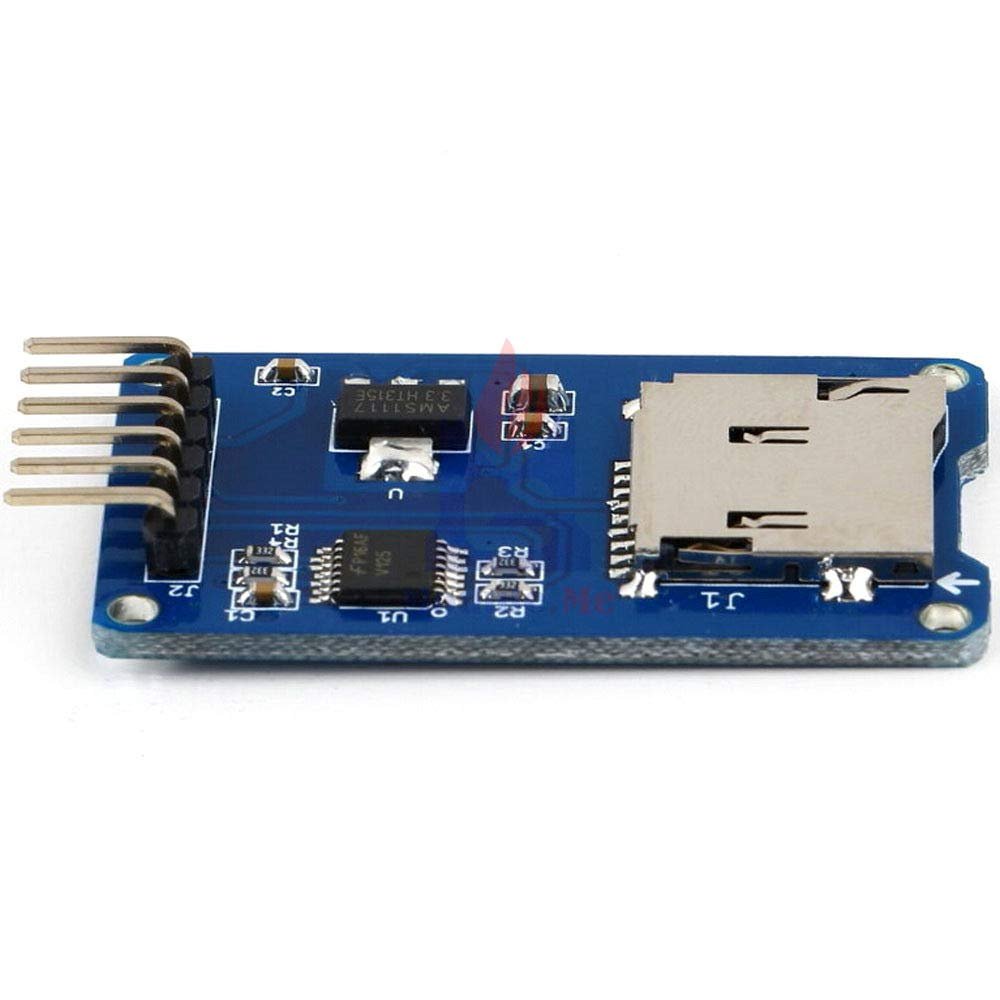

2PCS Micro SD TF Card Memory Shield Module SPI Interface for Ardiuno Micro SD Storage Expansion Board Support Micro SD & SDHC

Description

We will test it before shipment. Reference Weight:0.017kg (0.04lb.) Features: Support Micro SD Card, Micro SDHC card (high-speed card) The level conversion circuit board that can interface level is 5V or 3.3V Communication interface is a standard SPI interface Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin; 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply; Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal; Micro SD card connector: yes since the bomb deck for easy card insertion and removal. Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination; Specifications: Power supply:4.5V - 5.5V, 3.3V voltage regulator circuit board Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm Control Interface: GND, VCC, MISO, MOSI, SCK, CS Size:45 x 28mm Packing List: 2 PCS Micro SD Stroage Board
