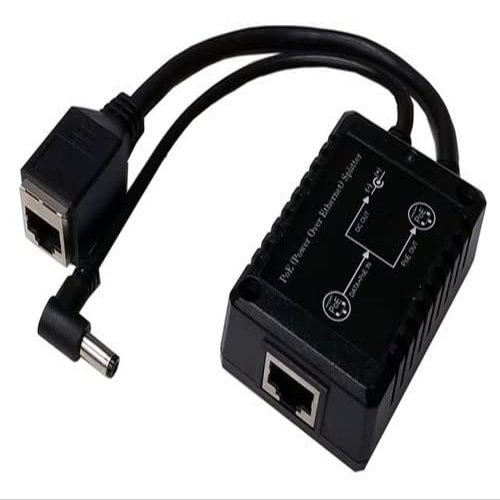

36-60VDC 802.3af/at POE Input, 48V .3A PoE and 24VDC .5A, 15W Total Output, POE Splitter/Voltage Converter, -25 to +50C, 5.5/2.5/2.1mm DC Barrel, 6" Cable, 10/100, RJ45 Output Socket

Description

• Dual Output: 48V Passive PoE and 48V, 24V or 12VDC Output
• Converts an Active PoE Input to a DC output
• Output Power Up To 15W
• Short Circuit, Over Current Protection
• Total Max Output Power 15W

The POE-MSPLT-4824P-F is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 24VDC outputs concurrently so two separate devices can be powered. The 24VDC output is provided on a standard 5.5mm/2.5mm barrel connector and the Data/PoE output is provided on standard female RJ45 network connector, each on a dedicated 6 cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
