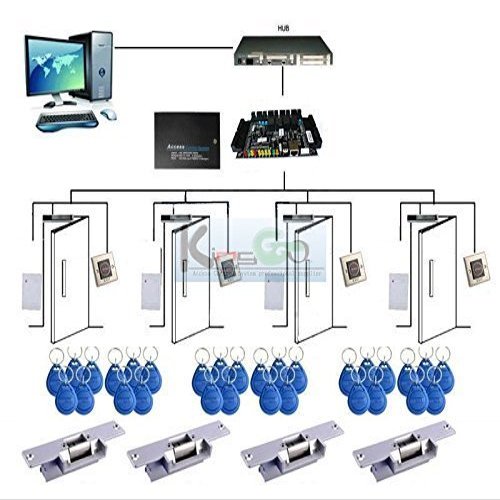

4-Door Control Kit with Reader + Switch + Power Unit/Key Fob + Electric Strikes Lock

Description

Packing:
1 PC FOUR-DOOR Controller;
4 PCs EM RFID Proximity Readers;
4 PCs Door Infrard Exit Button;
100 PCs RFID Key Fobs;
4 PCs NO Electric Strike ( If power failure, Keep Locked, If you need NC type lock, please tell us);
1 PC Metal power supply Box(also it's cabinet/Enclosure for the controller,please let me know you need 110V or 220V);
RFID card reader
Interface: 26 bits wiegand
.Maximum Cable Distance to Controller: 100m
.Type of Cable: 8 wires shielded cable, 22 AWG
.Operating Voltage Range: 9 - 16 VDC
.Reader Consumption: Standby: 85mA, Read: 100mA
.Operating Temperature: -10 to 60 degree
.Dimension: 115 x 75 x 15mm/4.53 x 2.95 x 0.59in
Switch :
Input voltage: DC 12V
Working temperature: -20 to 50 Celsius degree (-4 to 122 Fahrenheit degree)
Response range: within 10cm
LED indication: sensor
standby: blue LED on,
visitors approaching: red LED
on Item size: 8.6 * 8.6 * 3.9cm / 3.3 * 3.3 * 1.5in
Item weight: 70g / 2.4oz
RFID Cars/Keyfobs:
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it.
Electric Strike Door Lock:
Material: Stainless Steel.
Testing to 1000000 cycles.
NO (open when powered) Fail Secure
Suitable For: Wooden Door, Metal Door, Fireproof Door.
Voltage: DC 12V
Current: 200mA
Holding Stength: 500kg
Opening Mode: 90 degree swinging door
Dimension: 149 (L) x 27 (W) x 34 (H)
Power Supply Box
- Input Power :AC110~240V ACplease let me know you need 110V or 220V
- Output Power : Standard 12VDC,3A
- Material: Metal case cabinet
