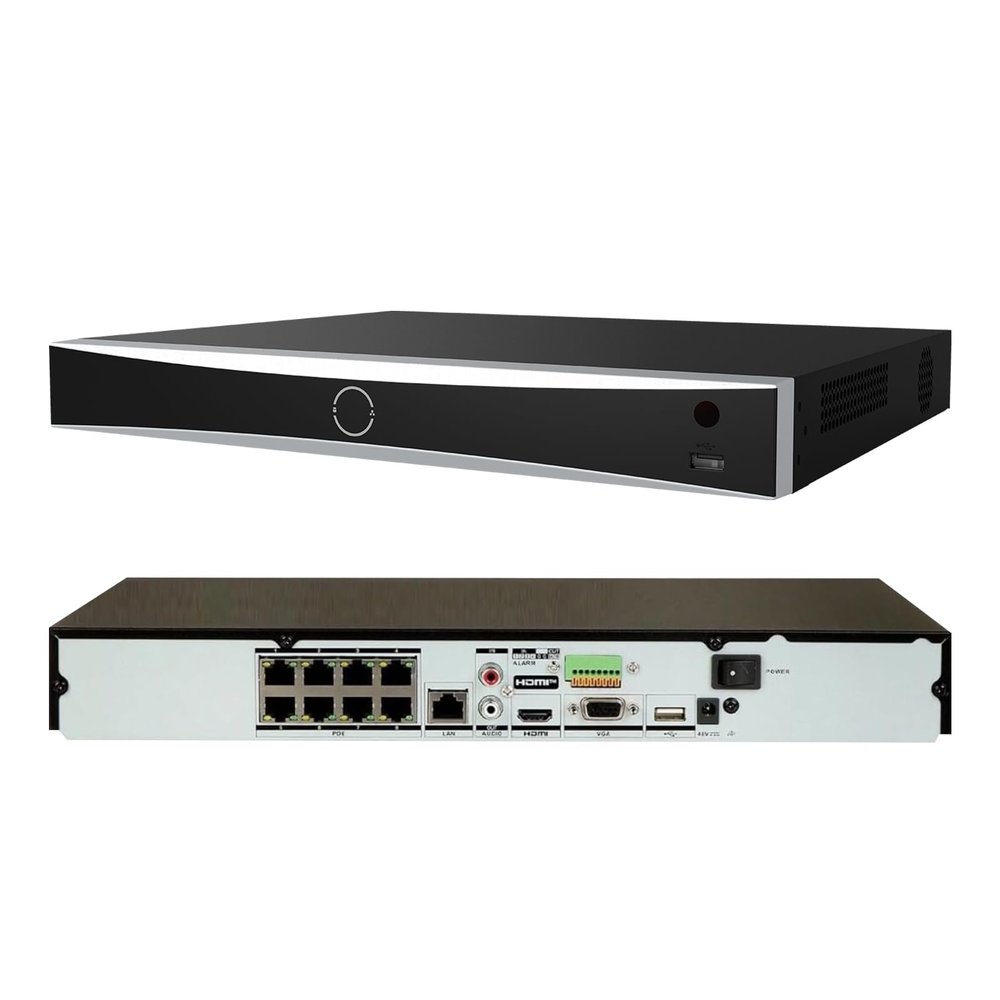

4K 8 Channel PoE NVR DS-7608NXI-K2/8P Network Video Recorder, AcuSence, Plug & Play with Power-Over-Ethernet, Work with 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p IP Camera, International Egalish Version

Description

• All channels support Motion Detection 2.0 | 2-ch video analysis for human and vehicle recognition to reduce false alarm | search for the selected area in the video, and playback to improve the playback efficiency
• Support H.265+/H.265/H.264+/H.264 video formats | H.265+ compression effectively reduces the storage space by up to 75% | Adopt stream over TLS technology which provides more secure stream transmission service
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity | Up to 80 Mbps incoming bandwidth | Provide independent HDMI and VGA outputs | HDMI video output at up to 4K resolution
• Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD, HDD not include) | 8-ch synchronous playback | Adopt Acu/sense technology to minimize manual effort and security costs
• 8 independent PoE network interfaces | 1 self-adaptive 10/100/1000 Mbps Ethernet interface | Requires a Hardwired Ethernet Connection Directly to Your Router to Operate | Support Hik-Connect for easy network management
• International English version | Support Firmware Upgrade | only provided by the seller for password reset or technical support | Please email Seller

Intelligent Analytics
A/I By Device:Facial recognition, perimeter protection, motion detection 2.0
A/I By Camera:Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection And Analytics:Face picture comparison, human face capture, face picture search
Face Picture Library:Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture 4 MB, total capacity 1 GB)
Facial Detection And Analytics Performance:1-ch, 8 MP
Face Picture Comparison:4-ch
Motion Detection 2.0
By Device:All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera:All channels
Perimeter Protection
By Device:2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera:All channels
Video And Audio
IP Video Input:8-ch
Incoming Bandwidth:80 Mbps
Outgoing Bandwidth:160 Mbps
HDMI Output:1-ch, 4K (3840 2160)/30 Hz, 2K (2560 1440)/60 Hz, 1920 1080/60 Hz, 1600 1200/60 Hz, 1280 1024/60 Hz, 1280 720/60 Hz, 1024 768/60 Hz
VGA Output:1-ch, 1920 1080/60 Hz, 1280 1024/60 Hz, 1280 720/60 Hz
Video Output Mode:HDMI/VGA independent output
CVBS Output:N/A
Audio Output:1-ch, RCA (2.0 Vp-p, 1 K, using the audio input)
Two-Way Talk:1-ch, RCA (Linear, 1 K)
Decoding
Decoding Format:H.265/H.265+/H.264+/H.264
Recording Resolution:12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback:8-ch
Decoding Capability:AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/7-ch@1080p (30 fps)
Smooth Playback (HC) ON & AI OFF: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)
Stream Type:Video, Video & Audio
Audio Compression:G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection:128
API:ON/VIF (profile S/G); SDK; ISAPI
Compatible Browser:IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol:TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network Interface:1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface:8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: 80 W
Standard:IEEE 802.3af/at
Auxiliary Interface
SATA:2 SATA interfaces
Capacity:Up to 16 TB capacity for each HDD
USB Interface:Front panel: 1 USB 2.0; Rear panel: 1 USB 2.0
Alarm In/Out:4/1
General
Power Supply:48 VDC, 2.5 A
Consumption: 15 W (without HDD, and PoE off)
Working Temperature:-10 C to 55 C (14 F to 131 F)
Working Humidity:10% to 90%
Dimension (W D H):385 mm 315 mm 52 mm (15.2" 12.4" 2.0"); 3 kg (without HDD, 6.6 lb.)
