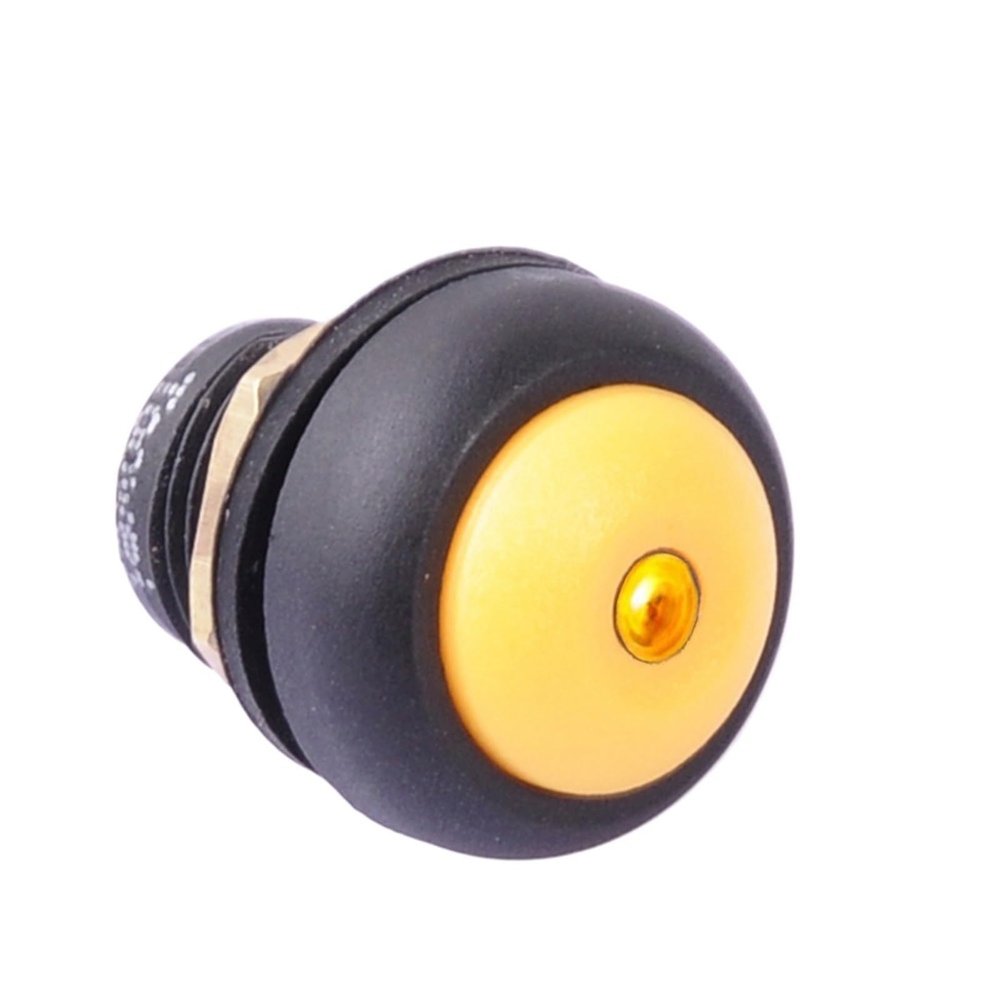

5pcs 12mm Black Body Platic Switch Power Symbol LED Illumination Momentary Reset Fixation Self Locking Latching Waterproof Switch(Yellow,Latching_LED Voltage 12V)

Description

• Switches
• 5pcs 12mm Black Body Platic Switch Power Symbol LED Illumination Momentary Reset Fixation Self Locking Latching Waterproof Switch

Switches
12mm IP67 LED Water Switch
A4126 series waterproof push button switch , protection degree IP67 ,installation size is 12mm.
According to the material , it has metal push button switch and plastic push button switch .
All the switches has self-locking and momentary two different kinds . If equip with LED light , colour can be customised based on the customer's request .
It widely used in beauty equipment , small yacht, lamps, , military communication intelligent network equipment and the other instruments .
Function
Momentary: Means that when you push switch and then move your finger, the actuator will back to the position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to position unless you push it again.
Note
Resistor not inside ,should soldering resistor outside when operation.
LED voltage 2.4V does not need the outside resistor
Color switch head led is the same with the switch head color
Technical Paremeters
1. Operating force 6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance 50m
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance 100m /min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 3405/1-2s
7. Solder resistance: soldering iron 3405/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10 Material: Nylon PA66+20% glass fiber
11. Installation size: 12mm
==========
5pcs 12mm Black Body Platic Switch Power Symbol LED Illumination Momentary Reset Fixation Self Locking Latching Waterproof Switch
Current : 3A
Material : Plastic
Switch Type : Push Button Switch
Model Number : 4000
Features : waterproof IP67
Item Type : SWITCHES
Is Smart Device : No
Function : latching normal open
front shape : round
Front material : Plastic
Size : 12mm
body color : black
Terminal : Pin terminal
