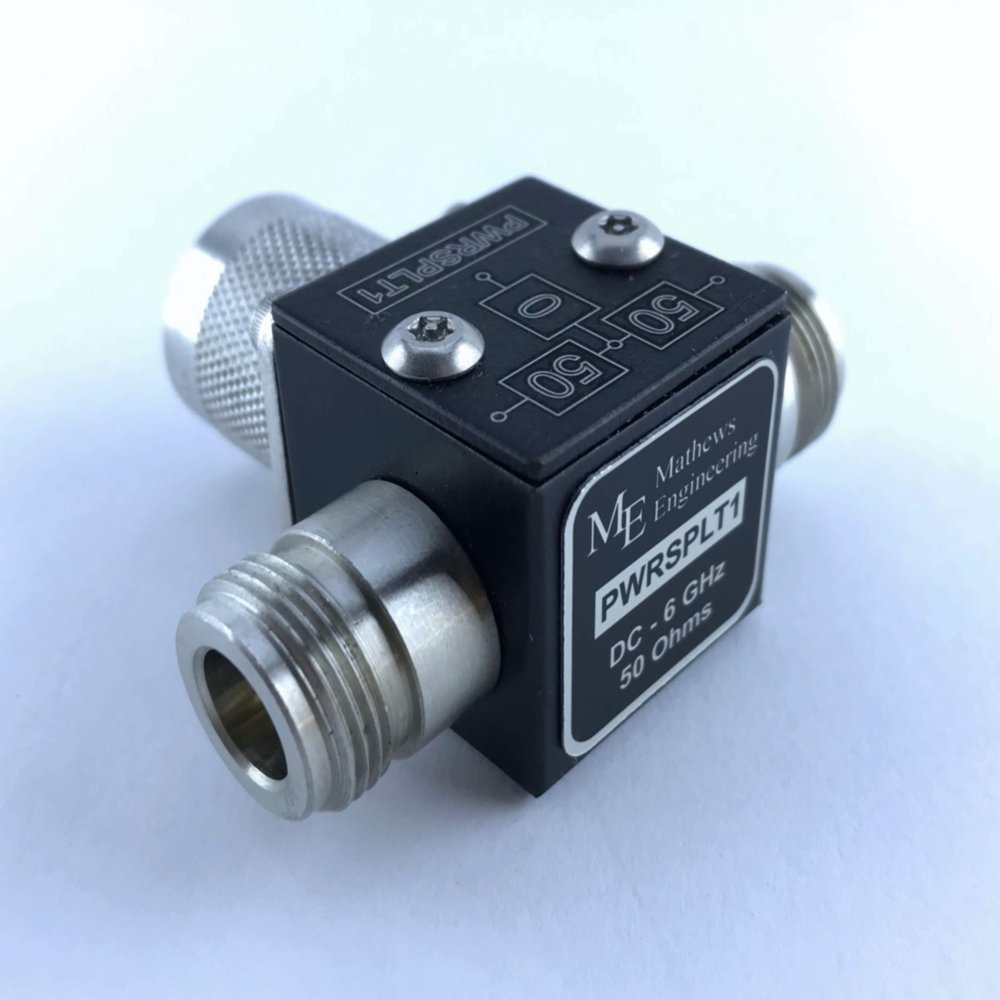

6 dB Power Splitter, 2 Way, 50 Ohm

Description

• Measurements, Leveled or Ratio (A/R)
• Test & Measurement
• Sweep Testing
• Network Analysis
• Gain Phase Testing

Specifications: Nominal insertion loss: 6 dB Operating range: DC to 6 GHz Equivalent output SWR (Zo = 50 Ohms) DC to 3 GHz: 1.2:1 DC to 6 GHz: 1.4:1 Output port tracking: DC to 3 GHz: 0.15 dB DC to 6 GHz: 0.25 dB Maximum power: +24 dBm (0.25W)
