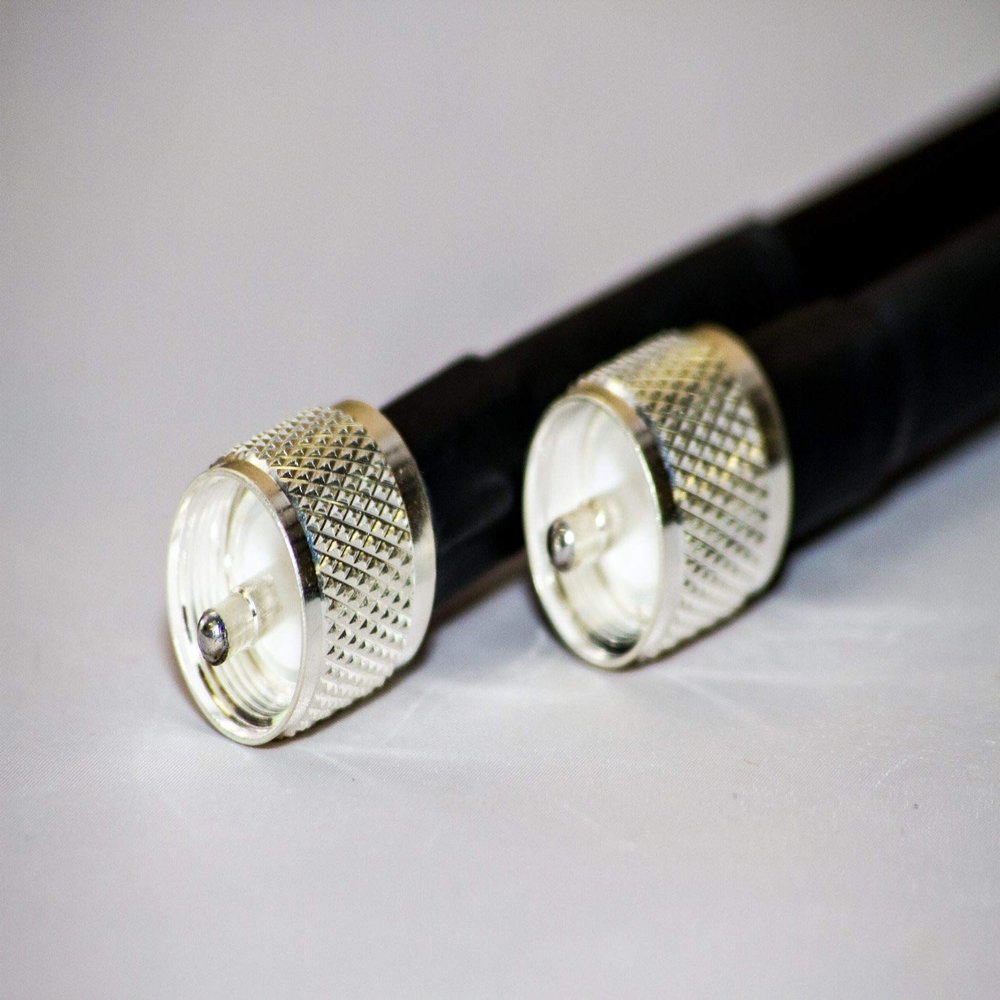

ABR Industries 100ft RG8 Coax Jumper w/ PL259 Ends

Description

• 0GA Stranded Very Flexible - great for rotatable antennas, routing through tight locations
• Double Shield 100% foil + 95% Tinned Copper Braid
• Best Grade Silver PL259 connectors installed on Each End
• Non-Contaminating-UV Resistant-Direct Burial Black Jacket.
• Closed Cell Gas Injected Foam Polyethylene Dielectric VP: 85%

Description Best Grade Silver PL259 connectors installed on Each End. Double Shield 100% foil + 95% Tinned Copper Braid Weather-Proof Heat Shrink Tubing (HST) Each End. Very Flexible great for rotatable antennas, routing through tight locations. 10GA Stranded Very Flexible. Frequency range 144MHZ (2 Meters), 440MHz and up to 1Ghz w/N Connectors. Non-Contaminating-UV Resistant-Direct Burial Black Jacket. Closed Cell Gas Injected Foam Polyethylene Dielectric VP: 85% All cable are fully tested. Hi-Pot and continuity. Voltage DC: 2500Volts RMS: 8000 Maximum permissible D.C. voltage level is conservatively 3 times the A.C. level. PP kW: 16 RoHS Compliant. Overall Diameter: Nominal .405 10#/100ft. Bend Radius: installation in. (mm) 1.0 (25.4) Bend Radius: repeated in. (mm) 4.0 (101.6) Bending Moment ft-lb (N-m) 0.375 (0.51) Nominal Attenuation-per 100ft/Power Rating(kW)/Efficiently% 0.5dB @ 10MHz/4.83kW/89.8% E. 0.8dB @ 30MHz/2.77kW/83% E. 1.1dB @ 50MHz/2.14kW/78.5% E. 1.8dB @ 150MHz/1.22kW/65.4% E. 3.3dB @ 450MHz/0.69kW/47.3% E. 4.6dB @ 700MHz/0.55kW/38.9% E. 5.1dB @ 900MHz/0.48kW/34.0% E. 7.1dB @ 1620MHz/0.35Kw/22.8% E.
