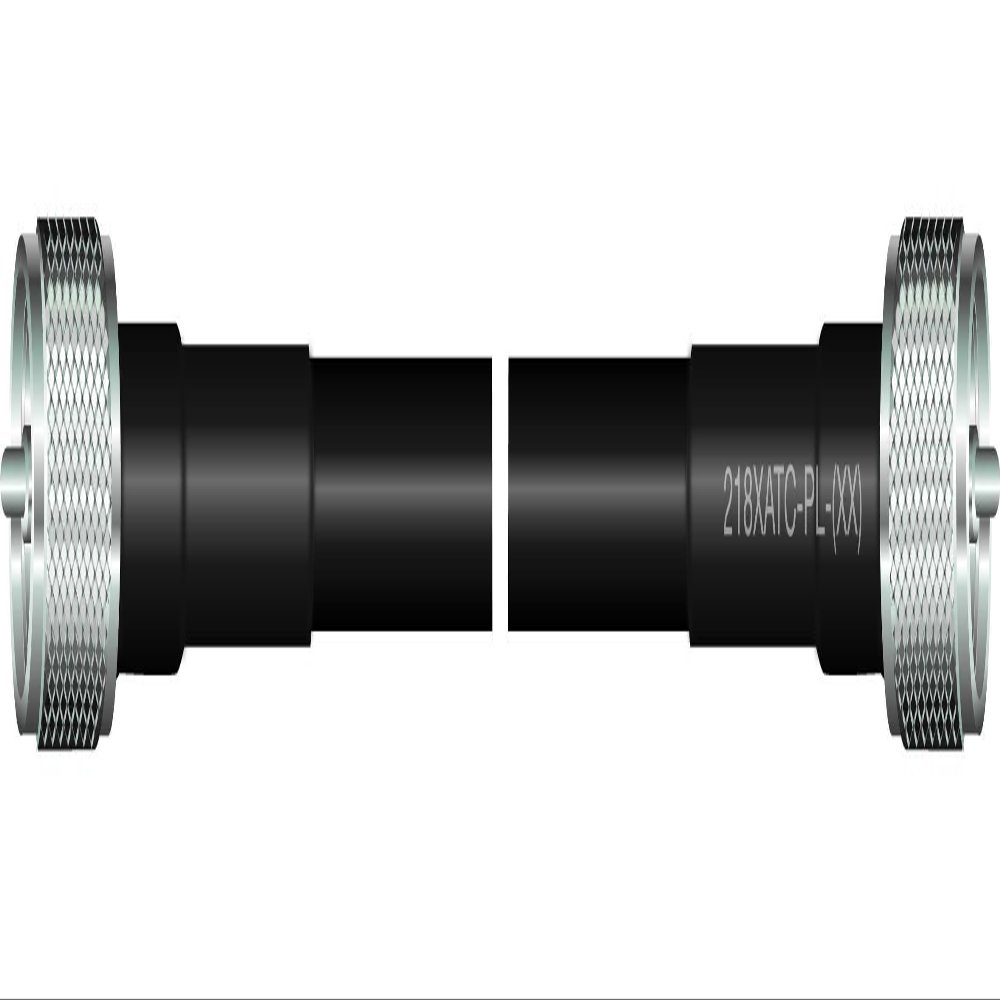

ABR Industries 100ft RG8X Coax Jumper w/PL259 Ends

Description

• Flexible Stranded Center Conductor.
• Perfect for Amateur Radio: Mobile, Dipoles, & Portable, Condos, and Apartments applications
• Non-Contaminating-UV Resistant-Direct Burial-Black Jacket.
• Gas Injected Foam Polyethylene Dielectric VP: 80%
• Overall Diameter: .242, Weight 4#/100ft

RG8X size:.240 Low Loss.
Best Grade PL259 connectors on Each End.
Weather-Proof Heat Shrink Tubing (HST) Each End.
30% lower loss than the standard RG8x. Flexible Stranded Center Conductor. 96% TC Braid + bonded 100% Foil Shield. Shield Effectiveness <90dB. That means that you get virtually no noise interference. Very Flexible, Light Weight, and Smaller than RG8 sizes. Perfect for Amateur Radio: Mobile, Dipoles, & Portable, Condos, and Apartments applications. Non-Contaminating-UV Resistant-Direct Burial-Black Jacket. Gas Injected Foam Polyethylene Dielectric VP: 80% - Our Closed-Cell-GIFP dielectric is a major advantage over standard RG8x; those products use a chemical foam dielectric; which causes higher losses, will-not stand-up to heat, and that will cause the center conductor to migrate into the braid, and short-out. Voltage DC: 1500Volts RMS: 5000 - Maximum permissible D.C. voltage level is conservatively 3 times the A.C. level. PP kW: 5.6 RoHS Compliant. Overall Diameter: .242 Weight 4#/100ft All cable are fully tested. Hi-Pot and continuity.
Nominal Attenuation-per 100ft/Power Rating(kW)/Efficiently% 0.9dB @ 10MHz/2.16kW/80% E. 1.6dB @ 30MHz/1.24kW/69% E. 2.1dB @ 50MHz/.96kW/62% E. 3.6dB @ 150MHz/0.55kW/43.5% E. 6.3dB @ 450MHz/0.31kW/23.2% E
