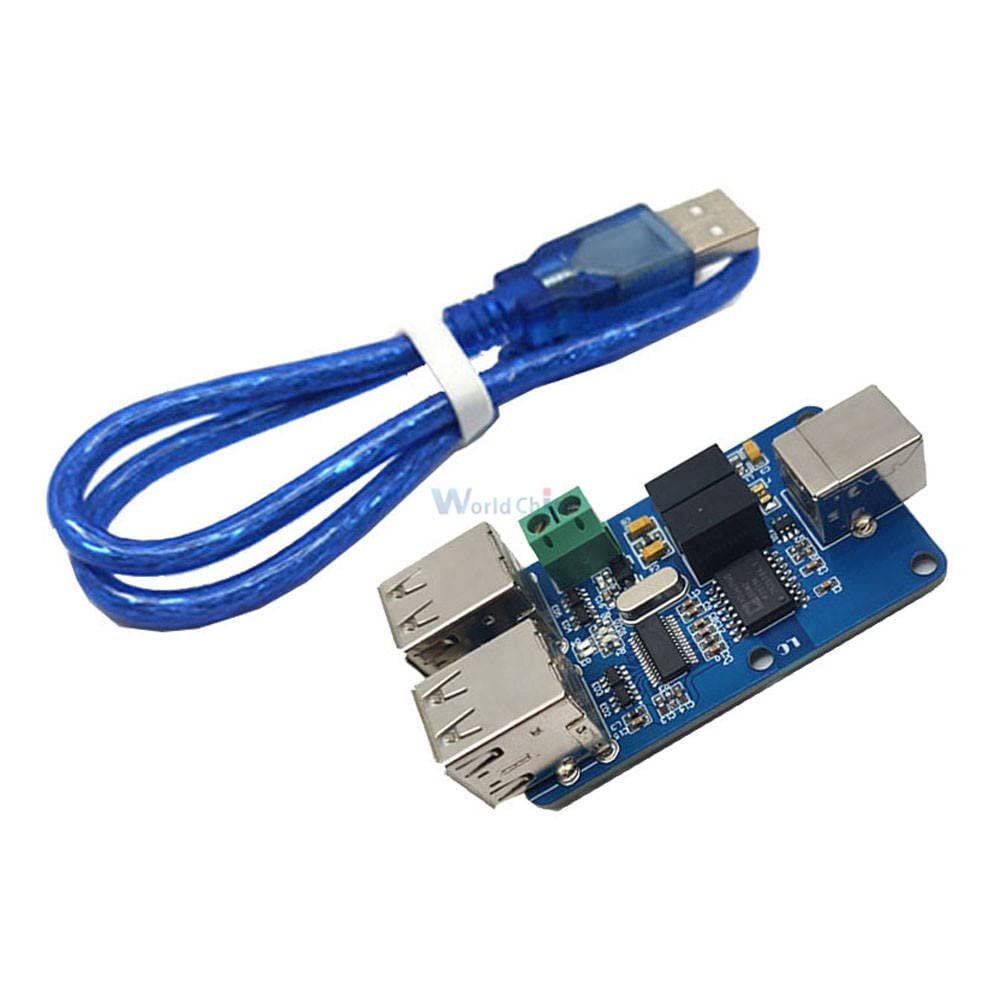

ADUM3160 USB Digital Isolator 1.5/12 Mbps Low/Full Speed Data Rate 2500V USB HUB Isolation USB 2.0 Compatible

Description

• ADUM3160 USB Digital Isolator 1.5/12 Mbps Low/Full Speed Data Rate 2500V USB HUB isolation USB 2.0 Compatible

ADUM3160 USB Digital Isolator 1.5/12 Mbps Low/Full Speed Data Rate 2500V USB HUB isolation USB 2.0 Compatible
Features
1. Compatible with USB2.0
2. ADUM3160 isolation voltage: 2500V
3. Power module isolation voltage: 1500V
4. Support USB low-speed 1.5Mbps and full-speed 12Mbps, not pure high-speed devices
5. Support USB control transmission, batch transmission, interrupt transmission, synchronous/isochronous transmission
6. Power supply: from the USB port of the host computer
7. External power supply DC5v, with reverse connection protection
8. Onboard output power supply Jinshengyang B0505S power 1x2W, when the total working current of the USB device is >400mA, an external DC5V power supply is required
9. Free drive, support hot swap, plug and play
10. Each USB port is equipped with USB dedicated ESD protection chip
11. Output four USB ports are not isolated from each other, each output has a USB status indicator
Application:
. Working environment with strong electricity and strong interference
Some circuits contain strong current and strong interference (such as high voltage, frequency converter, motor drive, etc.) environment. When it is connected to the computer, it must be isolated to ensure the computer and personal safety.
. Noise sensitive areas
The computer is a big noise source. In noise-sensitive areas, we can use this device to isolate the USB interface. Such as high-precision USB data acquisition system, HIFI audio system.
. USB debugging equipment
Such as various USB interface JTAG/SWD emulators, ISP/ASP/IAP/ICP downloaders, etc. When you often fail to connect or simulate abnormalities during debugging, you can use a USB isolator to try to improve.
. Various industrial USB devices
In an industrial environment, USB devices often crash, such as USB mice, keyboards, and USB to serial communication devices. The USB isolator can effectively reduce
