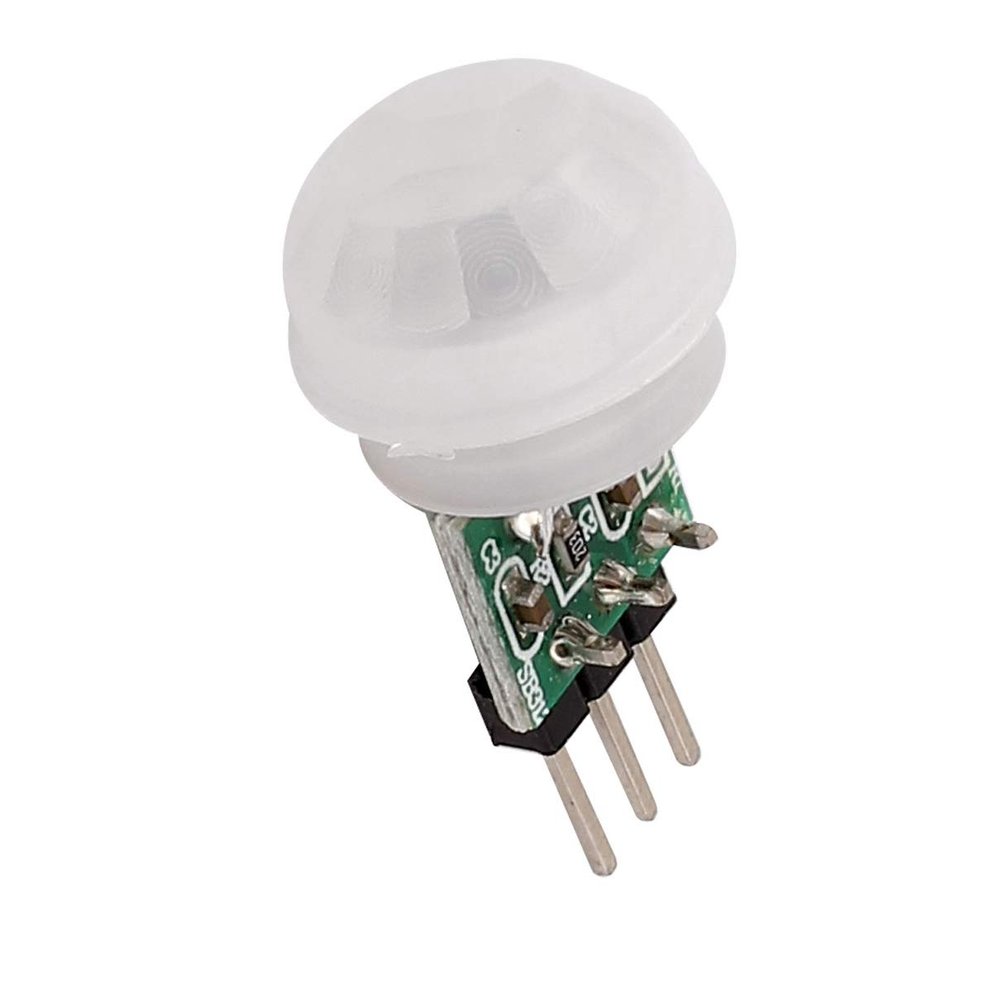

Aexit Mini Pyroelectric Semiconductor Products PIR Sensor Module Manual Infrared Microprocessors IR Detector

Description

• Package Content: 1 x PIR Sensor Module; Model: AM312; Main Color: White, Green
• Working Voltage: DC 2.7-12V; Max. Static Current: 1mA; Delay Time: 2s
• Blockade Time: 2s; Sensor Angle: 100 Degree; Sensor Distance: 3-5m
• Working Temp: -20C to +60C; Total Size: 26 x 13mm/1" x 0.51"(L*D); Pin: 3

Delay time: 2s Not adjustable
Blockade time:2S Not Ajustable
Sensitivity: Not adjustable
Light control: Not adjustable
sensitivity: non adjustable
Triggle type: Repeatable
Infrared sensor: dual , low noise, high sensitivity.
Anti interference is enhanced, the internal use of digital signal processing, output the high level and low level directly. Repeatable trigger mode: induction output high level, the delay time period, if the body is in its sensing range, the output will always maintain a high level, until the people left after the delay, it change to low level .Every activity of human body induction module detects automatically postpone a delay time, and delay starting point to the last active time.
Application: Widely automatic induction electrical equipment, such as detector,light switch, light, Intellectualixed toys or appliance, Security system etc
