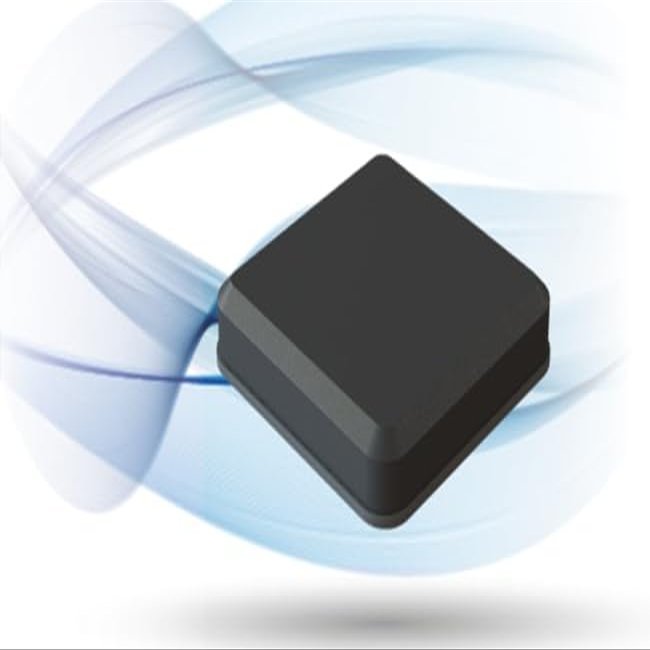

AirGain RECON13 5G RT5G EZConnect 13-in-1 Antenna with MIMO LTE/5G x 4, Wi-Fi x 8 & GNSS, Black, 15 feet Coax - Thread Mount - Black - AP-RT5G-C4W8G

Description

• Elements 1 up to 4: 617-960 MHz: 5.9 dBi; 1700-2700 MHz: 8.1 dBi; 3300-4200 MHz: 7.5 dBi; 5150-5850 MHz: 7.5 dBi / Elements 5 up to 12: 2.4 GHz, 6.3 dBi; 5-7 GHz, 8.0 dBi / Element 13 (1550~1610 MHz, 33.4 dBi): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
• Cable Termination: SMA Male / RP-SMA (Wi-Fi)
• Cable Length: 15 ft / Termination: SMA Male / RPSMA / Antenna Dimensions Height: 1.83 (46.5 mm) / Width: 7.46 (189.4mm) / Length: 7.46 (189.4mm)
• Temperature -40C to 85C (-40F to + 185F) Operating and Storage
• Military Spec MIL-STD 810 conformance to vibration and humidity
• Hazardous Substances RoHS Compliant / Water Ingress IP67 and IP69K
• Threaded Bolt Mount (includes pre-attached mounting foam for uneven surfaces), Must purchase AP-RT5G-MAG for magnetic mount
• Airgain Part # AP-RT5G-C4W2G-Q-B1 / EZConnect Cable Harness: CH-C4W2G-1-2-1-14
• 5 year limited warranty included

AirGain RECON13 5G RT5G EZConnect 9-in-1 is a full outdoor antenna equipped with 9 ports, designed specifically to provide high performance connectivity for Fleet and Public Safety vehicles and assets connecting to almost any vehicular router or modem. This antenna is configurable and offers up to four high gain cellular/LTE/MIMO antennas, which include support for LTE Band 14 for FirstNet, four high gain Wi-Fi antennas, and a GNSS antenna inside a single robust and compact housing. This antenna with its 4 x Wideband Cellular/LTE 5G elements has been designed to support the next generation of vehicular LTE 5G routers which support multiple carrier switching and provides the ultimate in Wi-Fi support with integrated 44 Wi-Fi antennas, providing support for full HD streaming video and other high bandwidth applications.
