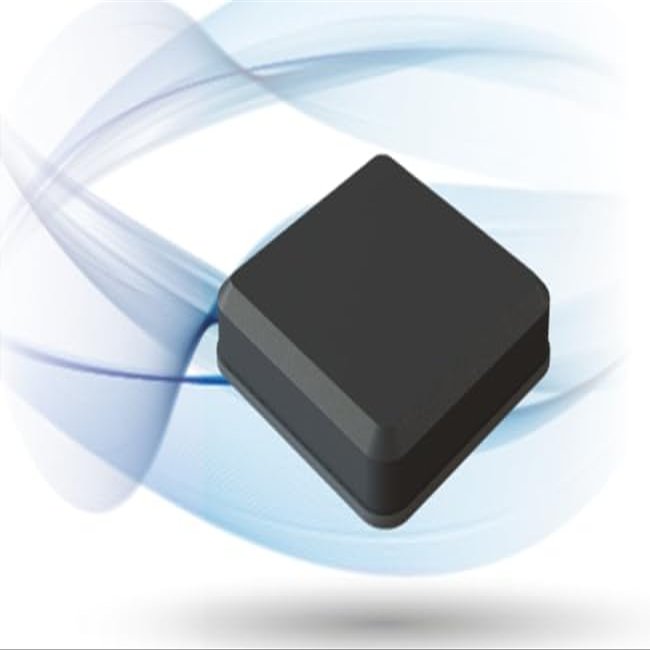

AirGain RECON13 RT5G 5G 9-in-1 MIMO LTE/5G x 4, Wi-Fi x 4 & GNSS Antenna - Thread Mount - Black - 15ft - SMA

Description

• Nine embedded antenna technologies that operate over multiple bands in one IP67 rated housing
• EZConnect cable harness allows for quick and easy customizations
• Elements 1 up to 4: 617-960 MHz: 5.9 dBi; 1700-2700 MHz: 8.1 dBi; 3300-4200 MHz: 7.5 dBi; 5150-5850 MHz: 7.5 dBi / Elements 5 up to 8: 2.4 GHz, 6.3 dBi; 5-7 GHz, 8.0 dBi / Element 9 (1550~1610 MHz, 33.4 dBi): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
• Temperature -40C to 85C (-40F to + 185F) Operating and Storage
• Hazardous Substances RoHS Compliant / Water Ingress IP67 and IP69K
• Military Spec Conformance to MIL-STD 810G
• Threaded Bolt Mount (includes pre-attached mounting foam for uneven surfaces), Must purchase AP-RT5G-MAG for magnetic mount
• Airgain Part # AP-RT5G-C4W2G-Q-B1 / EZConnect Cable Harness: CH-C4W2G-1-2-1-14
• Cable Length: 15 ft / Termination: SMA Male / RPSMA / Antenna Dimensions Height: 1.83 (46.5 mm) / Width: 7.46 (189.4mm) / Length: 7.46 (189.4mm)
• 5 year limited warranty included

AirGain RECON13 RT5G 9-in-1 is a full outdoor antenna equipped with nine ports, designed specifically to provide high performance LTE and 5G connectivity for Fleet and Public Safety vehicles and assets connecting to almost any vehicular router or modem. This antenna is configurable and offers up to four high gain cellular/5G/MIMO antennas, which include support for LTE Band 14 for FirstNet, four high gain tri-band Wi-Fi antennas including full support for the new 6 GHz (5.9-7.125 GHz) ISM band spectrum for next generation Wi-Fi 6 (802.11ax), and a GNSS antenna inside a single robust and compact housing. This antenna with its four x Wideband Cellular/5G elements has been designed to support the next generation of vehicular 5G routers which support multiple carrier switching, and provides the ultimate in Wi-Fi support - with integrated 4x4 Wi-Fi antennas, providing support for full HD streaming video and other high bandwidth applications.
AP-RT5G-C4W4G-Q-B1 / CH-C4W2G-1-2-1-14 - MIMO LTE, CBRS, LAA x 4, Wi-Fi6 x 4 & GNSS, Threaded Bolt Mount, SMA on Cell/5G & GNSS, RPSMA on Wi-Fi, Black, 15ft coax
