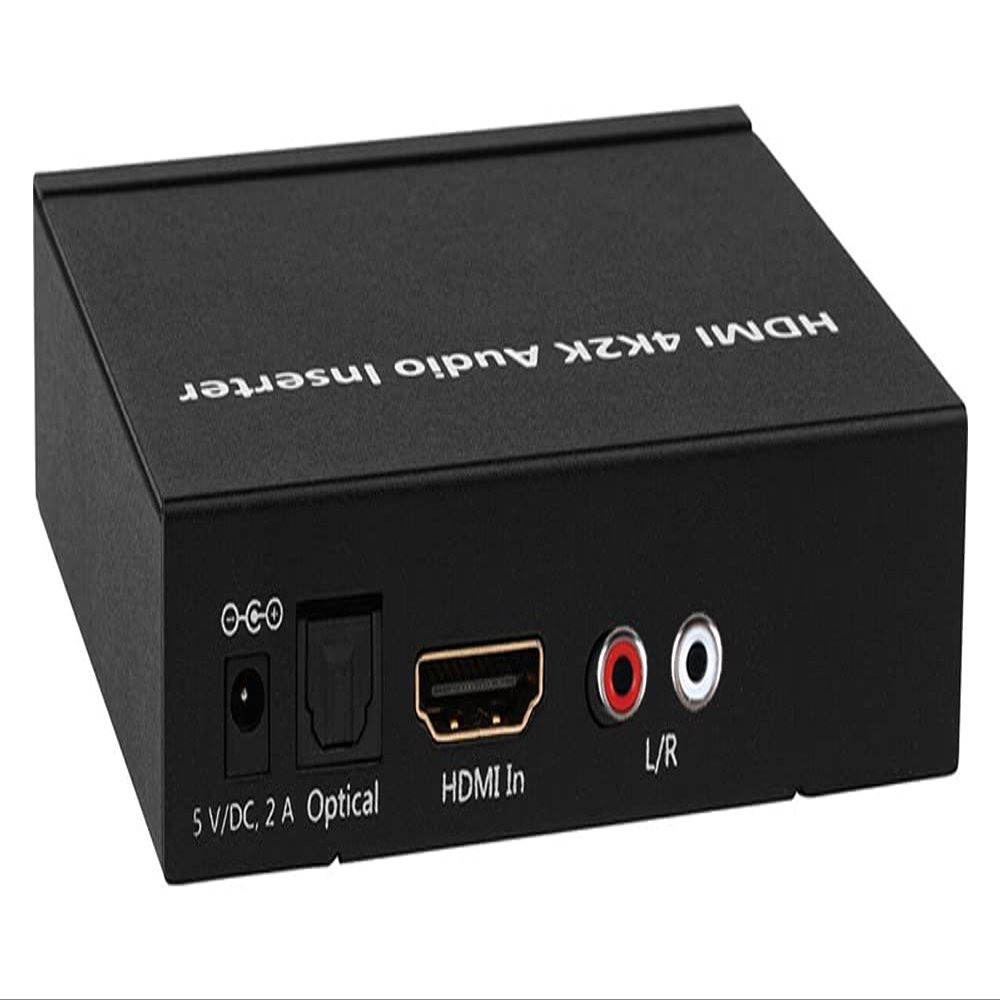

AllAboutAdapters Premium HDMI DVI Audio Injector Encoder + HDMI Repeater Function

Description

• Replaces the original HDMI audio by filtering out the original audio embedded in HDMI signal and insert a new digital or analog audio from different audio source. Combines DVI video with external audio for a new HDMI output.
• Converting analog audio from CD player or portable music player into HDMI feed with no video feeds needed. Encodes analog stereo or multi-channel surround sound into HDMI feed for new HDMI output.
• Combines DVI video with analog or digital audio for HDMI output further distribution. Real-time audio encoding with original sonic quality retained. No lags and no loss.
• Encoding optical audio of PCM 2CH, Dolby 5.1 and DTS 2CH/5.1 type input to HDMI audio for output. Encoding analog stereo from its 3.5mm input or RCA L/R input (via adapter) to HDMI for output.
• Easy dip switch design for users to choose input audio channel between HDMI, Optical or RCA L/R before encoding. Supports HDMI audio sampling rate up to 192 Khz.
• Supports Optical S/PDIF sampling rate up to 192 Khz. Fully supports HDMI 1.4, HDCP 1.2 and DVI 1.0.
• Supports HBR (high-bit-rate) audio. Supports resolutions up to 4Kx2K pixels and 3D video pass-through.
• Supports CEC bypass. The repeater function auto equalizes and compensates for HDMI/ DVI signal loss and extends the cable reach to maximum distance.
• Maximum HDMI extension range can be up to 15m/ 50ft for 1080p with 8-bit transmission or 10m/ 32ft for 1080p with 12-bit transmission.
• Can be cascaded with other HDMI devices such as HDMI switchers/splitters or HDMI DVI distribution systems for achieving larger-scale setup and for applications requiring long cable runs like digital signage, information kiosks and so on.

HDMI DVI Audio Encoder With HDMI Equalizer Function
This HDMI audio inserter provides easy external ways to: replace original HDMI audio with audio from mixer or mic inject new audio into HDMI feed for studio production or broadcasting combine external audio with DVI video into HDMI signal for output free up digital audio input on your AV amp by putting the audio through HDMI input
Users have the control and capability to select between different input audio type for conversion or encoding while the original HDMI input feed can also be automatically boosted for longer cable run through its internal HDMI repeater function.

Real-Time HDMI Audio Encoding
Instant filering out original digital audio embedded in HDMI with new audio feed for real-time output with no lags.

Easy Audio Input Channel Selection
This HDMI audio injector is featured with easy dip switch design. Users can select input audio channel to be embedded.

This dip switch setting helps A/V installer overcome audio issues during complex HDMI installation and offer great flexibility of selecting desired audio and re-generating new HDMI feed for distribution, extension or integration.

Universal Digital Analog Audio Format Compatibility
All analog stereo or digital surround input from RCA or optical input such as Dolby Digital 5.1, AC3, DTS and PCM 2-channel inputs are supported by this audio encoder.

192Khz Sampling Rate Support
This device supports HDMI audio sampling rate up to 192 kHz with optical audio input sampling rate up to 48 kHz.

HDMI Equalizer Function
The HDMI repeater function of this device can automatically equalize and compensate for signal loss.

Maximum HDMI extension range can be up to 15m/50ft for 1080p with 8-bit or 10m/32ft cable run for 1080p with 12-bit.
