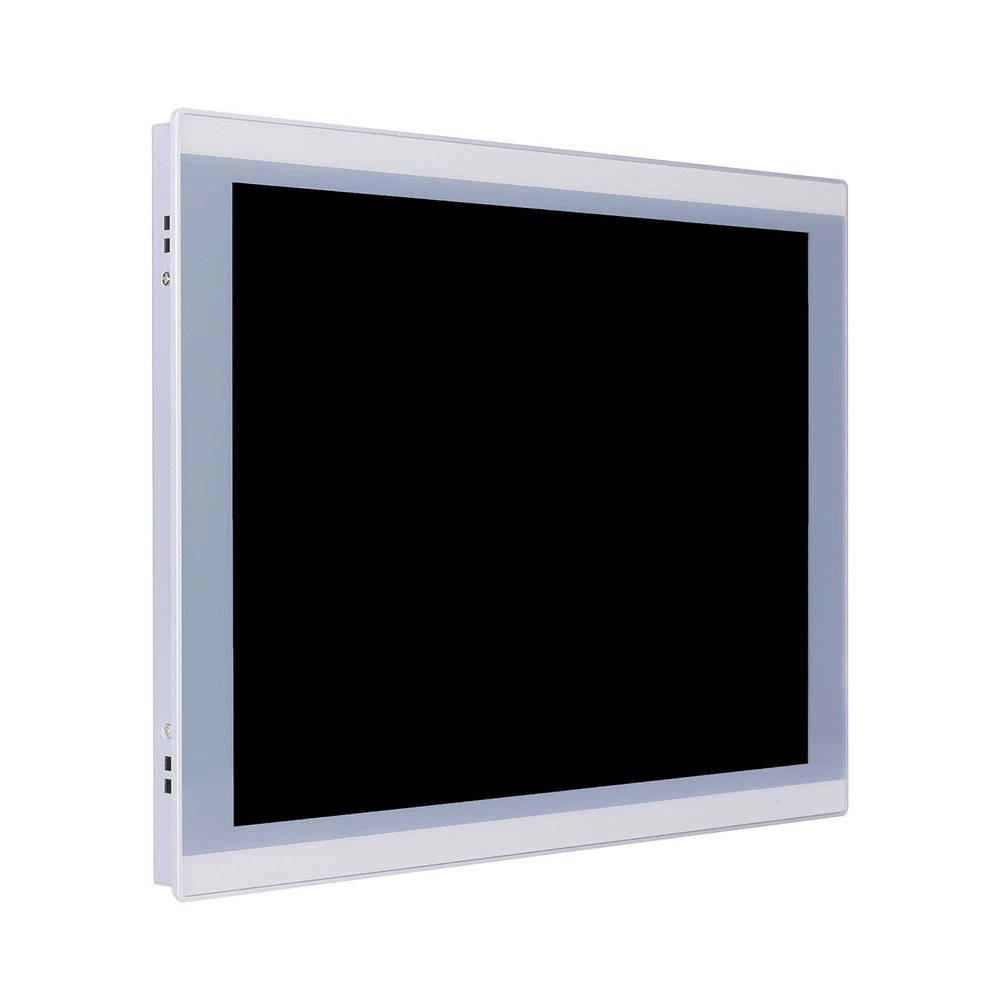

ANDAQI 15" TFT LED Industrial Panel PC, High Temperature 5-Wire Resistive Touch Screen, I7 1165G7, PW25, VGA, HDMI, 2 x LAN, 2 x COM, 0 RAM, 0 Storage, Barebone No System

Description

• 15 inch tft led industrial grade touch panel pc, front panel protection IP65, high temperature 5-wire resistive touch screen, typical 1024 x 768 resolution, powered by Intel i7 1165g7 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
• HUNSN PW25 designed with 12v dc, hdmi, vga, 2 x usb3.0, 2 x usb2.0, 2 x lan, audio-in&out, 2 x com, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
• Size at 354.3 x 278.3 x 54mm, 3.6kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW25
Panel: 15" TFT LED panel, front panel protection IP65
CPU: Intel i7-1165G7 Processor 12M Cache, up to 4.70 GHz
Memory: 2 x SODIMM DDR4-3200, max. to 64GB RAM
Storage: 1 x M.2 2260/2280 PCIE X1/SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: 1 x M.2 Key E slot for WIFI6, 1 x M.2 Key B slot for 5G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 354.3 x 278.3 x 54mm
Weight: 3.6kgs
Opening Hole: 348 x 272mm
Resolution: 1024 x 768
Perspective: 80L, 80R, 60T, 60B
Brightness: 350cd/m2
Contrast: 1000
Backlight Life: 30,000 hours min.
Touch Screen: High temperature five-wire resistive touch screen
Transmittance: 805% at 550 nm wavelength
Durability Touch Count: 35 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50C with SSD, 0 ~ 40C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW25 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
