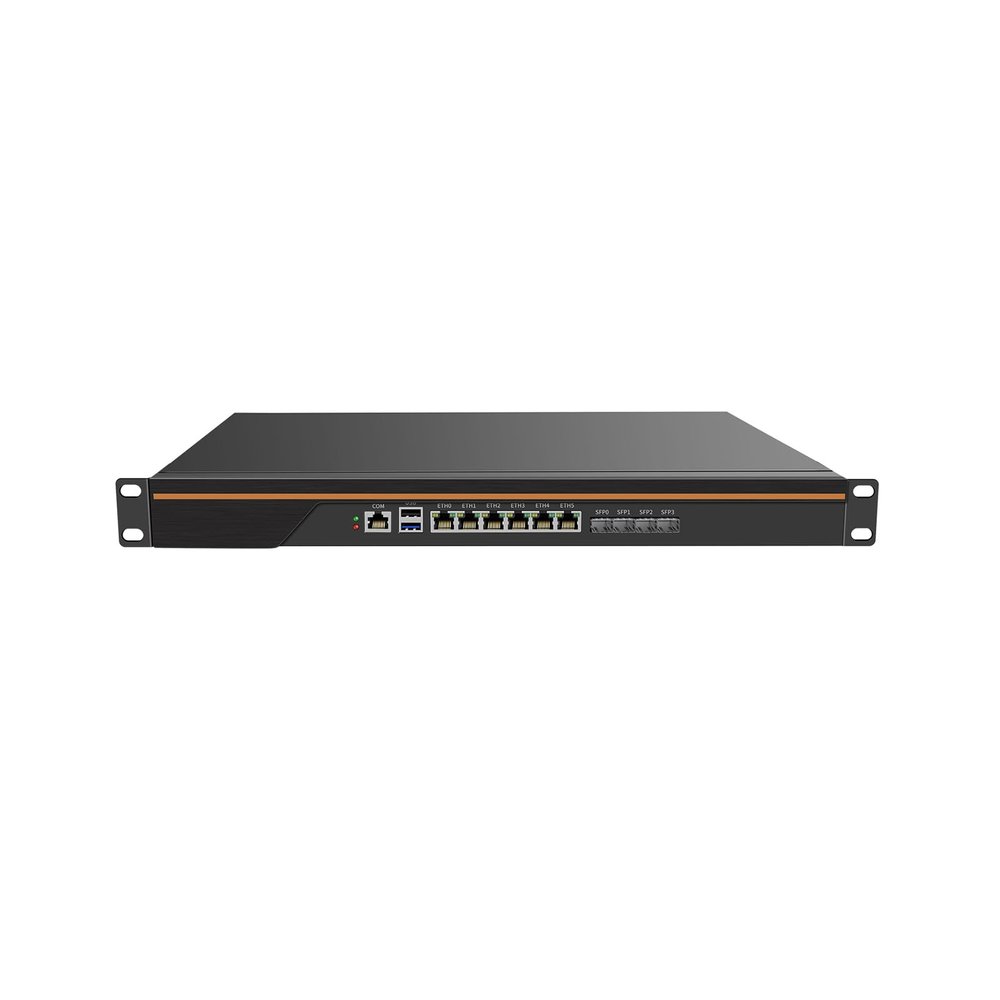

ANDAQI 1U Firewall Appliance with QAT, OPNsense, VPN, Router PC, PVE Server, Denverton Atom C3758, RN03, 6 x 1GbE LAN, 4 x SFP+ X553 10GbE, DPDK Support, 0 RAM, 0 Storage, Barebone No System

Description

• ANDAQI RN03 equipped with atom c3758 processor, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support aes new instructions
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Standard 1u, atx power, with power cord, make sure to use a big brand memory and ssd with quality assurance
• Designed with console, usb2.0, usb3.0, 6 x lan, 4 x sfp+ optical, ast 2400 vga, power switch, ac socket, size at 484 x 252 x 48mm
• Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: ANDAQI RN03
CPU: Atom Processor C3758 16M Cache, up to 2.20 GHz
Memory: 2 x SODIMM DDR4 2400 MT/s, MAX.64GB RAM
Storage: 1 x M.2 2280 NVME PCIE3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 2 x I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553
I/O Interface: Console, USB2.0, USB3.0, 6 x LAN, 4 x SFP+ Optical, AST 2400 VGA, Power Switch, AC Socket
Expansion: 1 x Mini PCIE slot for WiFi/4G, 1 x M.2 3052 USB3.0 x1 signal slot for WiFi/4G, with SIM slot, 1 x PCIe x8 slot
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Power: 100-240V1.0A, 12V6.25A
Operating Temperature: -0~+50C commercial HDD, -20C~+50C industrial SSD, surface air flow
Ambient Temperature: 5%~90% non-condensing
TDP: 25W
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Size: 484 x 252 x 48mm
Weight: 3.2kgs
Packing List: ANDAQI RN03 firewall appliance, rackable ears, power cord, warranty card
Function: Supports hardware auto power on enabled default, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark ANDAQI store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
