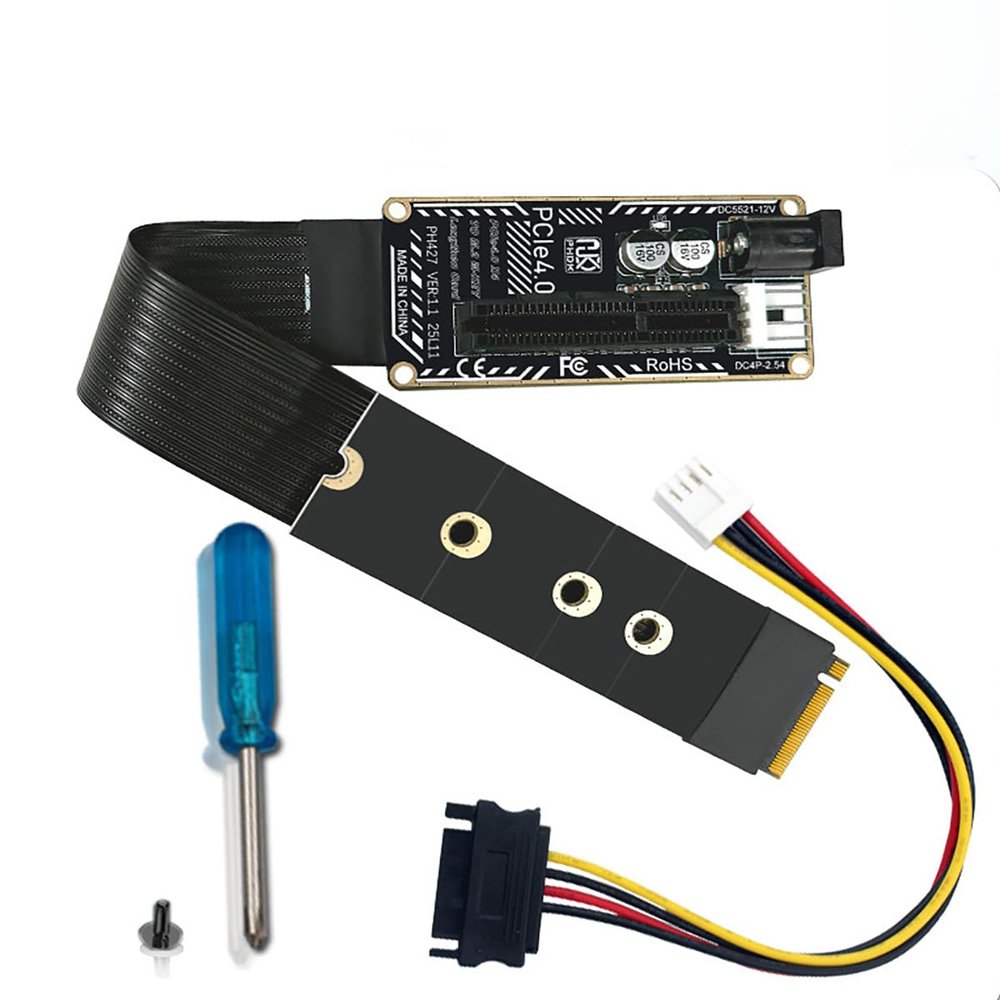

AoQhir PH427 PCIe 4.0 x4 to M.2 M Key Extension Cable Adapter 64Gbps for External GPU and SSD Expansion Flexible FPC Riser Compatible with NVMe 2230 2242 2260 2280 Slots (PH427A-15)

Description

• High Speed PCIe 4.0 Performance -- Supports PCIe 4.0 x4 bandwidth up to 64Gbps and is backward Compatible with PCIe 3.0 and PCIe 2.0 delivering stable high speed data transfer compatible with external GPU NVMe SSD and PCIe expansion cards.
• M.2 M Key to PCIe Expansion -- Converts motherboard M.2 M Key slot to a PCIe x4 slot Compatible with NVMe M key graphics cards. storage adapters. network cards. capture cards. and external GPU enclosures.
• Flexible FPC Cable Design -- Ultra thin 0.3mm flexible FPC circuit board allows easy routing inside tight PC cases open test benches mining rigs and compact workstation builds.
• Wide M.2 Size Support -- Supports M.2 Mkey 2230 2242 2260 and 2280 cable making it ideal for DIY PC modding and OEM projects.
• Multi Layer PCB with LED Indicator -- 4 layer PCB provides strong anti interference accurate impedance matching and stable PCIe signal transmission with LED indicator showing power and connection status
• Notched Slot Design -- Notched slot design at rear end accommodates all PCI-E device specifications: x1, x4, x8, x16. (x4 signal slot)

AoQhir PH427 PCIe 4.0 x4 to M.2 M Key Extension Cable Adapter 64Gbps for External GPU and SSD Expansion Flexible FPC Riser Compatible with NVMe 2230 2242 2260 2280 Slots



Product Description

The PH427 Series PCIe 4.0 x4 to M.2 M Key extension cable is designed to provide high speed expansion Compatible with external GPU enclosures NVMe SSD adapters and PCIe riser systems. This flexible PCIe 4.0 riser cable allows your motherboard M.2 M Key slot to connect to full size PCIe devices including graphics cards storage controllers and high performance expansion cards.
Built with advanced multilayer FPC flexible circuit technology the PH427 extension cable delivers stable PCIe 4.0 signal transmission up to 64Gbps while remaining backward compatible with PCIe 3.0 and PCIe 2.0 systems. The 4 layer PCB structure ensures strong anti interference performance accurate impedance matching and reliable high speed data integrity even in compact or external GPU builds.
The slim 0.3mm flexible cable design makes it ideal for small form factor PC builds test benches mining rigs and external GPU setups. It Compatible with M.2 M Key NVMe sizes 2230 2242 2260 and 2280 and can be trimmed for customized installation. An integrated power and activity LED confirms proper device connection and system power status.
The open end PCIe x4 slot design supports Compatible with x1 x4 x8 and x16 PCIe cards making it perfect Compatible with GPU risers NVMe adapters network cards capture cards and more. Whether you are building an external GPU system mkey expansion dock or compact workstation this PCIe 4.0 M.2 to PCIe adapter cable provides a fast stable and flexible solution.

Product Specifications

Product Name: PCI-E 4.0 x4 to M.2 M.Key Extension Cable
Product Model: PH427A-15/PH427B-15
Dimensions: Straight Plug 230mm x 30mm, L-Shaped 236mm x 30mm
Weight: 65g
Support: PCI-E4.0 Compatible with 3.0/2.0

PCIe4.0x4 to M.2 MKey Extension Cable
PCIe4.0 backward compatible with 3.0/2.0 PCIe4.0x4, 64Gbps

Trimmable Length
Supports 2230/2242/2260/2280 Form Factors

Premium Cable Construction: FPC Flexible Circuit Board
Multi-layer PCB with integrated high-speed data transmission technology, only 0.3mm thick

Utilizes multi-layer circuit board
4-layer circuit board construction: Exceptional EMI resistance ensures stable PCI-E high-speed signal transmission, data integrity, and impedance matching.

Device Indicator Light
Solid illumination indicates normal connection and device power.
Notched slot design at rear end accommodates all PCI-E device specifications: x1, x4, x8, x16. (x4 signal slot)
