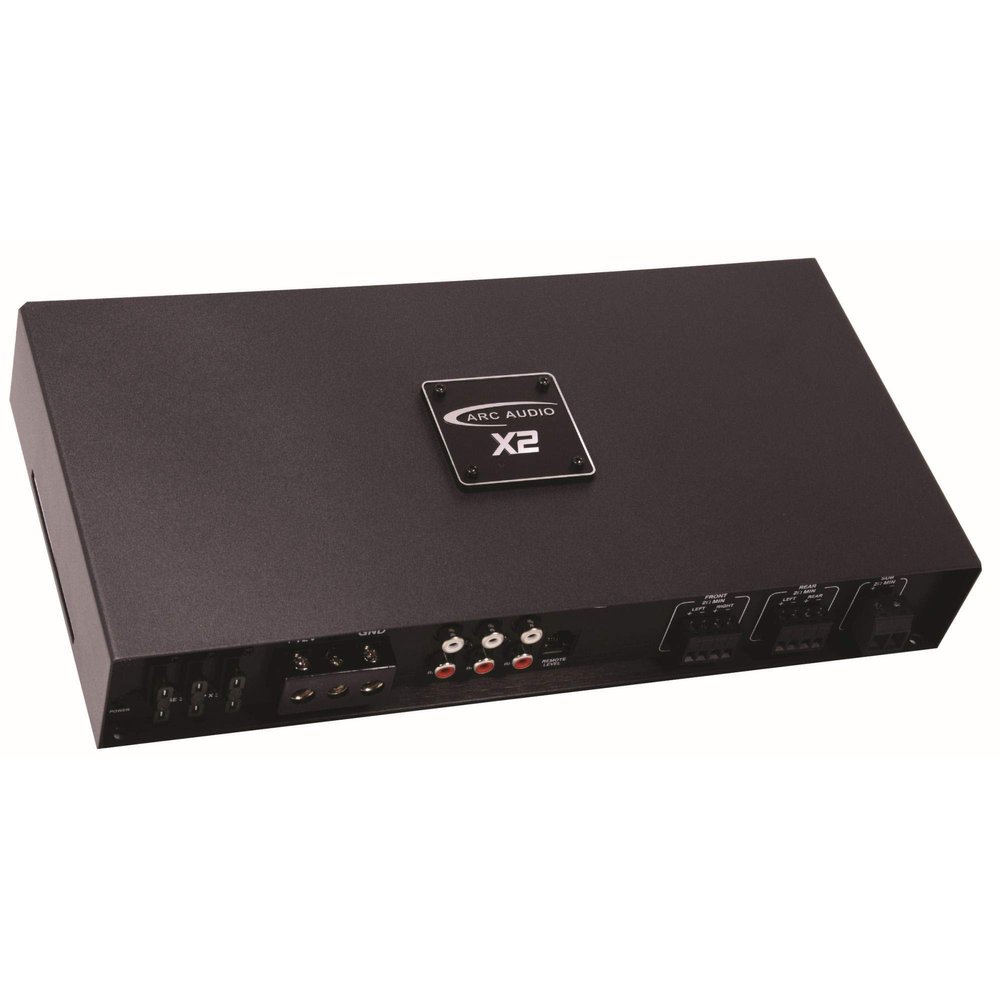

Arc Audio X2 850.5 Multi-Channel Amplifier (5-Channels) (Renewed)

Description

• Arc Audio X2 850.5 Multi-Channel Amplifier (5-Channels)
• Microprocessor Class-D Design
• High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality)
• Level 1 X2 Cosmetics Package - Texture Coated Stamped Steel Cosmetic Cover With Aluminum Logo Badge. (Changable to Level-2 XDi Cosmetics)
• Single Side Connection Design

Arc Audio X2 850.5 Multi-Channel Amplifier (5-Channels)

Multi-Channel Amplifier (5-Channels)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality)
Level 1 X2 Cosmetics Package - Texture Coated Stamped Steel Cosmetic Cover With Aluminum Logo Badge. (Changable to Level-2 XDi Cosmetics)
Single Side Connection Design
Full-Range Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Micro Processor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
High Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra-Low ESR, High-capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High-Speed Class-D Technology Powering All XDi Amplifiers.
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Head Units
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Block Type Terminal Connections

Specifications -
4-Channels @ 4 Ohms (Ch 1-4) - 85 Watts
4-Channels @ 2 Ohms (Ch 1 - 4) - 125 Watts
2-Channel @ 4 Ohms (Ch 1-4 Bridged) - 250 Watts
1-Channel @ 4 Ohms (Ch 5) - 225 Watts
1-Channel @ 2-Ohms (Ch 5) - 400 Watts
Frequency Response - 20Hz - 20kHz
Crossover Range (Ch 1-4) - 50Hz - 550Hz
Crossover Range (Ch 5) - 30Hz - 230Hz
Bandpass Capable - No
Bass Boost - Variable 0-12 dB @ 45Hz
Cosmetic Trim - XDi Trim Level 1
Remote Level Control Included - Yes
Input Sensitivity (Low) - 200mV - 3.5V
Fuse - 3 x 30 Amp
Dimensions - 12.42"(L) x 6
