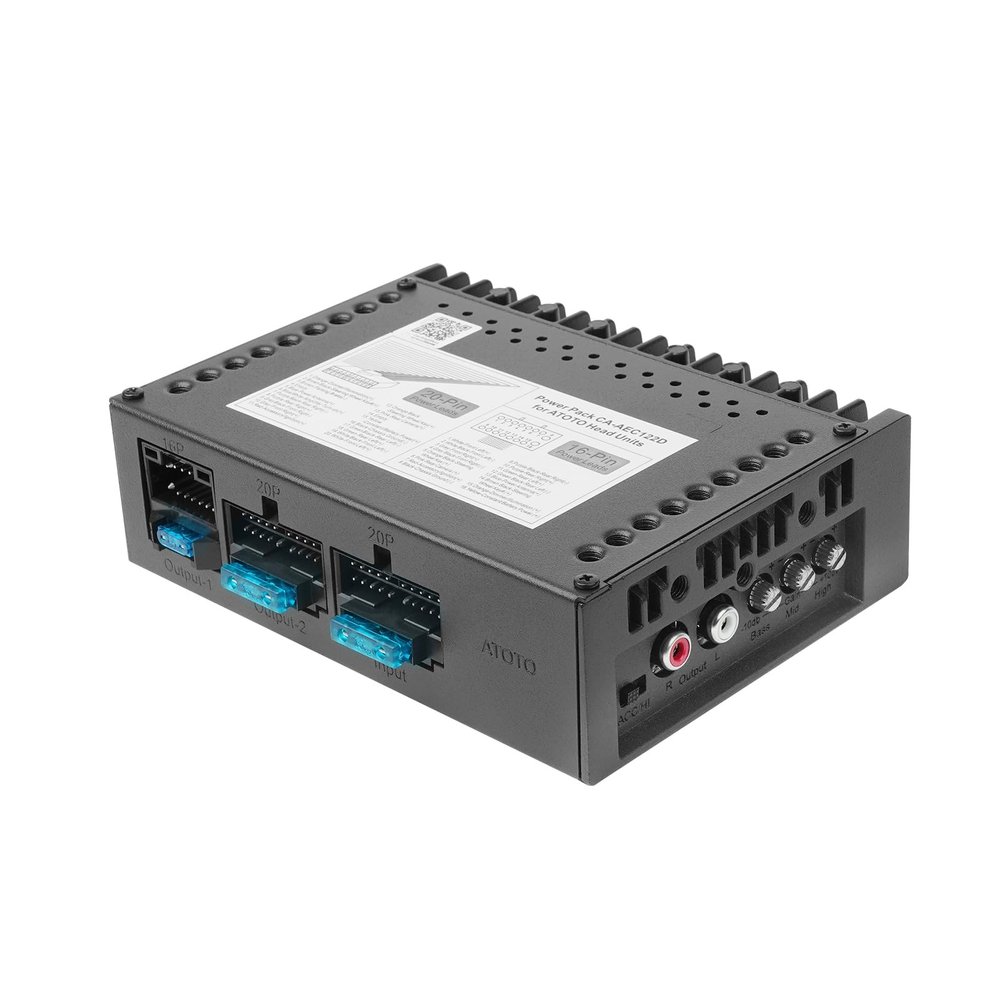

ATOTO CA-AEC122D Class D TI TPA3221 Car Amplifier,4 Channel,Supports 7V-30V Input,2/4 Ohm Stable,108dB SNR,Low Distortion,Only for Selected ATOTO Car Stereos
A$338.05
A$563.41
-
Order within 15 hours and 9 minutes to get between June 12 - June 18 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- High-Performance Amplifier: Based on the TI TPA3221 D-Class amplifier chip, the CA-AEC122D delivers powerful output in stereo (BTL) modesRMS 4x60W at 4 Ohms (1% THD+N) and RMS 4x125W at 2 Ohms (1% THD+N)for exceptional audio performance
- Optimal Amp-Speaker Pairing: CA-AEC122D delivers 4x60W RMS, which may overpower stock speakers (20-30W). To address this, opt for ATOTO CS-651DC/DST speakers(not included) with 60-70W to make both are in the same power range, providing optimal performance
- Wide Supply Voltage & Flexible EQ Gain Settings: Supports voltage from 10V to 16V, accommodating various power sources. 3-band EQ (BASS/MID/HIGH): Optional gain settings (18dB, 24dB, 30dB, 34dB) for better sound quality customization
- High Efficiency Audio: With efficiency 90% and ultra-low idle power consumption (<1mA), the CA-AEC122D offers excellent audio quality with a signal-to-noise ratio over 108dB
- Comprehensive Protection Features: Equipped with under-voltage, over-voltage, short-circuit, and over-temperature protection. Includes clipping detection and DC speaker protection to ensure reliable and safe operation under various conditions
- Centralized Integration: Designed for center console installation, featuring a thermally enhanced HTSSOP package (with bottom heat sink pad) for optimized heat dissipation. Plug-and-play design ensures seamless connection with compatible ATOTO head units
- Compatibility Notice: Only fits ATOTO double-DIN short chassis and single-DIN telescopic long chassis, including A6, F7, A5L, S8, and X10 Series. Not compatible with double-DIN long chassis or extended chassis like Portable Head Units (PND) and S8PN
- Product Care: 12 m0nths included from purchase. Reach out for an extra 6 m0nths. Our cust0mer care team, details in the box, is available around the clock on workdays. See package details for the online manual in different languages
