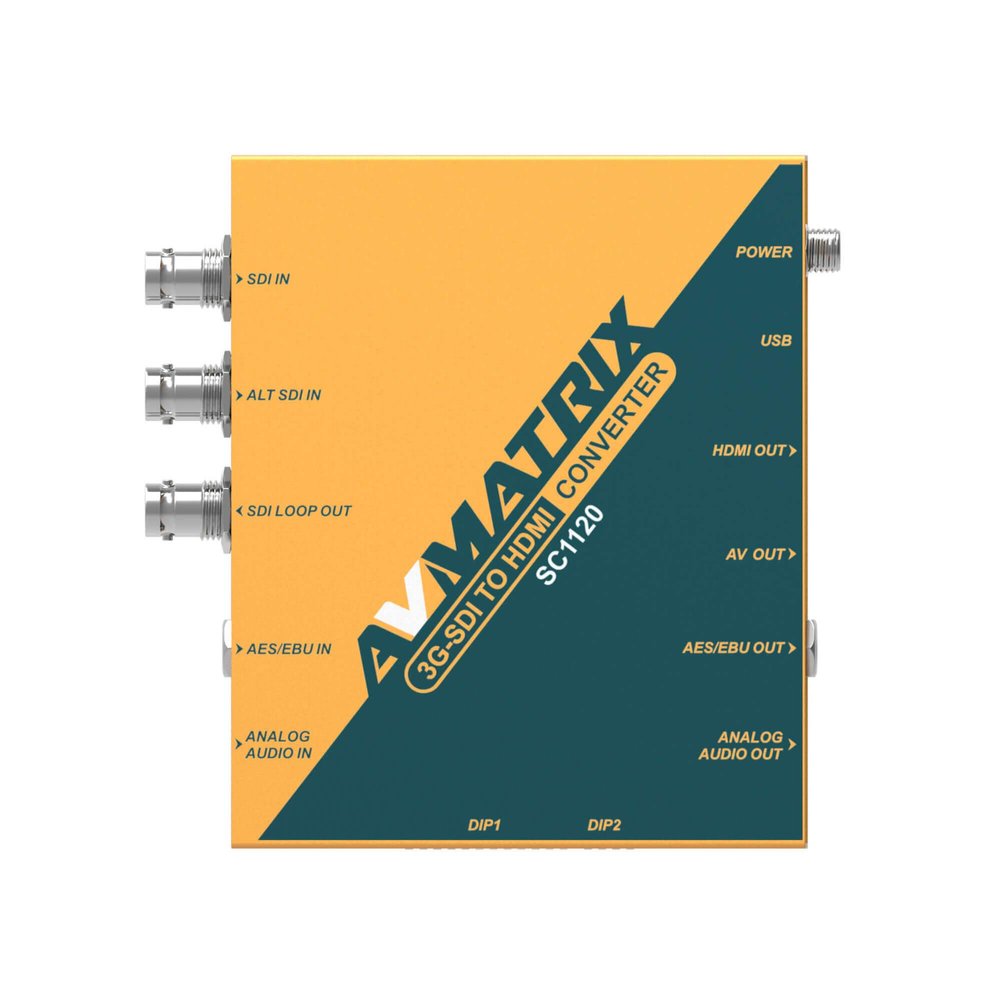

Avmatrix 3G-SDI to HDMI & AV 1080P to 720p Scaling Converter, SC1120 3G-SDI Scaling Converter for SDI HDMI AV Monitor

Description

Model: SC1120
3G-SDI to HDMI & AV Scaling Converter
INPUT
SDI Video Input: SD/HD/3G-SDI x1, Alt 3G x 1
AES/EBU Digital Audio Input: 1/4 (6.35mm) TRS jack x 1
Analog Audio Input: 1/8 (3.5mm) jack x 1
OUTPUT
HDMI Video Output: HDMI type A x1
AV Output: 1/8 (3.5mm) jack x 1
SDI Video Loop Output: SD/HD/3G-SDI x1
AES/EBU Digital Audio Output: 1/4 (6.35mm) TRS jack x 1
Analog Audio Output: 1/8 (3.5mm) jack x 1
FORMATS
SDI Input Format Support:
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
1080psF 30 / 29.97 / 25 / 24 / 23.98
1080i 60 / 59.94 / 50
720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
625i 50, 525i 59.94
SDI Video Ratio: SD/HD/3G-SDI
SDI Compliance: SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space and Precision: YUV 4:2:2
SDI Auto Switching: Auto selects SD,HD and 3G-SDI on input
HDMI Output Format Support: 1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/35/24
576i 50, 480i 60
HDMI Color Space and Precision: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
AV Output Format Support: NTSC, PAL
SIZE: Dimension (LWD): 125.5mm x 104mm x24.5mm
Weight: 465g
POWER
Power Connector: Threaded locking connector
Power Consumption: 6W
Voltage Range: DC 12V
