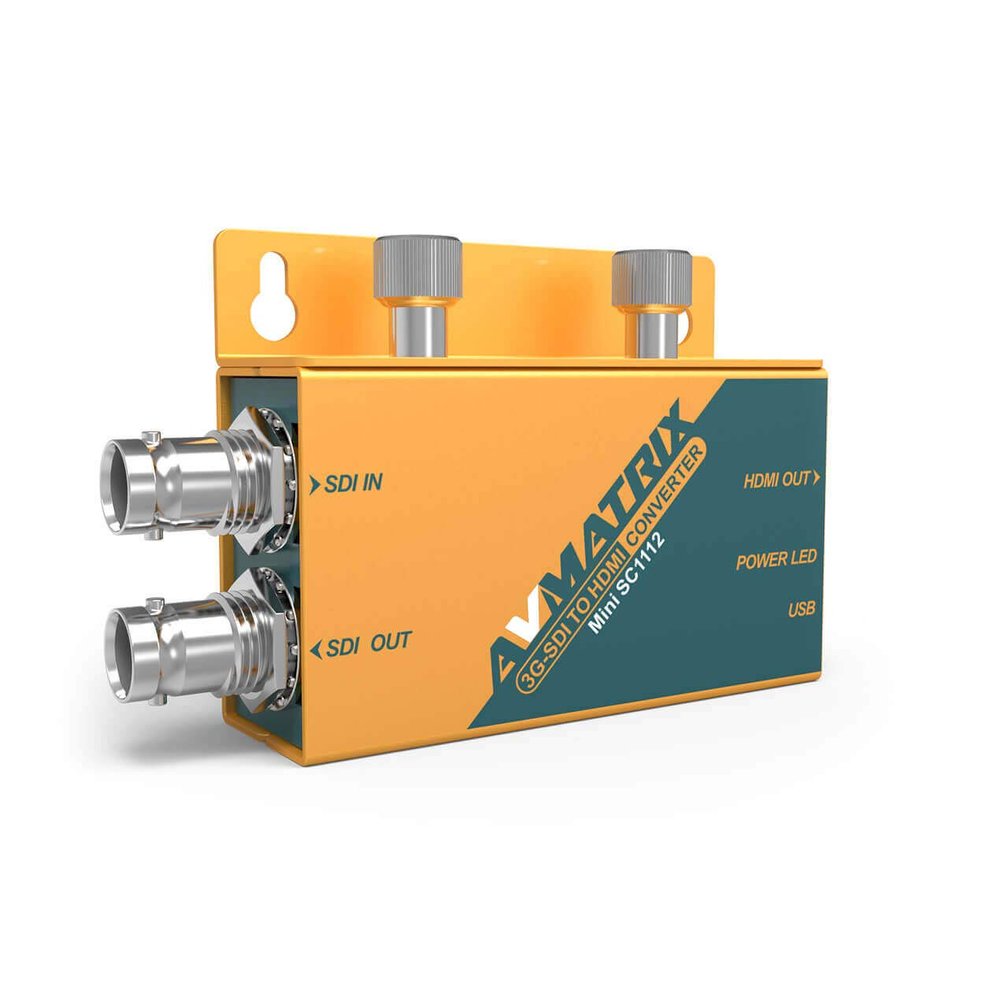

AVMATRIX Mini SC1112 Pocket-Size 3G-SDI to HDMI Broadcast Converter for Users with Full Size SDI and HDMI Connectors

Description

• Portable Broadcast ConverterThe Mini SC1112 is a pocket-size broadcast converter, it converts SDI input signal to HDMI signal and with SDI loop out. It is very convenient for users with the full size SDI and HDMI connectors.
• Born for BroadcastAlthough it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7x24h uninterrupted working without any lag or delay.
• Powered AnywhereFeatured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 5,000mAh power bank can supply a more than 24-hour uninterrupted working time.
• Pocket Size and Easy to MountMiniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.
• Package Include1x Mini SC1112, 1x Mounting Bracket, 1x 5V Special Power Adapter, 1x USB Cable.

Introduction
Mini SC1112 is an exquisite and portable SDI to HDMI converter. With micro USB power supply, convenient and detachable mounting bracket, Mini SC1112 is the best choice for outdoors and indoors. With 3G-SDI input and SDI loop-out, Mini SC1112 can auto detect SD/HD/3G-SDI signal up to 1080p60, and support both Level A and Level B. HDMI -Type A output is compatible for more consumer electronics such as HDMI Television, projector, VCR, etc.

Connections

SDI Video Input: 1SD/HD/3G-SDI (75 BNC)
Multi Rate Support: Auto Detect SD/HD/3G-SDI
Power LED: Power indicator
SDI Video Loop Output: 1SD/HD/3G-SDI (75 BNC)
Micro USB: Power and software update
SDI LED: SDI input signal indicator
HDMI Video Output: 1HDMI A

Standards
SDI Format Support:
525i 59.94, 625i 50
720p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080psf 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30
1080p 50/59.94/60

SDI Video Rate: SD/HD/3G-SDI

SDI Auto Switching: Auto selects SD/HD/3G-SDI on input

SDI Color Space and Precision: YUV 4:2:2

SDI Compliance:
SMPTE 259M
SMPTE 292M
SMPTE 424M

HDMI Format Support:
480i 59.94, 576i 50
720p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30
1080p 50/59.94/60

HDMI Color Space and Precision: YUV 4:2:2

Power
Power: Micro USB
Power Consumption: 1.5W
Voltage Range: 3.3V-5V

Physical Specifications
Dimension: 714123mm
Net Weight: 168g
Gross Weight: 500g

What's Included
Mini SC1112
Mounting Bracket
5V Special Power Adapter
USB Cable
