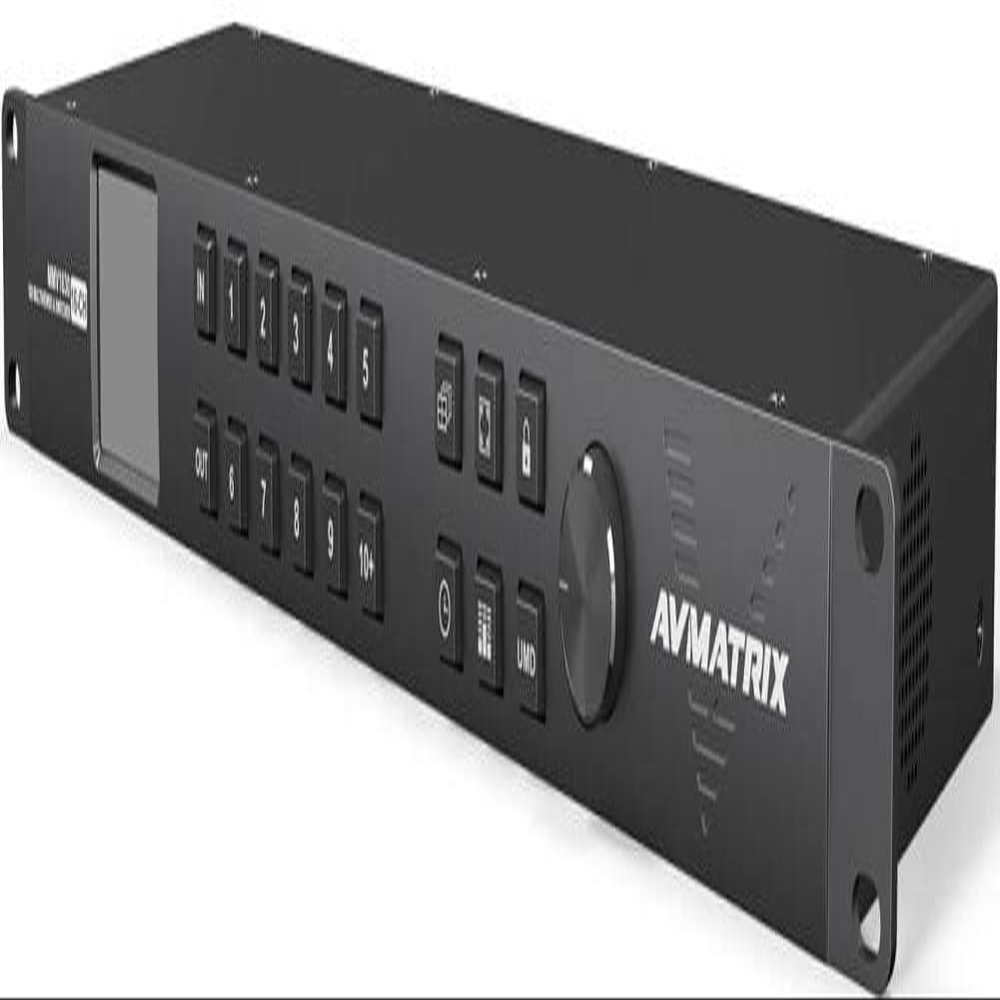

AVMATRIX MMV1630 Compact 1RU 16-Channel 3G-SDI Multiviewer with 16x16 3G-SDI Matrix Switcher, 2-3G-SDI & 1xHDMI Multiview Scaling Outputs with Audio, DC 12V 5A Power Adapter x2

Description

• 2-3G-SDI & 1xHDMI Multiview Scaling Outputs with Audio
• Full Screen and 20 Preset Multiview Layouts with Clock Display
• Time Code, UMD, Signal Status and Audio Meter Overlay
• Front Panel Buttons and Knob Control with 2.2" LCD Display
• Free PC Contrlol Software Via LAN Port

AVMATRIX MMV1630 Compact 1RU 16-Channel 3G-SDI Multiviewer with 16x16 3G-SDI Matrix Switcher, 2-3G-SDI & 1xHDMI Multiview Scaling Outputs with Audio, DC 12V 5A Power Adapter x2

The MMV1630 is the perfect solution for a large broadcast project. One machine supports two modes, 16 channel SDI multiviewer mode and 1616 SDI matrix switcher. The input signal Automatically detects SD, HD and 3G-SDI. The video format of multiview output can be selected from total 9 fomats from 720p to 1080p. Besides, 20 standard layouts with 16/12/11/10/9/8/6/4 preset in this device. You can even SOLO any input signal in full screen through the shortcut key. MMV16310 also supports UMD, audio meter, signal status and time code overlay. All functions can be quickly controlled by the PC software or front panel button & knob.

Key Features
- 16x3G-SDI Auto-detected Inputs
- 2-3G-SDI & 1xHDMI Multiview Scaling Outputs with Audio
- Full Screen and 20 Preset Multiview Layouts with Clock Display
- Time Code, UMD, Signal Status and Audio Meter Overlay
- Front Panel Buttons and Knob Control with 2.2" LCD Display
- Free PC Contrlol Software Via LAN Port
- Dual Power Design, Redundant Power
- DC 12V 5A Power Adapter x2

Specifications
- SDI Video Input: 16xSD/HD/3G-SDI/DVI-ASI (75 BNC)
- SDI Video Output: 16xSD/HD/3G-SDI/DVI-ASI (75 BNC)
- Updates and Configuration: LAN (RJ45)
- Control: Front panel button, PC software via LAN/RS-422
- SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
- Power Supply: PS-1, PS-2, power redundancy
- Voltage Range: DC 12-24V
- Power Consumption: 36W
- OperatingTemperature: 0C~60C
- StorageTemperature: -30C~70C
- Relative Humidity: 0%~90% Non-condensing
- Dimension: Standard 19" 1 rack unit
- Net Weight: 2.0kg
- Gross Weight: 3.8kg
