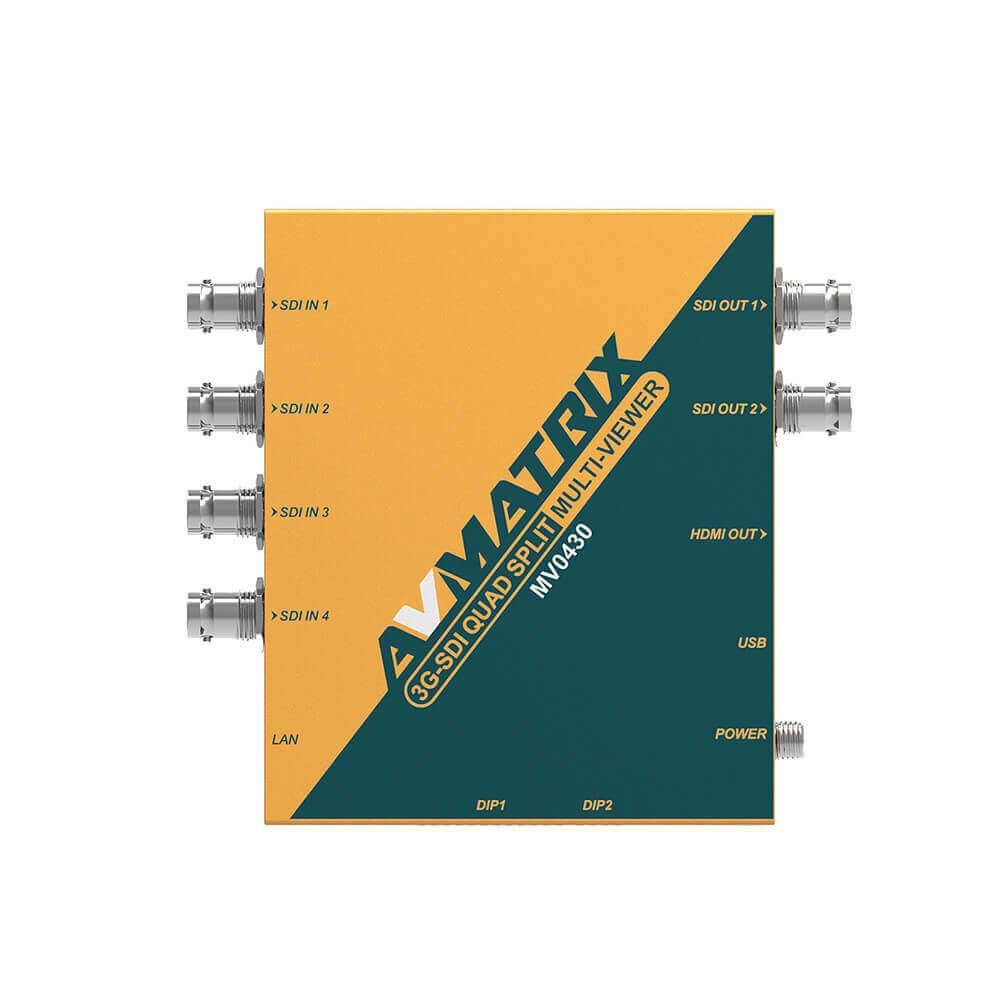

AVmatrix MV0430 Scaling 4 Channel 3G-SDI Multiviewer, 3G-SDI Scaling Converter & Multiviewer, SDI to HDMI Conversion

Description

Model: MV0430
Features:
SDI input is scaled and/or frame rateconverted to your required output standard
Four 3G-SDI inputs; one HDMI and two 3G-SDI outputs
Large variety of multiviewer layouts
For quick signal monitoring, audio bars can be overlaid on each channel Settings can be configured via the MV0430's LAN or USB interfaces, or DIP switches
Connection:
SDI Video Input SD/HD/3G-SDI
SDI Video Output SD/HD/3G-SDI
HDMI Video Output HDMI type Ax1
Formats:
SDI Input Format Support
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50 PAL
525i 59.94 NTSC
SDI Video Rate SD/HD/3G-SDI
SDI Compliance SMPTE 292M/SMPTE 259/SMPTE 424M
SDI Color Space and Precision YUV 4:2:2
SDI Auto Switching Auto selects SD, HD and 3G-SDI on input
SDI & HDMI Output Format Support
1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/25
SDI &HDMI Color Space and Precision YUV or RGB for inputs, YUV for outputs
AV Output Format Support NTSC, PAL
Size:
Dimension(LWD) 125.5mm x 104mm x 24.5mm
Weight 465g
Control:
LAN Port Configuration and firmware updates
USB Port USD keyboard Control
Power:
Power Connector Threaded locking connector
Power Consumption 6W
Voltage Range 6-24V
Environment:
Operating Temperature -20~60 Centigrade (HDMI output for 0~60 Centigrade)
Storage Temperature -30~70 Centigrade
Relative Humidity 0%~90% non-condensing
