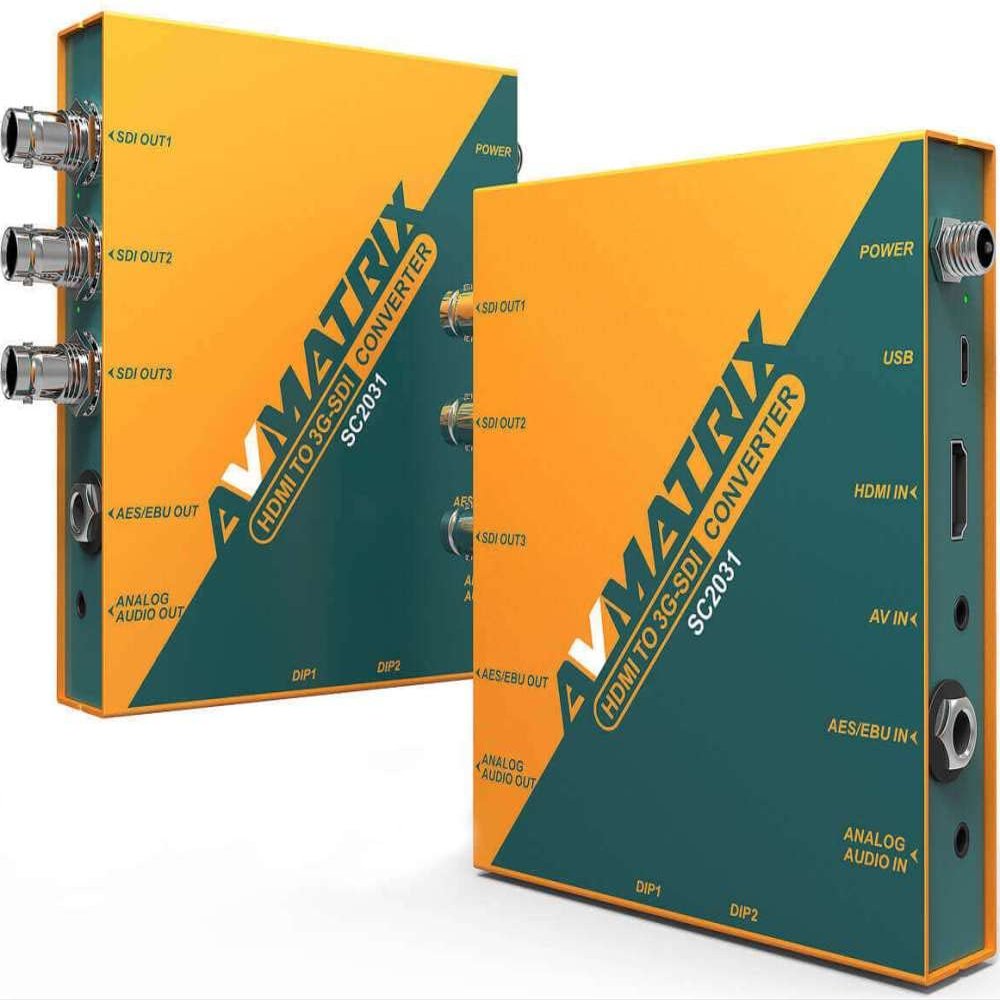

AVMATRIX SC2031 HDMI to 3G-SDI Scaling Converter, Up/Down Scaling Frame Rate Conversion, EAES/EBU or Analog Audio Embedding and De-embedding, Remote Control for PC Via USB

Description

• Input - HDMI x1, AV x1, AES/EBU x1, Analog Audio x1
• Output - 3G-SDI x3, AES/EBU x1, Analog Audio x1
• Input signal automatic detection and configuration
• LED indicators for power and signal lock
• Detachable bracket design for wall mounting

AVMATRIX SC2031 HDMI to 3G-SDI Scaling Converter, Up/Down Scaling Frame Rate Conversion, EAES/EBU or Analog Audio Embedding and De-embedding, Remote Control for PC Via USB

The SC2031 is an exquisite and professional HDMI converter to convert HDMI or AV signals to triple SDI signals up to 1080P60Hz. The format of the output can realize pass through or up/down scaling, frame rate conversion and de-interlacing function. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC2031 is your ideal choice for broadcasting and AV post production applications.

Key Features
- Input: HDMI x1, AV x1, AES/EBU x1, Analog Audio x1
- Output: 3G-SDI x3, AES/EBU x1, Analog Audio x1
- Up/down scaling frame rate conversion
- EAES/EBU or analog audio Embedding and De-embedding
- Input signal automatic detection and configuration
- LED indicators for power and signal lock
- Easy control via DIP switches
- Remote control for PC via USB
- Threaded Lock Power Connector
- Detachable bracket design for wall mounting

Specifications
- HDMI Video Input: 1x HDMI type-A
- AV Input: 1x 1/8" (3.5mm) jack
- AES/EBU Digital Audio Input: 1x 1/4" (6.35mm) TRS jack
- Analog Audio Input: 1x 1/8" (3.5mm) jack
- SDI Video Output: 1x SD/HD/3G-SDI
- AES/EBU Digital Audio Output: 1x 1/4" (6.35mm) TRS jack
- Analog Audio Output: 1x 1/8" (3.5mm) jack
- HDMI Color Space: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
- CVBS Input: NTSC, PAL
- SDI Video Rates: SD/HD/3G-SDI
- SDI Compliance: SMPTE 292M/SMPTE 259M/SMPTE 424M
- Power Connector: Threaded locking
- Voltage Range: DC 6-24V
- Power Consumption: 5W
- OperatingTemperature: -20C~60C
- StorageTemperature: -30C~70C
- Relative Humidity: 0%~90% Non-condensing
- Dimension: 125.5 x 104 x 24.5mm
- Net Weight: 485g
