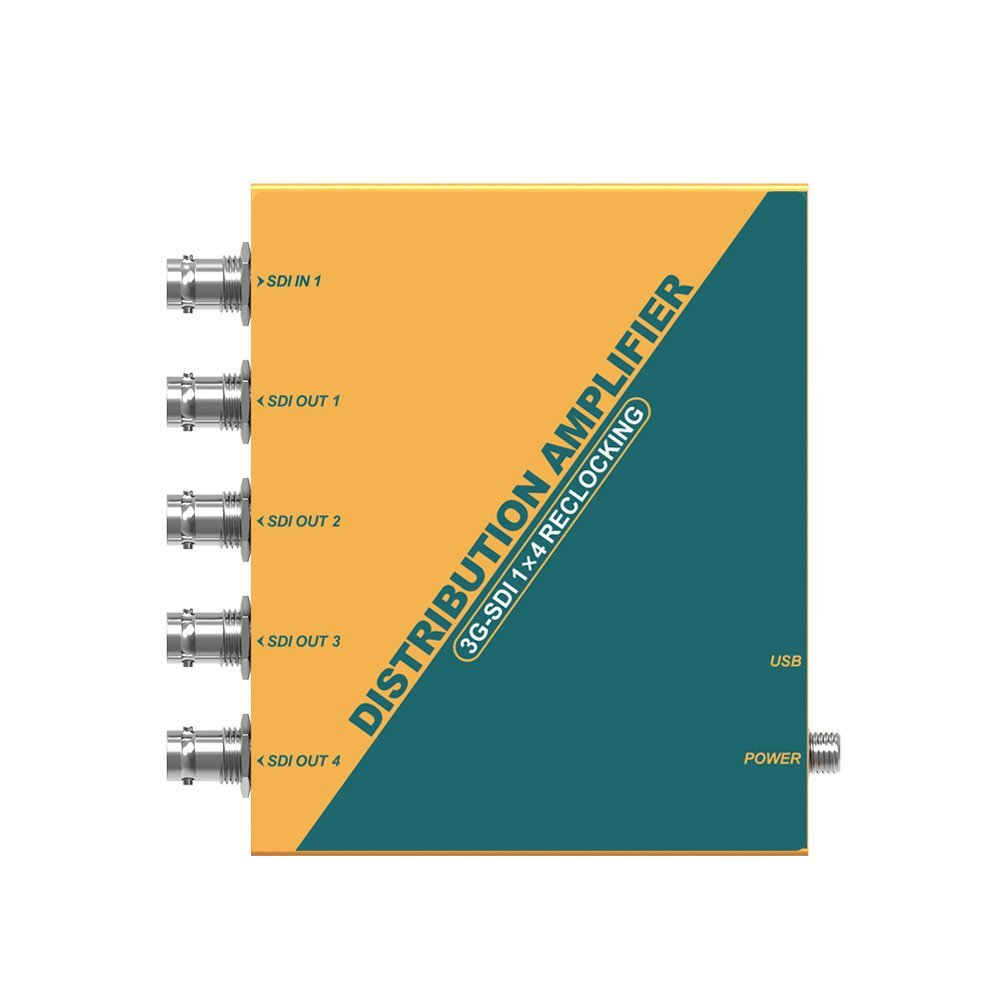

AVMATRIX SD1141 1x4 3G-SDI Reclocking Distribution Amplifier; Automatically Detects SD, HD and 3G-SDI; 4 Buffered and Re-clocked Outputs; 3G/HD/SD-SDI Multi-rate Signal Processing

Description

• Automatically detects SD, HD and 3G-SDI
• Output 2 & 4 support DVB-ASI signal
• Automatic cable equalization and signal retiming
• Pass all ancillary data and embedded audio
• Detachable bracket design for wall mounting

AVMATRIX SD1141 1x4 3G-SDI Reclocking Distribution Amplifier; Automatically Detects SD, HD and 3G-SDI; 4 Buffered and Re-clocked Outputs; 3G/HD/SD-SDI Multi-rate Signal Processing

The SD1141 is a miniature, low-cost 14 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.

Key Features
- Automatically detects SD, HD and 3G-SDI
- 4 buffered and re-clocked outputs
- 3G/HD/SD-SDI multi-rate signal processing
- Output 2 & 4 support DVB-ASI signal
- Automatic cable equalization and signal retiming
- Pass all ancillary data and embedded audio
- Micro USB and DC Power
- Detachable bracket design for wall mounting

Specifications
- Video inputs: 1x 3G/HD/SD-SDI
- Video outputs: 4x 3G/HD/SD-SDI (output 2 & 4 support DVB-ASI)
- SDI input format: SDI Input (10/12-Bit 4:4:4/4:2:2 RGB, YUV); DCI 2K: 23.98/24/25/29.97/30 fps; DCI 2KPsF: 23.98/24/25/29.97/30 fps; 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps; 1080PsF: 23.98/24/25/29.97/30 fps; 1080i: 50/59.94/60 fps; 720p: 50/59.94/60 fps; PAL: 50 fps; NTSC: 59.94 fps
- SDI Video Rate: SD/HD/3G-SDI
- SDI Compliance: SMPTE 259M/292M/296M/372M/424M/425M
- ASI Compliance: DVB-ASI
- SDI Auto Switching: Auto selects SD, HD, and 3G-SDI on input
- Color Space: RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10it/12bit XYZ 4:4:4 12bit
- Power Connector: Micro USB, Threaded locking connector
- Voltage Range: USB 5V, DC 5~17V
- Power Consumption: 1W
- OperatingTemperature: -20C~60C
- StorageTemperature: -30C~70C
- Relative Humidity: 0%~90% Non-condensing
- Dimension: 125.5 x 104 x 24.5mm
- Net Weight: 512g
