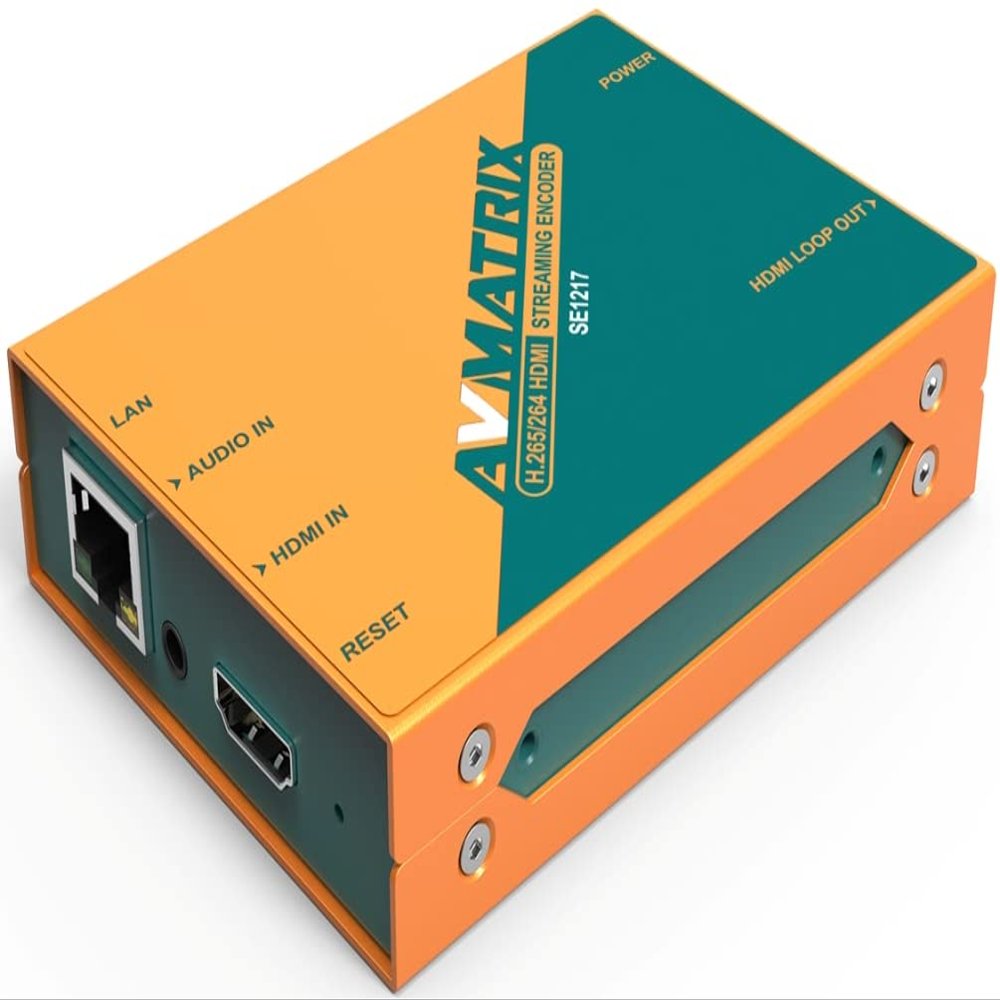

AVMATRIX SE1217 SDI Streaming Encoder; Supports Stream Encode Protocol, Up to 1080p60hz; Video and Audio Streaming or Single Audio Streaming; Image and Text Overlay; Mirror Image & Upside-Down Image

Description

• 1x HDMI input, 1x HDMI loop out, 1x Analog audio input
• Supports H.265/H.264 stream encode protocol, up to 1080p60hz
• RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
• Video and audio streaming or single audio streaming
• Live stream with no need for connecting a computer

AVMATRIX SE1217 H.265/H.264 HDMI Streaming Encoder; 1x HDMI Iinput, 1x HDMI Loop Out, 1x Analog Audio Input; Supports H.265/H.264 Stream Encode Protocol, Up to 1080p60hz; Image and Text Overlay

Key Features
- 1x HDMI input, 1x HDMI loop out, 1x Analog audio input
- Supports H.265/H.264 stream encode protocol, up to 1080p60hz
- Dual-stream (main stream and sub stream)
- RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
- Video and audio streaming or single audio streaming
- Image and text overlay
- Mirror image & upside-down image
- Live stream with no need for connecting a computer

Specifications
- Video Input: HDMI Type A x1
- Video Loop Out: HDMI Type A x1
- Analog Audio In: 3.5mm (line in) x1
- Network: RJ-45 x1(100/1000Mbps self-adaptive Ethernet)
- HDMI In Format Support: 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976; 1080i 50/59.94/60; 720p 60/59.94/50/30/29.97/25/24/23.98; 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
- Video Coding: H.265/H.264
- Video Bitrate: 16Kbps ~ 12MKbps
- Audio Coding: ACC/MP3/MP2/G711
- Audio Bitrate: 24Kbps ~ 320Kbps
- Encoding Resolution: 1920x1080, 1680x1056, 1280x720, 1024x576, 960x540, 850x480, 720x576, 720x540, 720x480, 720x404, 720x400, 704x576, 640x480, 640x360
- Encoding Frame Rate: 5-60fps
- Network Protocols: HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
- Configuration Management: Web configuration, Remote upgrade
- Consumption: 5W
- Temperature: Working temp: -10C~60C, Storage temp: -20C~70C
- Dimension (LxWxD): 104x75.5x24.5mm
- Net weight: 310g
- Gross weight: 690g
- Accessories: 12V 2A power supply; Mounting bracket for optional
