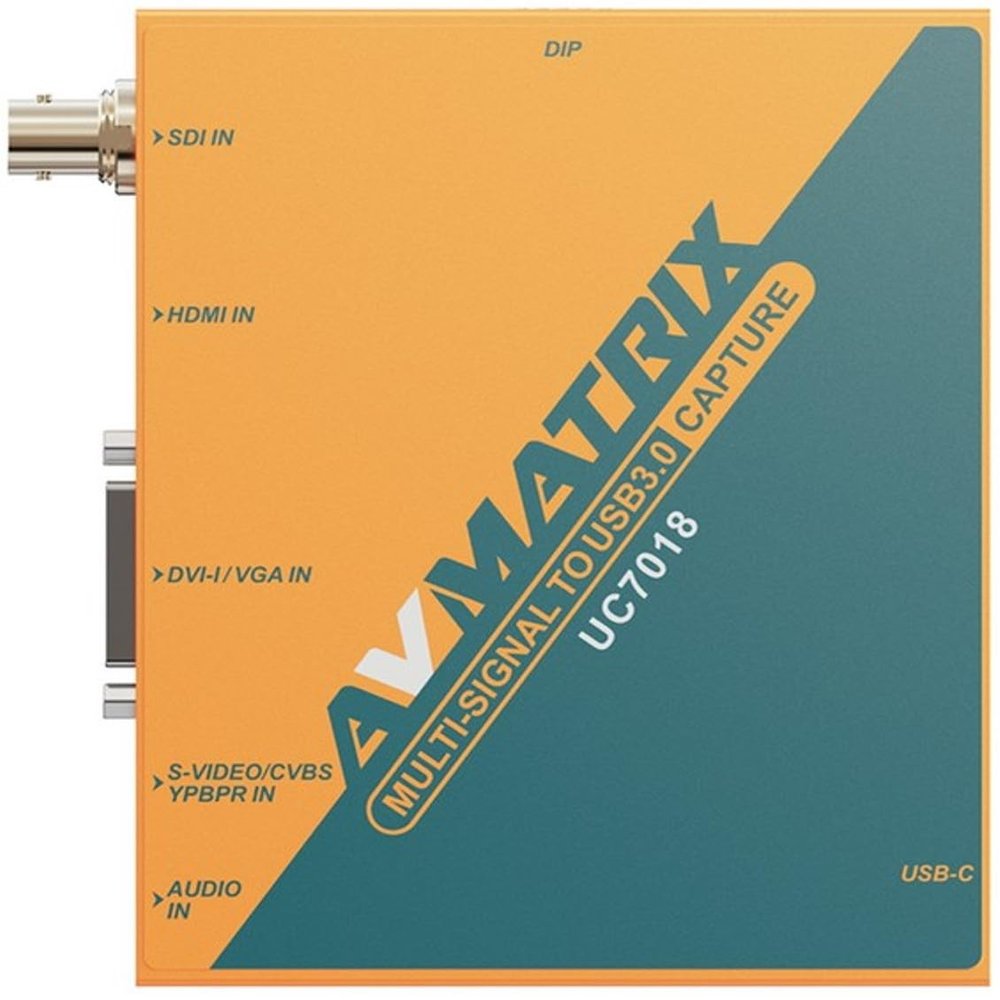

AVMATRIX UC7018 Multi-Signal to USB3.0 Capture Box, Automatic Input Signal Detection Up to 1080p60, Easily Controlled by Dip Switches and PC Software, USB Type-C, Plug and Play

Description

• Automatic input signal detection up to 1080p60
• USB Type-C for capture, power and upgrades
• Uncompressed audio and video capture, UVC and UAC compliant, supports RGB, YUY2, NV12 With video and power signal LED indicators
• Easily controlled by dip switches and PC software
• Plug and play, no driver or power supply required

AVMATRIX UC7018 Multi-Signal to USB3.0 Capture Box, Automatic Input Signal Detection Up to 1080p60, Easily Controlled by Dip Switches and PC Software, USB Type-C, Plug and Play

UC7018 Multi-signal to USB 3.0 capture box is a broadcast-grade, professional, and convenient device designed for capturing uncompressed SDI/HDMI/DVI-I/VGA/CVBS/S-VIDEO/YPbPr input signals via USB 3.0 for audio/video capture, live streaming, and recording on a computer. It supports video resolutions up to 1080p60Hz and is compatible with various systems, including Windows and Linux. UC7018 is ideal for live broadcasting, streaming, professional audio and video work, web conferencing, video production.

KEY FEATURES
- Automatic input signal detection up to 1080p60
- Plug and play, no driver or power supply required
- Uncompressed audio and video capture, UVC and UAC compliant, supports RGB, YUY2, NV12
- With video and power signal LED indicators
- USB Type-C for capture, power and upgrades
- Easily controlled by dip switches and PC software
- Compatible with Windows, Linux and MacOS
- Compatible with OBS, ZOOM, Teams, Twitch, Vmix and other live streaming softwares

SPECIFICATIONS
- Input: SDI/HDMI/DVI-I/VGA/CVBS/S-VIDEO/YPbPr input, analog audio input
- Output: USB 3.1 Gen1 (USB3.0) output
- Power: USB Type-C
- Power Consumption: 5W5V, 1A
- Voltage: 5V
- Operating Temperature: -20~60C
- Storage Temperature: -30~70C
- Relative Humidity: 20~90% RH (non-condensing)
- Dimension: 104 x 125.5 x 24.5mm
- Weights: Net weight: 473g, Gross Weight: 830g
