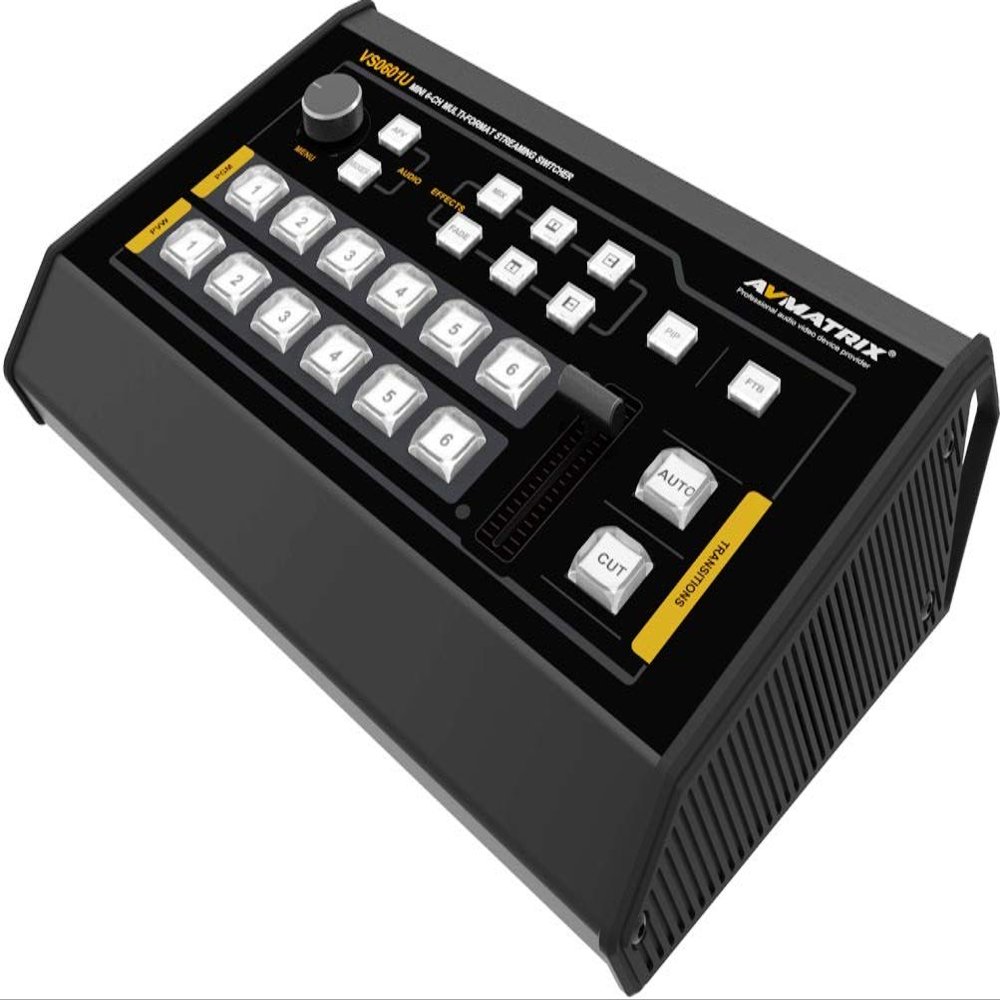

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-format Streaming Switcher

Description

• AVMATRIX VS0601U Mini 6CH 4SDI and 2HDMI Inputs Multi-Format Streaming Switcher with 1USB Type-C Output and GPIO Interface for Tally System
• USB Capture For StreamingThe new VS0601U features with an added built-in USB Type-C output, when connecting with PC, it will work like a webcam for capturing uncompressed video and audio quality and streaming your production to various software and platforms. No driver needed, and compatible with Windows 7/8/10, Linux and Mac OS
• Various Input&OutputThe VS0601U has 6 channel inputs including 4SDI&2HDMI. The outputs of it will satisfy shooters which includes 1USB Type-C output, 1HDMI PGM outputs, 1HDMI multiview outputs and 1SDI AUX output that can be selected as PGM or PVM.
• Transition EffectsTransition between PVW and PGM with WIPE/MIX/FADE effect through T-Bar&AUTO.
• Other FunctionsSupport audio mixing and AFV mode. GPIO for Tally, FTB for emergency. Package Include1VS0601U Switcher, 1Portable Handbag, 112V DC Power Adapter.

VS0601U
Mini 6CH SDI/HDMI Multi-format Streaming Switcher
Uncompressed capture for live streaming, comply with UVC & UAC
6 channel inputs: 4xSDI & 2XHDMI
1 xUSB type-C output, 2xSDI & 1 xHDMI PGM outputs, 1 xSDI & 1 xHDMI multiview outputs
1 xSDI AUX output, can be selected as PGM or PVW
Multi-format input auto-detected and PGM outputs format selectable
T-Bar/ AUTO/ CUT transitions
Mix/ Fade/ Wipe transition effects
PIP mode size and position adjustable
Support audio MIXING and AFV mode
GPIO for Tally, FTB for emergency
Inputs
Video Inputs: 43G/HD/SD-SDI, 2HDMI
SDI Input Format:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50 PAL, 525i 59.94 NTSC
HDMI Input Format:
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i 50/59.94/60
720p 60/59.94/50/30/29.97/25/24/23.98
576i 50, 576p 50
Outputs PGM Outputs: 23G/HD/SD-SDI; 1HDMI Type A
PGM Output Format: 1080p 60/50/30/25/24 1080i 50/60
Multiview Output: 13G/HD/SD-SDI; 1HDMI Type A
Multiview Output Format: 1080p 60
Audio Audio Input: 13.5mm Stereo audio; 1RCA(L/R) Audio Output: 1RCA(L/R); 3.5mm 1 Stere audio
Others
Operation Temperature: -20~60
Storage Temperature: -30~70
Operation Humidity: 20%~70%RH Dimension: 249.2172.355mm
Weight: 1kg
Accessories
1Power Supply (DC12V 5A)
1User Manual
