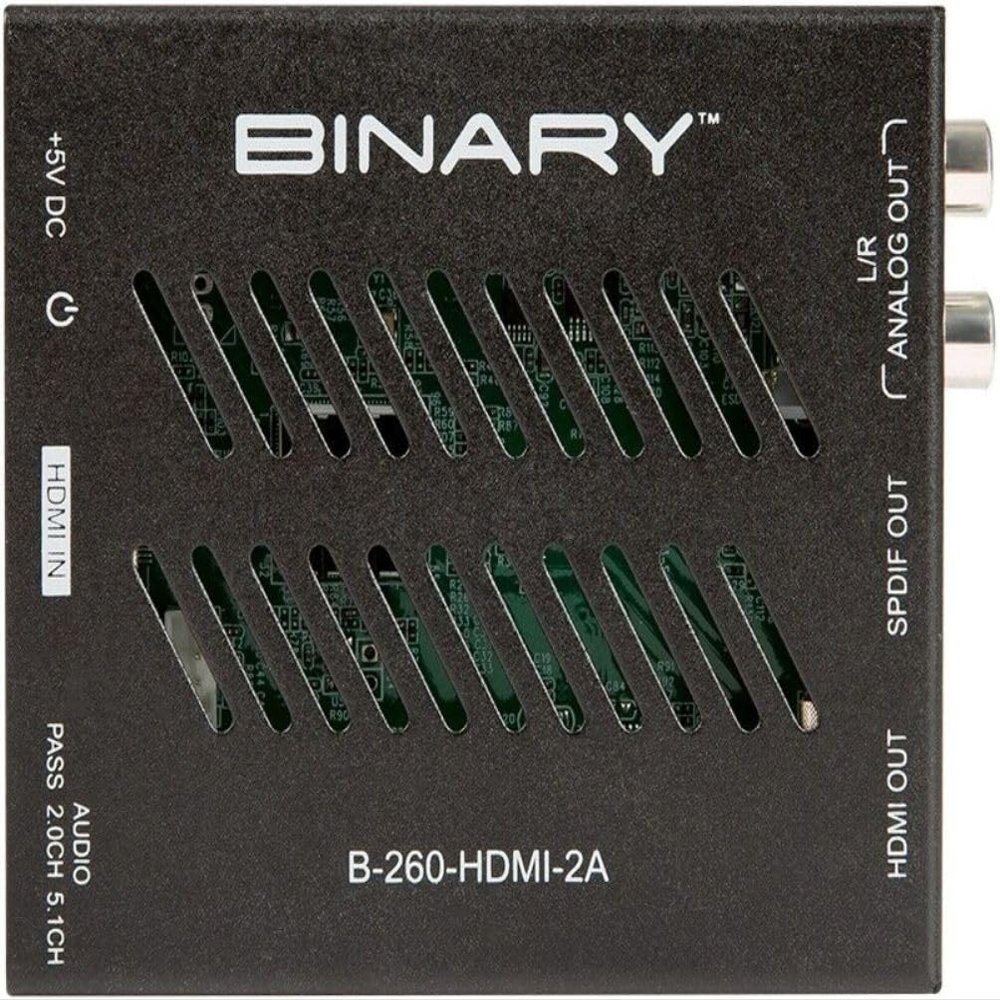

Binary B-260-HDMI-2A 260-Series 4K HDR Audio Extractor, Support HDMI Input and Output Resolutions up to 4K@60Hz 4:4:4 8-bit, Built-in CEC Controller to Control Display to be Powered On or Off

Description

• Support HDMI input and output resolutions up to 4K@60Hz 4:4:4 8-bit
• Automatic input cable equalization and signal regeneration compensation
• HDMI audio de-embedded out with S/PDIF (Toslink) and L/R audio (RCA, white and red)
• Third-gear slide switch for audio setting in EDID:pass-through, 2.0ch and 5.1ch
• Built-in CEC controller to control display to be powered on or off

Binary B-260-HDMI-2A 260-Series 4K HDR Audio Extractor, Support HDMI Input and Output resolutions up to 4K@60Hz 4:4:4 8-bit, Built-in CEC Controller to Control Display to be Powered On or Off

The B-260-HDMI-2A is a 4K audio extractor with resolutions supported up to 4K@60Hz (Chroma sub-sampling 4:4:4 8-bit) and HDCP 2.2 compatibility. It's digital or analog audio output allows audio to be de-embedded from HDMI input and sent to audio distribution system, such as an Amplifier. Third-gear slide switch for audio setting in EDID has 3 EDID presets (pass-through, 2.0ch and 5.1ch) for EDID management.

KEY FEATURES
- Support HDMI input and output resolutions up to 4K@60Hz 4:4:4 8-bit
- Support HDCP 2.2
- HDMI audio de-embedded out with S/PDIF (Toslink) and L/R audio (RCA, white and red)
- Third-gear slide switch for audio setting in EDID:pass-through, 2.0ch and 5.1ch
- Built-in CEC controller to control display to be powered on or off
- Automatic input cable equalization and signal regeneration compensation

SPECIFICATIONS
- Input: 1x HDMIN IN
- Output: 1x HDMI OUT
- Maximum Data Rate: 18Gbps
- Operating Temperature: 32F to 104F
- Storage Temperature: -4F to 140F
- Humidity: 10% to 90%, non-condensing
- Power Supply: DC 5V 1A
- Power Consumption: 2.88W
- Dimensions: 3.15"W x 3.54"H x 0.87"D
- Weight: 0.5 lb
