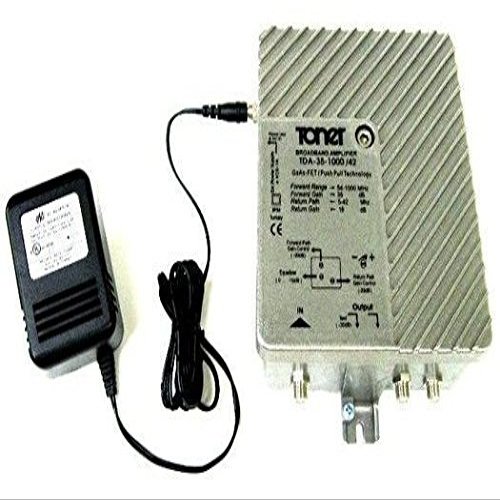

Cable TV Distribution Amplifier, Toner Cable TDA35-1000

Description

• Diecast aluminum housing for heat dissipation
• GaAs-Fet push pull for high output levels with low distortion
• 1 GHz forward bandwidth
• Frequency Range 54-1000 MHz Foward, 5-42 MHz Reverse
• Gain and equalization controls

Toner Cable's TDA35-1000 two-way apartment house type amplifiers with active return are broadband indoor GaAs-Fet / Push Pull distribution amplifiers designed for 1 GHz RF distribution systems such as those in Cable Television Apartments, Hotels, Hospitals and other applications where a high quality, low noise figure amplifier is necessary to amplify the signals in both the forward and return paths. Two models are available with two different reverse signal bandwidths 5-42 MHz and 5-65 MHz. These are all designed with flat operational gain of 35 dB in the forward bandwidth and 18 dB in the reverse bandwidth. They have an input equalizer in the forward bandwidth for balancing, a forward 20 dB gain control and a 20 dB reverse gain control. The amplifiers are powered by a plug in wall type 6 VDC power transformer that is available in either 117 or 230 volt. Internal power supply models are also available with item codes as TDA35-1000/65/IP.
