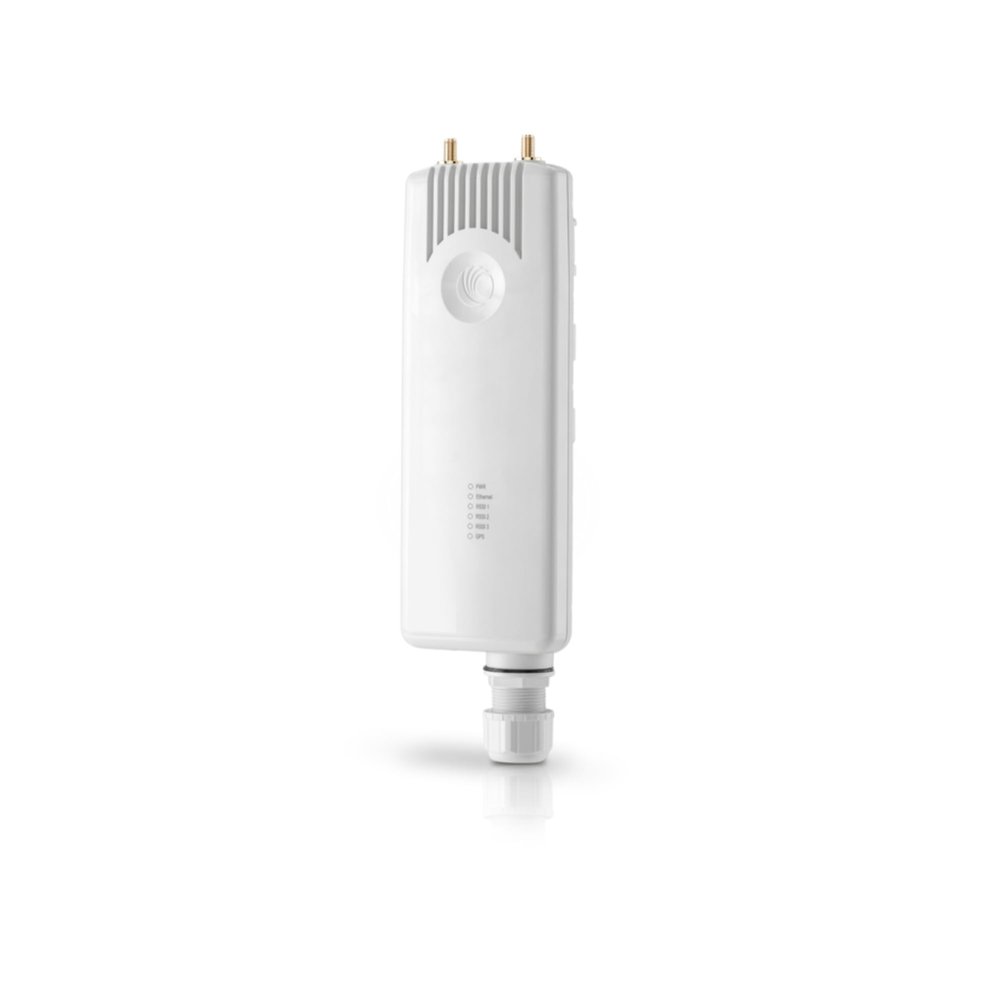

Cambium Networks - C058910C122A - ePMP Force 300 CSM Radio, 5GHz Connectorized Subscriber Module, FCC. US Power Cord

Description

• Cambium ePMP Force 300 CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data
• The Force 300 CSM offers a versatile solution enabling a wide variety of deployment models including high-gain parabolic dishes
• The ePMP Force 300 CSM supports channel size configurations from 20 MHz up to 80 MHz and modulations up to 256 QAM
• Product Specifications: Channel Spacing: Configurable in 5 MHz Frequency Range: Wide Band Operating 4
• 910 - 5

Cambium ePMP Force 300 CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data. The Force 300 CSM offers a versatile solution enabling a wide variety of deployment models including high-gain parabolic dishes. The ePMP Force 300 CSM supports channel size configurations from 20 MHz up to 80 MHz and modulations up to 256 QAM. Product Specifications: Channel Spacing: Configurable in 5 MHz Frequency Range: Wide Band Operating 4.910 - 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations Channel Width: 20 / 40 / 80 MHz MAC Layer: Cambium Proprietary Physical Layer: 2x2 MIMO/OFDM Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH 1Q with 802.1p priority ARQ: Yes Nominal Receive Sensitivity (w/FEC) @20 MHz Channel: MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @40 MHz Channel: MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @80 MHz Channel: MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain) Modulation Levels (adaptive): MCS0(BPSK)to MCS9 (256QAM5/6) Transmit Power Range: 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) Surge Suppression: 1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A) Environmental Temperature: Weight: Wind Survival: Dimensions (Dia x Depth) Pole Diameter Range Power Consumption: Input Voltage: 30 Watts nominal (14 to 30V range) Encryption: 128-bit AES (CCMP mode) Frequency Range: 4.910 5.970 MHz Antenna Type: Connectorized Connectors: 2 x 50 ohm, RP-SMA (Reverse Polarity SMA) Compatible with RF-Elements TwistPort Adaptor for ePMP
