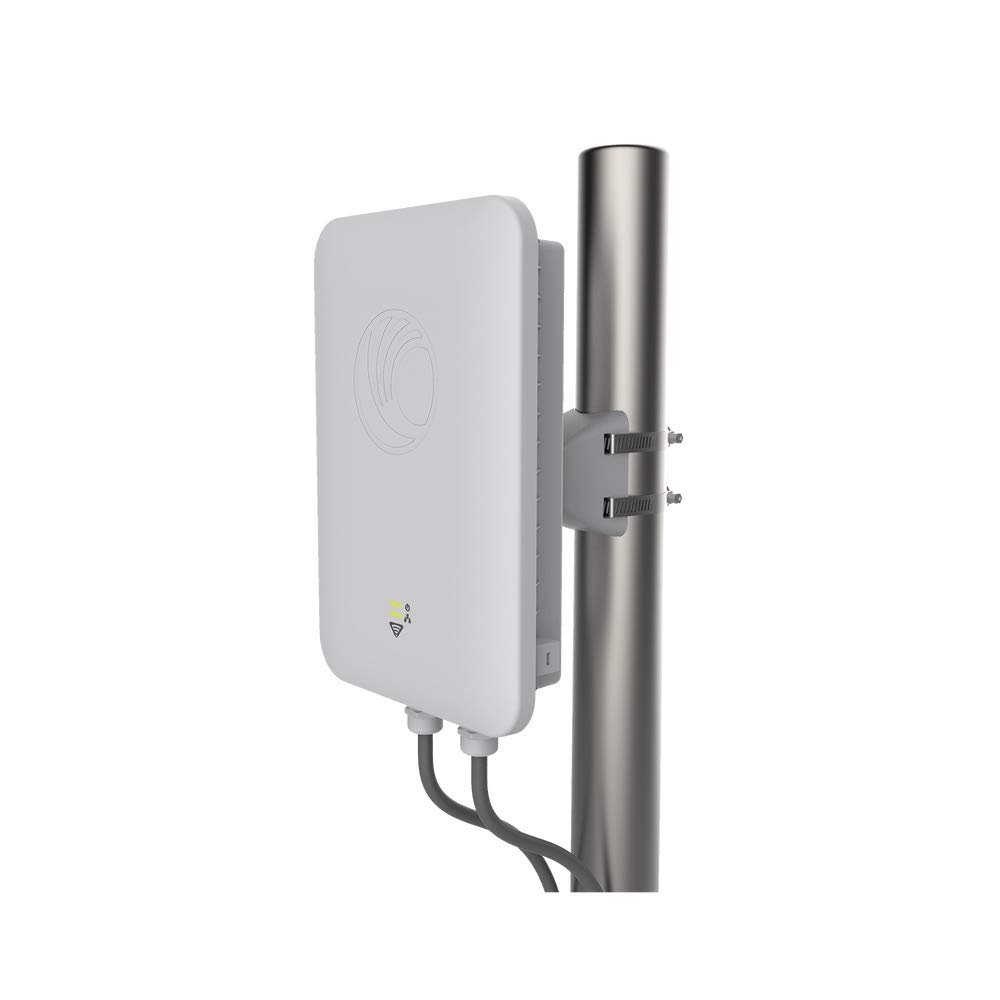

Cambium Networks | cnPilot E501S Outdoor Sector IP67 Wall-/Pole-Mount Access Point | PL-501S000A-US

Description

• The Cambium Networks PL-501S000A-US is a cnPilot outdoor sector access point
• With 90 to 120 coverage, this AP is perfect for long range coverage across large areas
• Includes an electrical heater for cold start and LTE coexistence filters for added accessibility
• Product Features: Supports 256 clients, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more Rapidly setup multi-hop mesh networks by either dedicating one
• 3af camera or Cambium's PMP 450 or ePMP backhaul SMs Dual on-board Active/Standby memory banks ensure higher availability

The Cambium Networks PL-501S000A-US is a cnPilot outdoor sector access point. With 90 to 120 coverage, this AP is perfect for long range coverage across large areas. Includes an electrical heater for cold start and LTE coexistence filters for added accessibility. Product Features: Supports 256 clients, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more Rapidly setup multi-hop mesh networks by either dedicating one radio for mesh backhaul, or using both bands for client access simultaneously Aux PoE port offers PoE out, perfect for powering a standard 802.3af camera or Cambium's PMP 450 or ePMP backhaul SMs Dual on-board Active/Standby memory banks ensure higher availability. Can store two versions of the software Product Specifications: Frequency Bands: 2.4GHz: 2.4 - 2.4835GHz, Channels 1 - 13 (ETSI/CE), Channels 1 -11 (US), 5GHz: 5.15 - 5.85GHz SSID Security: WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) and WPA2-Preshared-keys, Open Max SSID: 16 Max Concurrent Clients: 256 Max Range: 213m (700ft); Actual range will vary based on local RF conditions and client capability, Mesh: 2.4GHz: 3000m (9840ft), 5GHz: 1500m (4900ft) Max Data Rates: 1.01Gbps Ethernet Ports: Dial Gigabit Ethernet ports Antenna: Dual polarized. 2x2 MIMO. Integrated Sector antenna Antenna Gain: 2.4GHz: 10.5dBi, 5GHz: 13dBi Power Supply: 56V/30W Gigabit passive PoE injector PoE Out: Aux port: capable of 802.3af power out or canopy power Transmit Power: 2.4GHz: 29dBm, 5GHz: 28dBm Power Consumed: Typical: 8W, Max: 12.95W Dimensions: 30 x 20.4 x 6.5cm (without bracket) Weight: Without Bracket: 881g, With Bracket: 1063g Operating Temperature: -30 to 60C Mounting Options: Pole mount bracket (included) or wall-mount (with included bracket or without) LTE Co-Existence: Special filter for rejecting interference on 2.4GHz from adjacent LTE bands 38, 40 Physical Security: Kensington Lock Bracket Visual Status: (2) multi-color LEDs indicating Access Point
