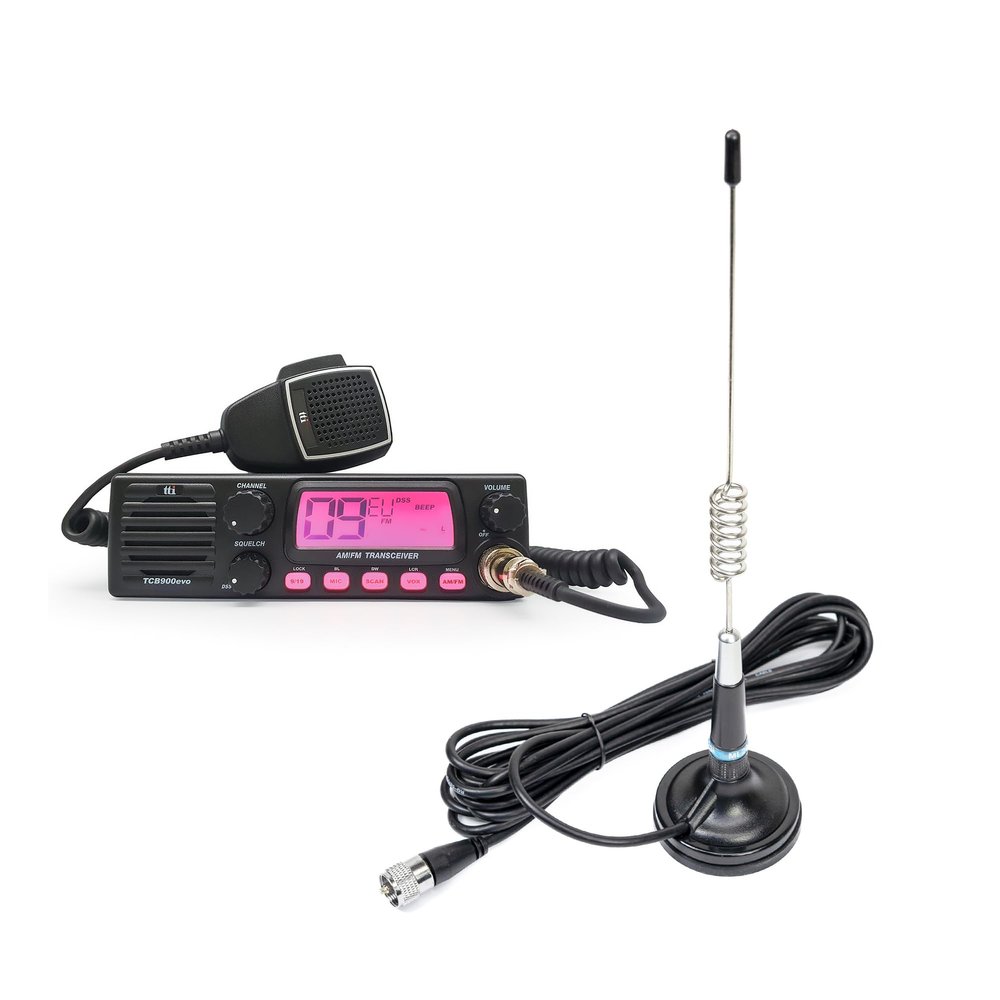

CB TTi TCB-900 EVO Radio Station kit + PNI ML29 CB Antenna, Length 34 cm

Description

• The CB TTi TCB-900 EVO radio station is equipped with an automatic squelch system, also known as an extremely high-performance Dynamic Squelch System, which allows a very good filtering of conversations and receptions from CB (Citizen Band).
• The TTi TCB-900 EVO radio station is equipped with a front speaker, again an advantage if it will be mounted on the dashboard, or in the front panel of the cabin of a truck, trailer, or coach.
• Now radio amateurs can also benefit from the advantages of this product, the TTi TCB-900 radio station having 11 bands usable in Europe and beyond.
• The VOX function with which this station is equipped allows hands-free communication with the microphone capturing the voice from a distance. The function is also accompanied by a very useful sensitivity adjustment in case the distance to the microphone varies.
• 34 cm long and with a 70 mm magnetic base, the PNI ML29 can be an alternative when you are looking for a small, economical and easy to install car antenna.

PNI-TCB-900EVO - CB radio station TTi TCB-900 EVO, DSS, SQ, Dual Watch, Mic Gain, 12V-24V, Bluetooth dongle connector
Product identification Producer TT Product code PNI-TCB-900EVO Product type CB radio station General characteristics Model Portable Emission band type AM/FM channels 40 Frequency 26.965 - 27.405 MHz Microphone type (pins) 6 pins Speaker audio power 2W Sensitivity (20dB SINAD) 0.7 for 10dB (S+N)/N in AM mode / 0.7 for 20dB SINAD in FM mode Audio signal distortion less than 8% @ 1KHz Emission power 4 W feeding 12 V / 24 V Absorbed current max. 1.6A Dimensions (W x H x D / Weight) 170 x 90 x 50 mm / 764 gr 1DIN assembly Yes Special features Dual Watch Yes Channel scan Yes Small Gain Yes ASQ Yes Lock the keyboard Yes LCR - the last selected channel Yes ASQ adjustable Emergency channels Yes Multicolor screen Yes VOX Yes Manual squelch Yes Accessory connection 1 pin plug Operating temperature -26C ~ +80C Key sound Yes PTT (Push To Talk) Yes Screen lighting Yes Key lighting Yes Rear panel connections Additional speaker connection Yes Bluetooth dongle connection Yes The package contains Radio station Microphone Support and screws for holding the radio station Microphone support and screws Power cord Cigarette lighter plug User manual 1DIN mounting case

PNI-ML29 - PNI ML29 CB antenna, length 34 cm, with included magnet diameter 70 mm and RG58 cable
Product identification Product code PNI-ML29 Working band CB Product color (spike) Silver General characteristics Working frequency 26 - 28 Mhz Maximum power applied 500W Minimum SWR in the center of the band less than 2:1 Length Spike length: 230 mm Impedance 50 Ohms Material Copper, Stainless steel Connector type UHF dad Cable length 4 m Weight 250 gr Size 340 x 70 x 70 mm (magnetic base included) Gain >3 dBi Polarization vertically Working distance 7 km Magnetic base 70 mm Operating temperature -26C ~ +80C The package contains Radio station antenna RG58 cable 4 meters Plug PL259 Magnetic base
