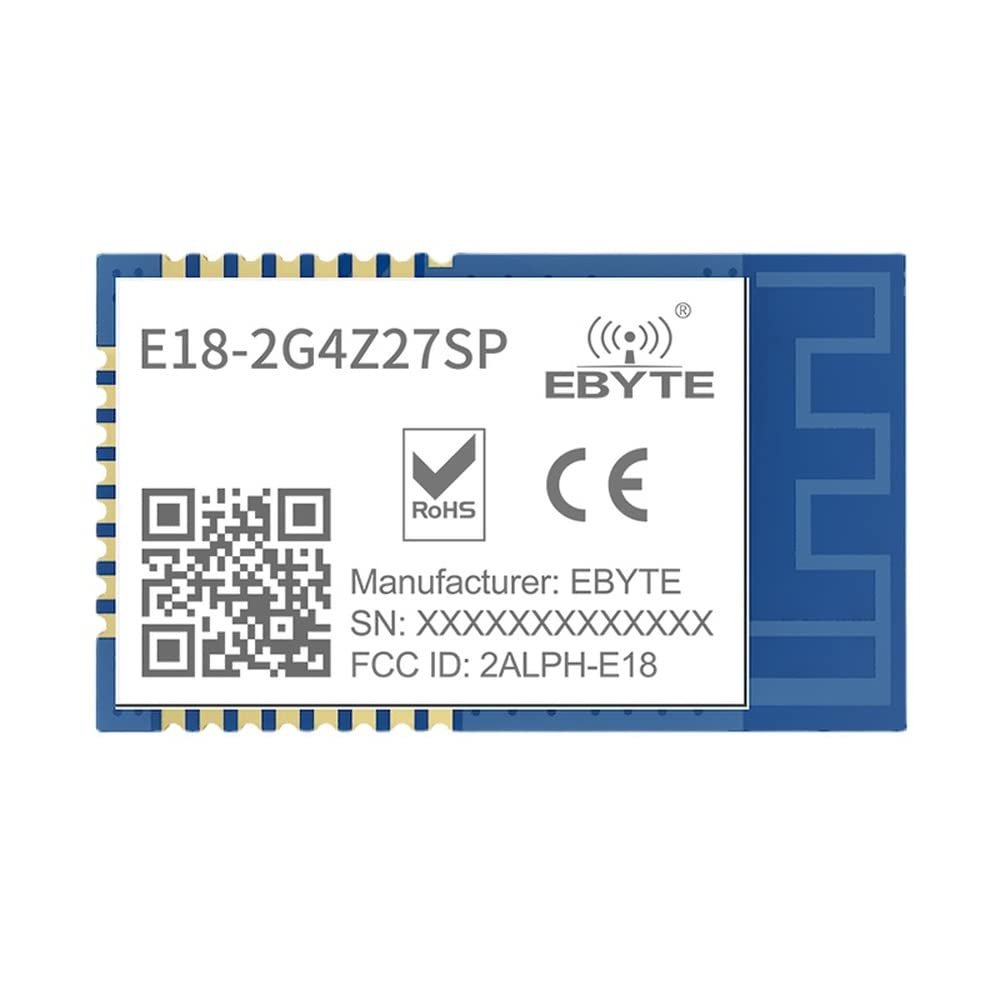

CC2530 ZigBee 3.0 Ad Hoc Mesh Network Wireless Module E18-2G4Z27SP 2.4GHz 27dBm PA+LNA SMD PCB Antenna Zigbee Module for Smart Home

Description

• E18-2G4Z27SP is a small size 2.4GHz ZigBee wireless module designed and produced by Ebyte, SMD, PCB on-board antenna, transmission power 500mW, pin spacing 1.27mm, suitable for a variety of application scenarios (especially smart Home).
• E18-2G4Z27SP adopts the original imported CC2530 radio frequency chip from Texas Instruments (TI). The chip integrates 8051 single-chip MCU and wireless transceiver, and built-in PA+LNA, which greatly expands the communication distance and improves communication stability. And suitable for ZigBee design and 2.4GHz IEEE 802.15.4 protocol.
• The module leads to all the IO ports of the single-chip MCU, which can be used for multi-directional development.
• Applications-Smart home and industrial sensors, etc; Security system, positioning system;Wireless remote control, drone;Wireless game remote control;Healthcare products;Wireless voice, wireless headset;Automotive industry applications.
• Warranty: We have 1 year warranty. If you need user manual or any problems contact with us free.

[IC] : CC2530
[Frequency] : 2.40~2.48GHz
[Power] : 27dBm
[Distance] : 800m
[Size] : 16*27mm
[Antenna ] : PCB on board antenna
[Introduce] : E18-2G4Z27SP is a small size 2.4GHz ZigBee wireless module designed and produced by Ebyte, SMD, PCB on-board antenna, transmission power 500mW, pin spacing 1.27mm,suitable for a variety of application scenarios (especially smart Home).
