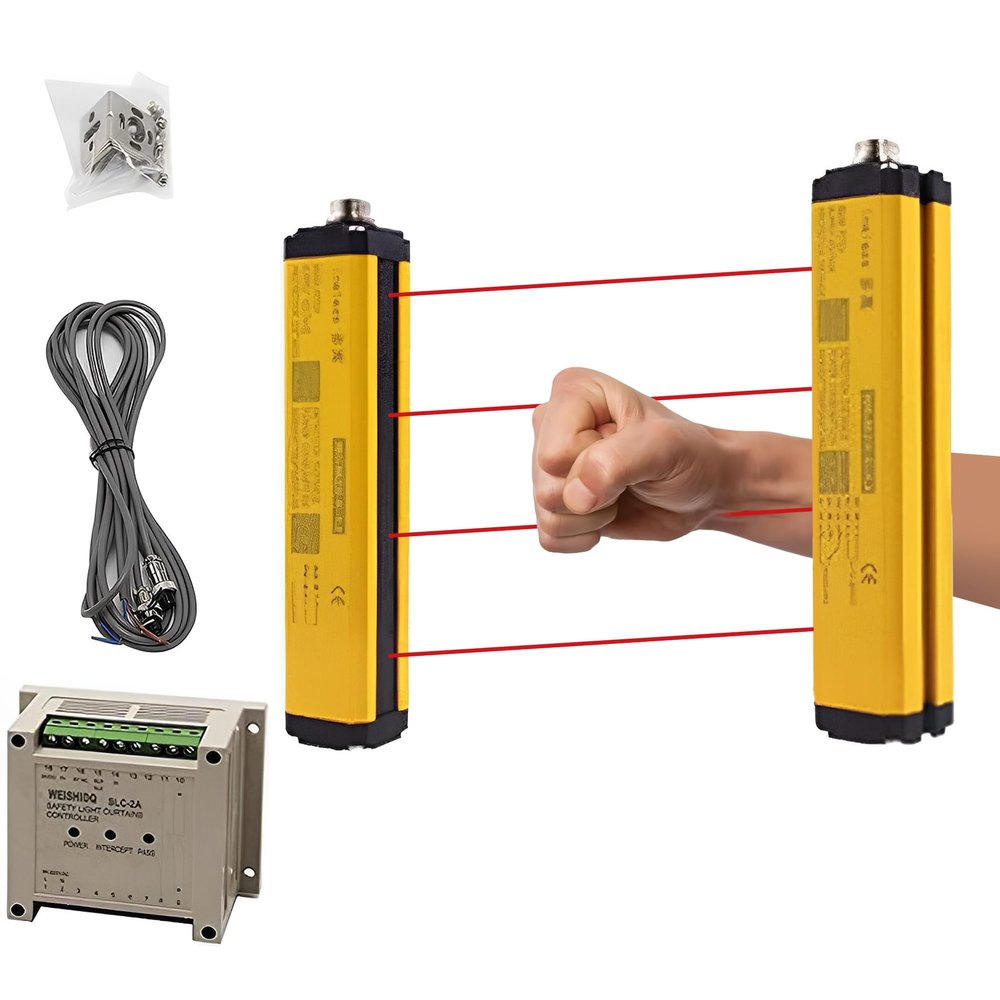

CGOLDENWALL Safety Light Curtain Sensor Light Screen Sensor Infrared Radiation Detector Safety Grating Punch Protector Hand Protection (Beams: 4, Beam Pitch: 40mm)

Description

• One Year Warranty: CGOLDENWALL Safety Light Curtain Sensor Light Screen Sensor Sensing height is Customizable,And you can enjoy One Year Warranty and all life technical support. If there is anything we can help with, feel free to contact us.
• Fast Response Capability:<20ms and Meets International Electrotechnical Society IEC61496-1/2 standard, designed according to European standards, and has passed CE certification.
• Usage:Light curtain protection device emits infrared light, resulting in a protective screens, when the light curtain is blocked, the device emits a blackout signal, control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security.
• Application: It is suitable for paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, such as security monitoring, can be reliably protect the safety of persons or objects.

Description

Supply Voltage :10-30VDC, AC
Current consumption: 200mA
Response time: 20ms
Transmission mode: relay or transistor
Indication: LED (red: power indicator , Green: Action instructions)
Ambient temperature: Operating -10 to 55
Operating Humidity: 35 to 85% RH
Work object: opaque
Resistance to ambient light: Incandescent 3000Lx, sunlight: 10000Lx
Protection class: LP65
Shell Material: Housing: aluminum alloy, the front cover: PMMA cover: ABS
Security Level: IEC61496-1/2
Product description:
(1)Stable performance, powerful output, safe and reliable
(2)It is suitable for paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, such as security monitoring, can be reliably protect the safety of persons or objects.
(3)Light curtain protection device emits infrared light, resulting in a protective screens, when the light curtain is blocked, the device emits a blackout signal, control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security.
