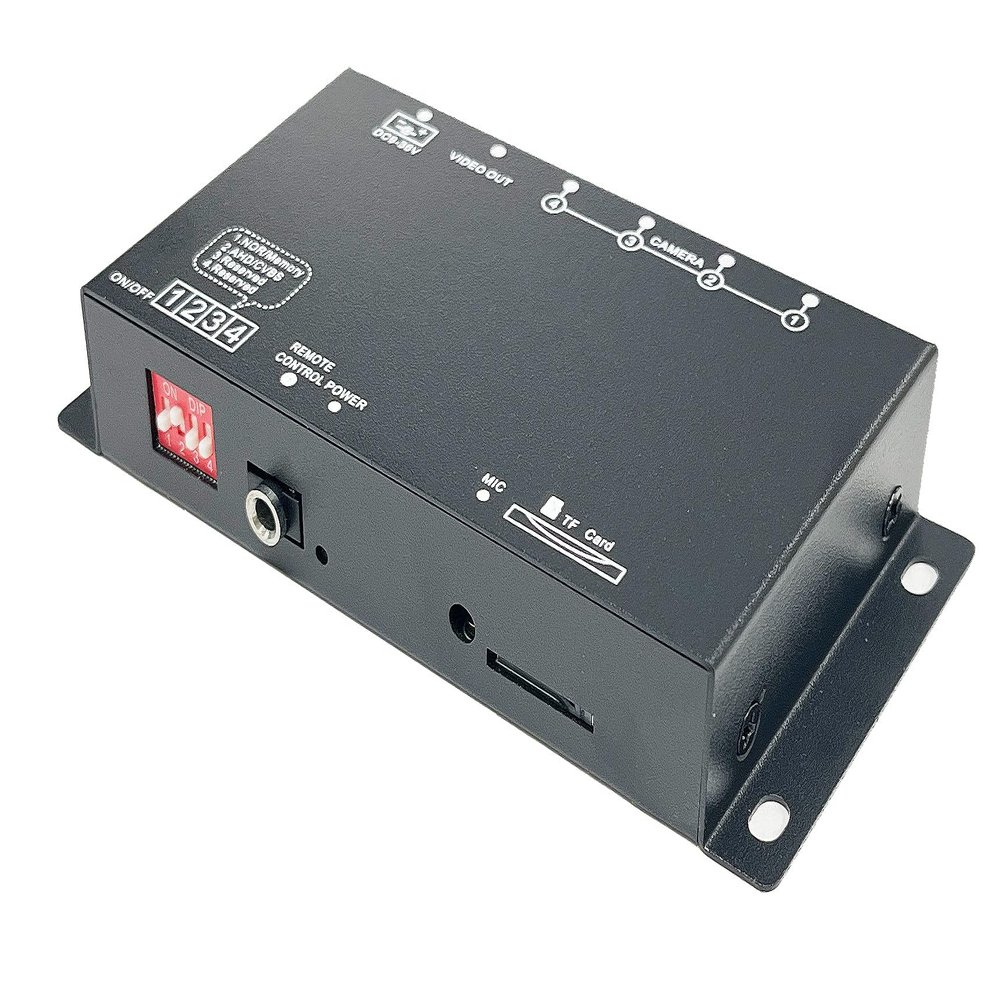

Compact 4-Channel HD/SD Multi-Viewer Split-Screen Video DVR for 1080p 720p AHD CVI TVI CVBS Cameras

Description

• Premium mini 4-channel quad video multi-viewer and video recorder that combines 4 or selected input video feeds into different styles of split-screen views on one display for preview, live monitoring or video recording.
• Built with 4 RCA video inputs and also able to accommodate BNC video inputs and output when using RCA to BNC adapters (not included).
• Each video input can accept 1080p/720p TVI, AHD, CVI type HD surveillance camera inputs and any analog camera or other analog video devices.
• The recorded digital video files are saved in AVI format at 640x480 pixels. 1 hour of recording in AVI format will take about 1.6GB.
• Supports micro SD card and TF card up to 64GB. The recorded video files can be easily played back directly from the mini DVR unit to a TV screen or to a computer screen.
• Easy and fast switching between video inputs and split-screen modes by using the included IR remote. Supports mulit-viewing screen modes including 4-channel split, 3-channel split, 2-channel split, 1-channel full-screen and auto sequence.
• Also great for in-car installation for monitoring the surrounding traffic. Supports auto sequential channel switching function. Built with metal enclosure in compact mini size. Wide range of DC power from 9V to 36V for desktop or in-car operation.

This mini quad video recorder multi-viewer provides 4 HD/SD video inputs with various styles of split-screen views for one screen display and for recording too.
Each video input can accept either TVI, AHD, CVI type HD surveillance camera input or analog BNC/RCA composite video from camera or DVR.
Users can put a micro SD or TF card into this quad video DVR so the recorded videos can be stored into the memory card for playback on TV or computer.
This unit is also very suitable for car monitor use. It can support DC power from 9V to 36V for operation.
4 HD/SD Video Inputs
Unit is built with 4 RCA video inputs with 1 RCA output. It is also able to accommodate BNC video inputs and output when coupling with BNC adapters (not included)
Each video input can accept either 720p/1080p AHD, 720p CVI or TVI type HD surveillance camera input or analog BNC/RCA video from video camera or other analog video devices. [Note]: This DVR can not accept input mix of analog video cameras and AHD/CVI/TVI type HD cameras at the same time.
DVR Recording
This 4-channel video mulitplexer supports video recording when a micro SD or TF card plugged into this DVR for storing the recorded videos into.
The maximum size of micro SD or TF card is 64GB.
Loop Recording Support
This device supports continuous recording even if the memory card reaches full capacity.
Older files are overwritten once the TF card reaches its file size limit so it will always be continuous recording once started.
Real-Time Split Screen Modes
Each split screen mode is easily activated through using the IR remote.
